2020 Kawasaki JET SKI® STX®160 Electrical Equipment Diagram

← All diagrams

Find the part on the Electrical Equipment diagram for your 2020 Kawasaki JET SKI® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

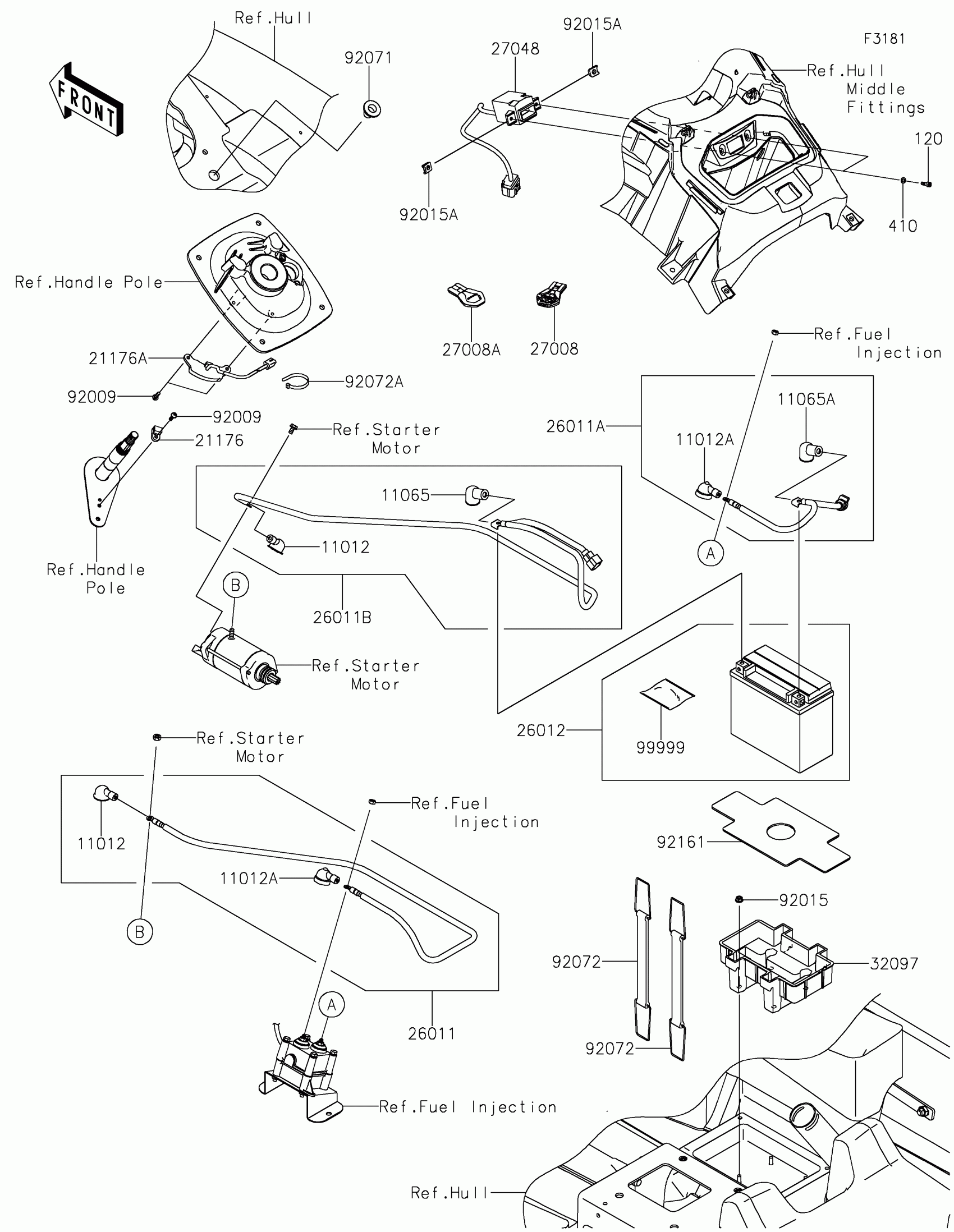

2020 Kawasaki JET SKI® STX®160 Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-3004

1
Out of stock

11012A

CAP,LEAD WIRE

11012-3726

1
Out of stock

11065

CAP,TERMINAL

11065-3729

1
Out of stock

11065A

CAP,TERMINAL

11065-3732

1
Out of stock

120

BOLT-SOCKET,5X16

120R0516

1
Out of stock

21176

SENSOR,MAGNET

21176-3746

1
Out of stock

21176A

SENSOR,HOLE IC

21176-3748

1
Out of stock

26011

WIRE-LEAD,RELAY-STARTER

26011-1882

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1883

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-1884

1
Out of stock

26012

BATTERY,YTX20L-BS,12V 18AH

26012-0787

1
Out of stock

27008

FPO MODE KEY

27008-0566

1
Out of stock

27008A

SLO MODE KEY

27008-3768

1
Out of stock

27048

SWITCH-ASSY

27048-0033

1
Out of stock

32097

CASE-BATTERY

32097-0561

1
Out of stock

410

W-PLAIN-S,5MM

410S0500

1
Out of stock

92009

SCREW,5X16

92009-3868

1
Out of stock

92015

NUT,6MM

92015-3767

1
Out of stock

92015A

NUT,CLIP,5MM

92015-3830

1
Out of stock

92071

GROMMET

92071-3826

1
Out of stock

92072

BAND,340X22

92072-3805

1
Out of stock

92072A

BAND,L=100.08

92072-3882

1
Out of stock

92161

DAMPER,BATTERY CASE

92161-1388

1
Out of stock

99999

BOLT NUT KIT

99999-0311

1
Out of stock
