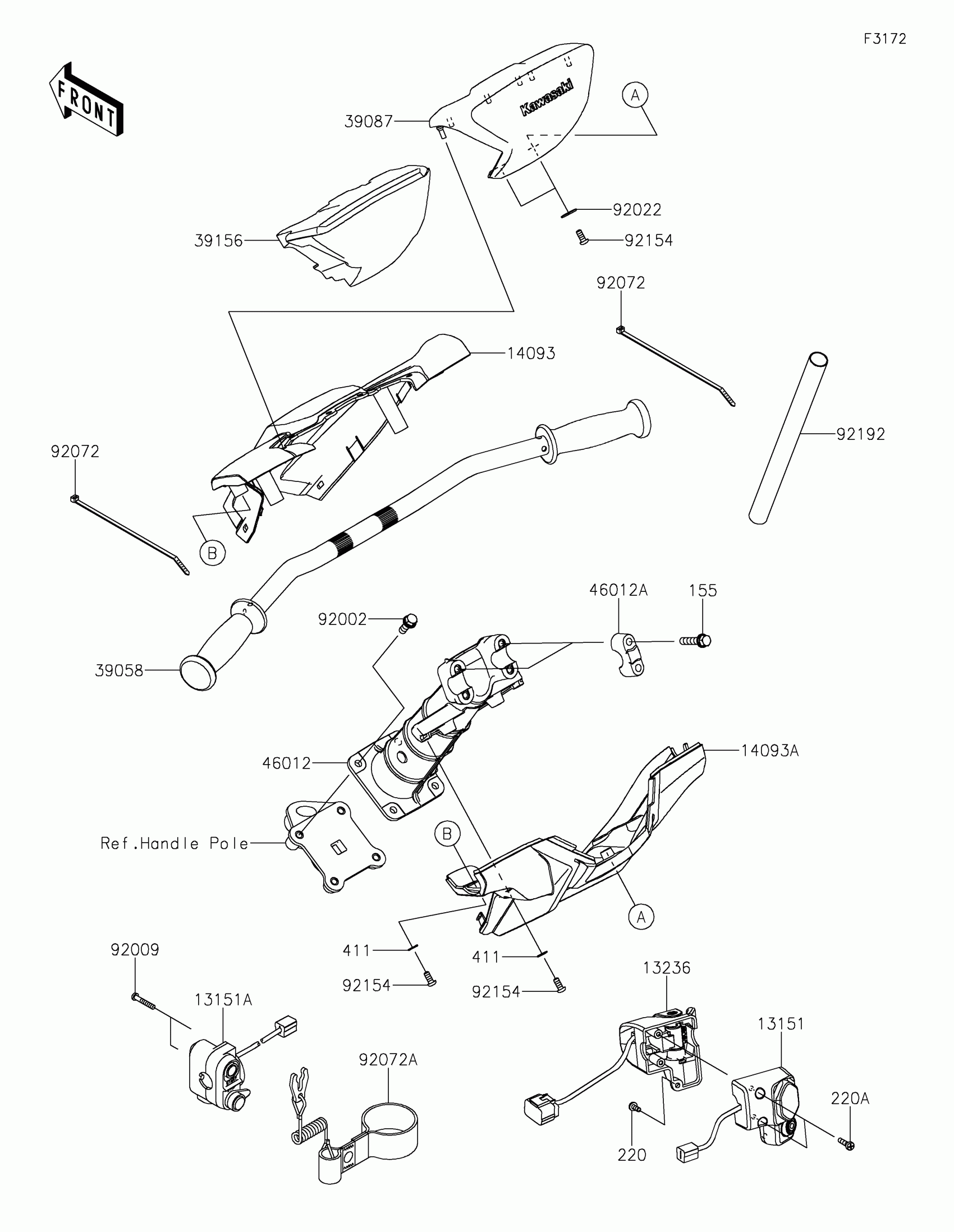

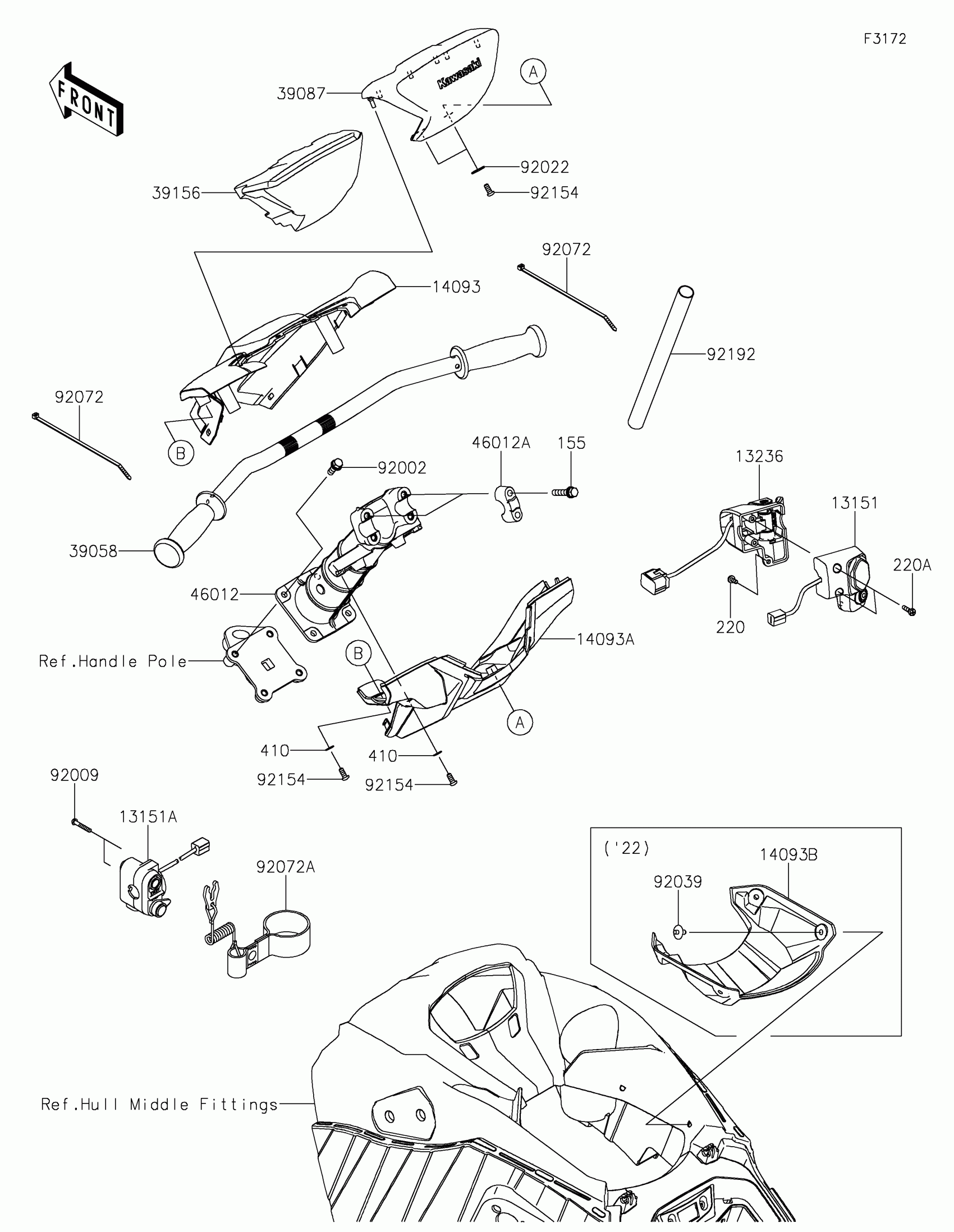

Kawasaki JET SKI® STX®160 Handlebar Diagram

Description

Price

13151

SWITCH-COMP

13151-0586

$181.82

13151A

SWITCH-COMP,STOP&START

13151-3722

$429.00

13236

LEVER-COMP,THROTTLE

13236-0820

$554.79

14093

COVER,HOLDER,FR

14093-0900

$58.36

14093A

COVER,HOLDER,RR

14093-0901

$58.27

155

BOLT-WSP-SMALL,8X40

155R0840

$3.51

220

SCREW-PAN-CROS,5X14

220R0514

$3.29

220A

SCREW-PAN-CROS,5X25

220R0525

$4.23

39058

HANDLE-COMP,F.BLACK

39058-0040-6Z

$188.14

39087

PAD-HANDLE,GRAY

39087-0014-66L

$102.12

39156

PAD,INNER

39156-2457

$30.79

411

WASHER-PLAIN,6MM

411S0600

$1.49

46012

HOLDER-HANDLE

46012-0394

$367.90

46012A

HOLDER-HANDLE,UPP

46012-3720

$15.76

92002

BOLT,8X25

92002-3774

$7.76

92009

SCREW,5X30

92009-3836

$3.75

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92072

BAND,L=188.85

92072-0105

$1.30

92072A

BAND,TETHER SWITCH

92072-3809

$58.43

92154

BOLT,SOCKET,6X14

92154-3988

$1.05

92192

TUBE,35X37X200

92192-1990

$8.44
