2020 Kawasaki JET SKI® STX®160 Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 2020 Kawasaki JET SKI® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

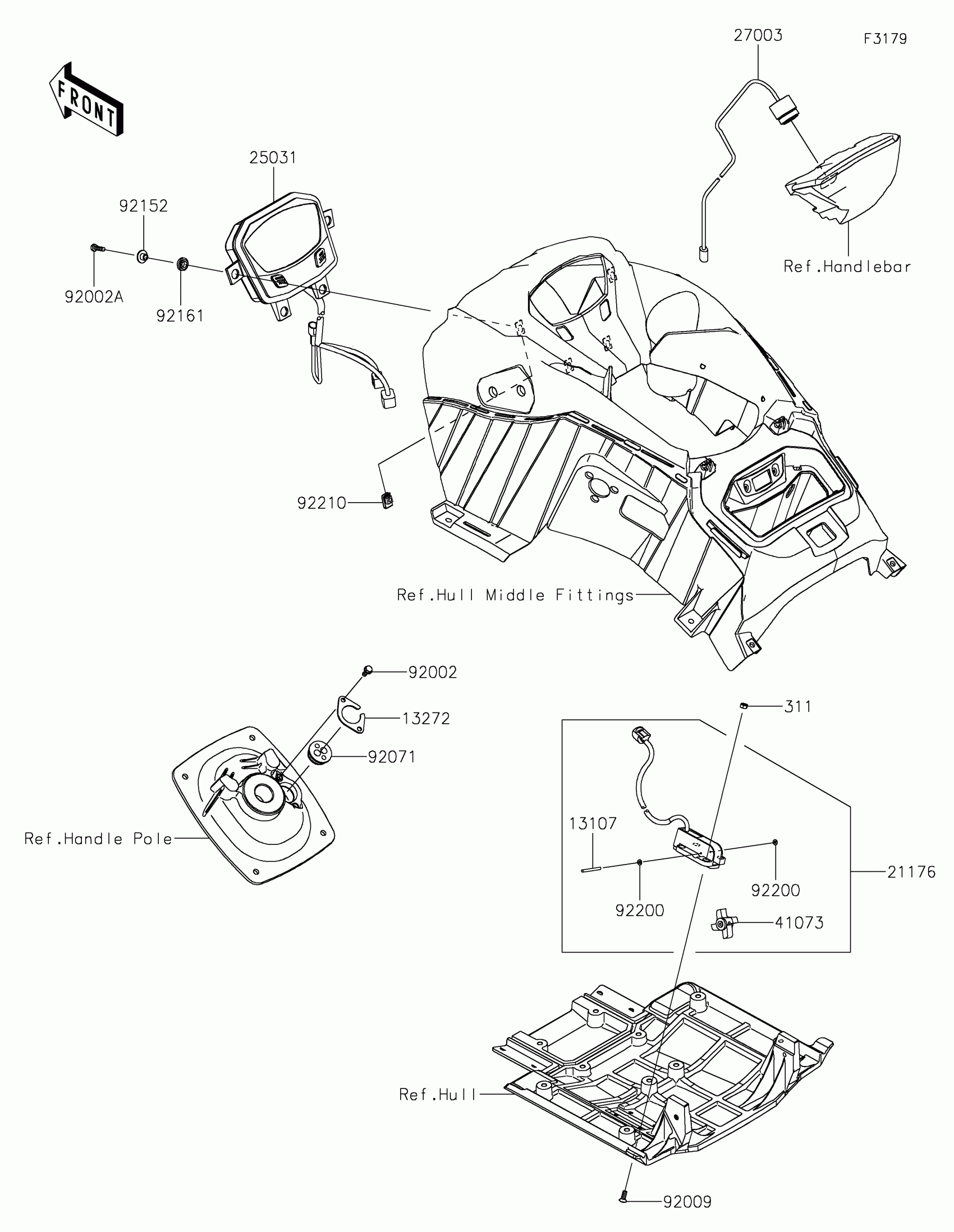

2020 Kawasaki JET SKI® STX®160 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT

13107-3807

1
Out of stock

13272

PLATE

13272-3729

1

$13.61

In stock

21176

SENSOR,SPEED

21176-3775

1
Out of stock

25031

METER-ASSY

25031-0859

1
Out of stock

27003

HORN

27003-3706

1
Out of stock

311

NUT-HEX,6MM

311R0600

1
Out of stock

41073

WHEEL-ASSY,PADDLE

41073-3701

1
Out of stock

92002

BOLT,6X16

92002-3728

1
Out of stock

92002A

BOLT,6X20

92002-3755

1
Out of stock

92009

SCREW,6X16

92009-3703

1
Out of stock

92071

GROMMET,HARNESS

92071-3790

1
Out of stock

92152

COLLAR

92152-1740

1
Out of stock

92161

DAMPER

92161-0117

1
Out of stock

92200

WASHER

92200-3805

1
Out of stock

92210

NUT,6MM

92210-3768

1
Out of stock
