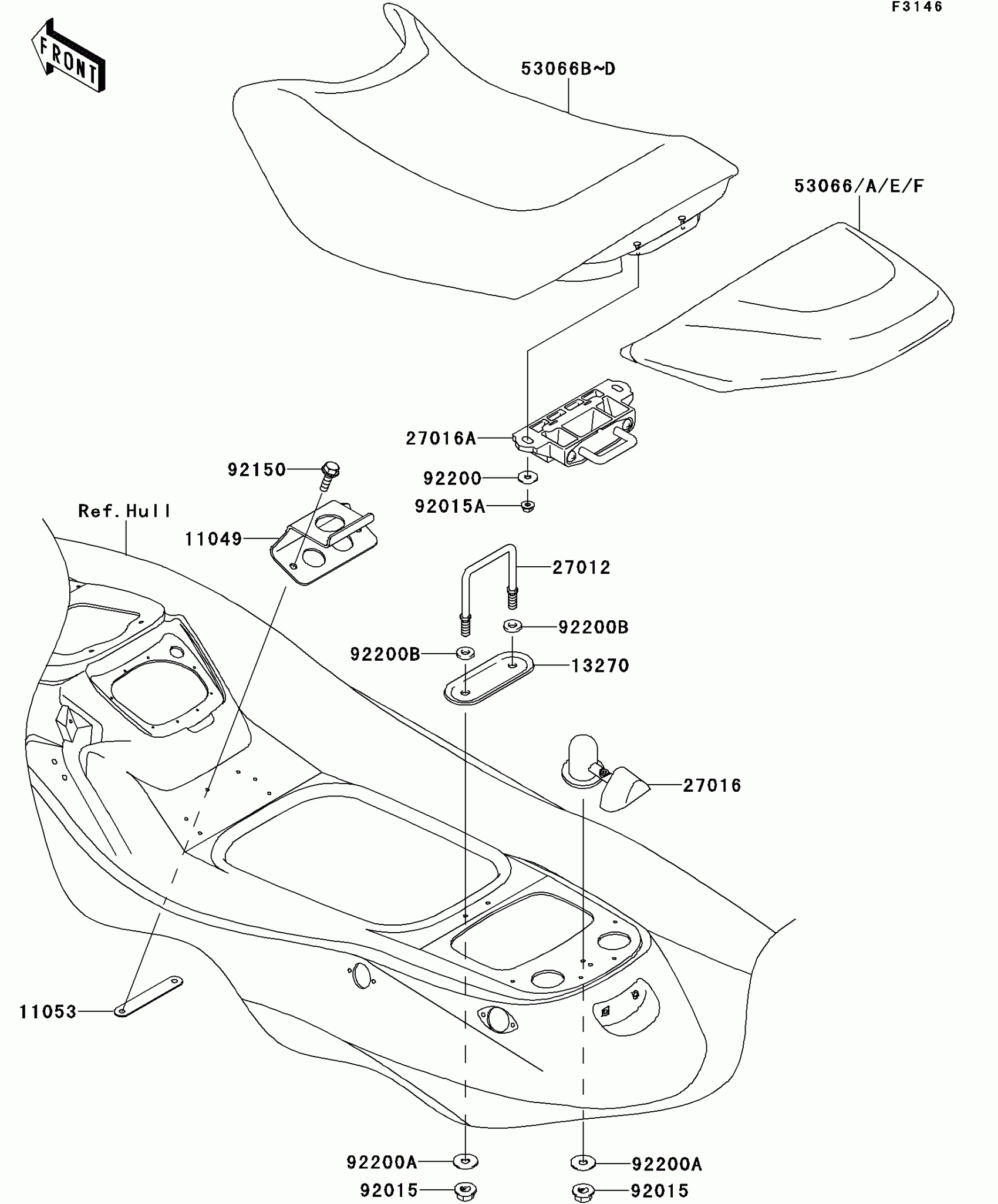

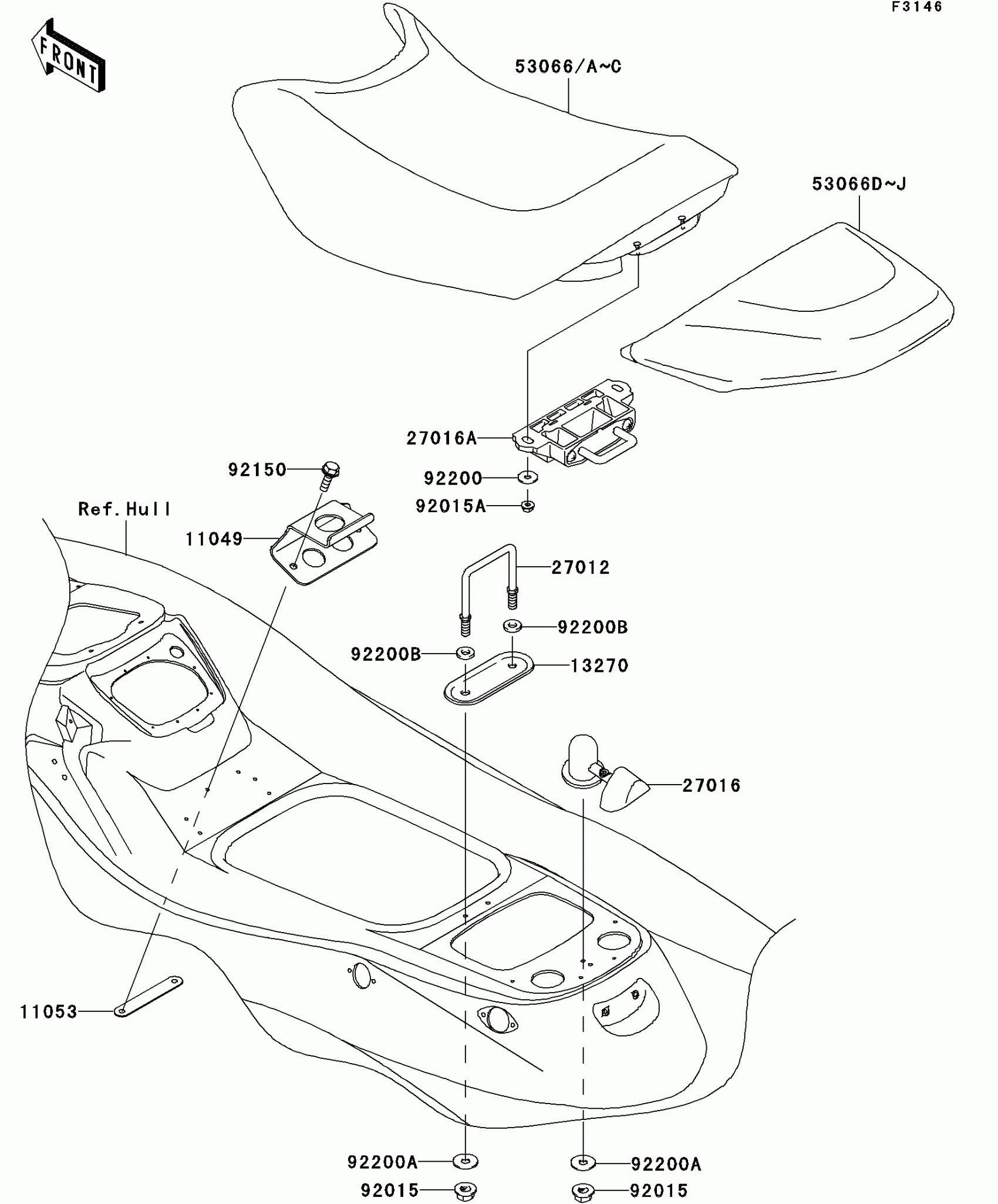

Find the part on the Seat diagram for your 2010 Kawasaki Jet Ski® STX-15F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Jet Ski® STX-15F Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11049

BRACKET,SEAT

11049-3735

1
Out of stock

11053

BRACKET

11053-3785

1

$12.75

In stock

13270

1

$9.03

In stock

27012

HOOK,FRONT SEAT LOCK

27012-3858

1
Out of stock

27016

LOCK-ASSY,SEAT,F.BLACK

27016-3744-6Z

1
Out of stock

27016A

LOCK-ASSY,FRONT SEAT

27016-3747

1
Out of stock

53066

SEAT-ASSY,FR,BLACK

53066-3709-MA

1
Out of stock

53066B

SEAT-ASSY,FR,P.SILVER

53066-3709-12N

1
Out of stock

53066H

SEAT-ASSY,RR,P.SILVER

53066-3728-12N

1
Out of stock

53066I

SEAT-ASSY,RR,BLUE

53066-3728-12U

1
Out of stock

53066J

SEAT-ASSY,RR,S.RED

53066-3728-309

1
Out of stock

92015

NUT,FLANGED,8MM

92015-3709

1
Out of stock

92015A

NUT,6MM

92015-3767

1
Out of stock

92150

BOLT,6X18

92150-3729

1
Out of stock

92200

WASHER,6.5X20X1.5

92200-3715

1
Out of stock

92200A

WASHER,8.5X25X1.5

92200-3717

1
Out of stock

92200B

WASHER,8.5X18X3

92200-3761

1
Out of stock
