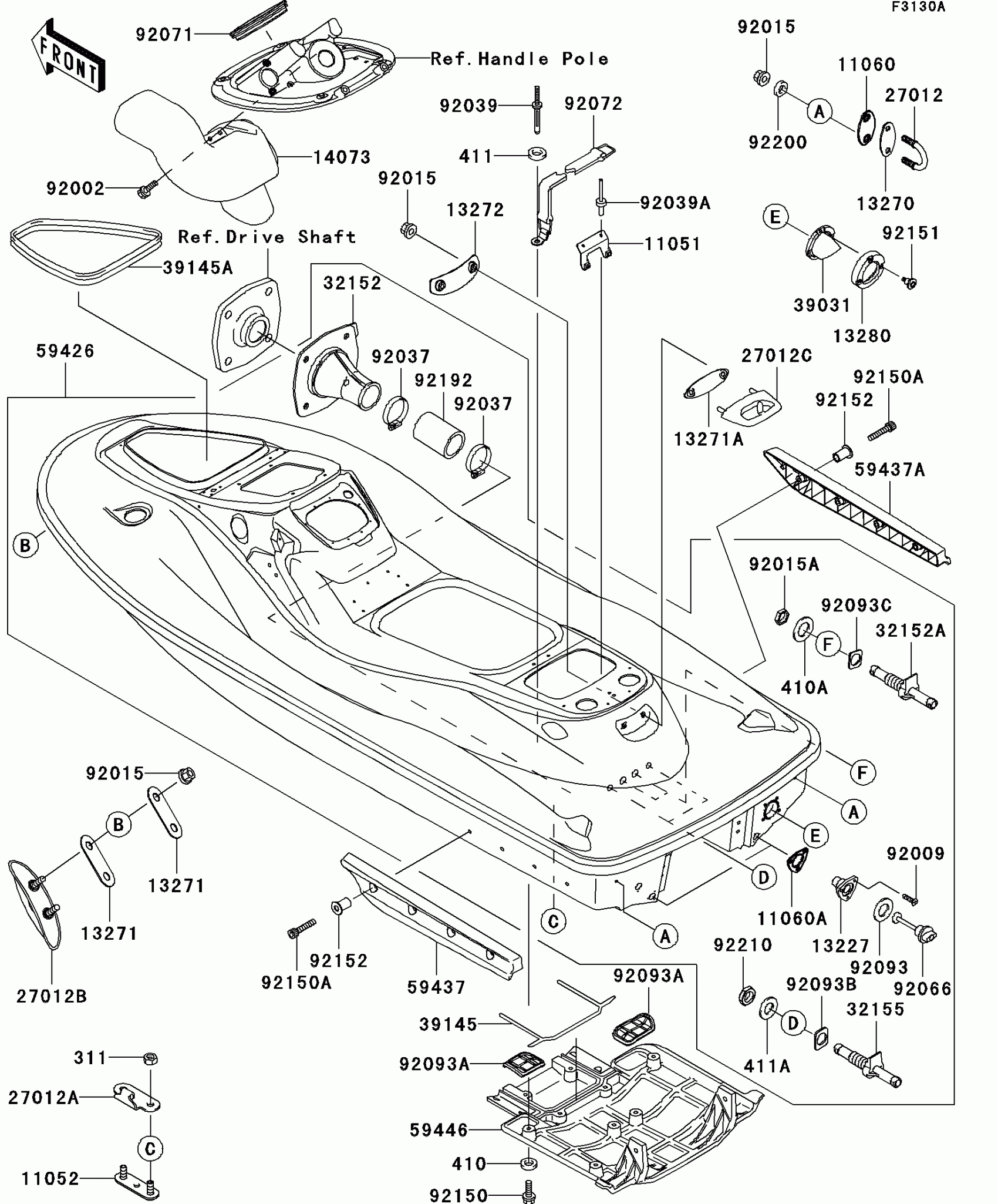

Kawasaki Jet Ski® STX-15F Hull(A9F/AAF) Diagram

#

Description
Price

11051

BRACKET,BREATHER-BILGE

11051-3802

$11.97

11052

BRACKET,RR DUCT

11052-3712

$8.80

11060

GASKET,U HOOK,RR

11060-3800

$5.41

11060A

GASKET,DRAIN PLUG

11060-3801

$4.96

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$6.08

13270

PLATE

13270-3860

$8.20

13271

PLATE

13271-3724

$3.85

13271A

PLATE

13271-3889

$11.44

13272

PLATE,REAR TOWING HOOK

13272-3702

$41.55

13280

HOLDER,EXHAUST VALVE

13280-3718

$25.92

14073

DUCT

14073-3801

$46.22

27012

HOOK

27012-3797

$32.91

27012A

HOOK

27012-3816

$8.93

27012B

HOOK,BOW,F.BLACK

27012-3822-6Z

$39.37

27012C

HOOK,REAR TOWING,F.BLACK

27012-3836-6Z

$127.47

32152

PIPE,DRIVE SHAFT

32152-3703

$47.25

32152A

PIPE

32152-3749

$5.39

32155

PIPE,COOLING

32155-3702

$6.90

39031

CAP-END

39031-3704

$41.65

39145

TRIM-SEAL,JET PUMP COVER

39145-3768

$30.81

39145A

TRIM-SEAL,L=1412

39145-3787

$111.39

59426

HULL-COMP,J.WHITE

59426-3970-8C

Unavailable

59437

STABILIZER,LH,F.BLACK

59437-3743-6Z

Unavailable

59437A

STABILIZER,RH,F.BLACK

59437-3744-6Z

Unavailable

59446

COVER-JET PUMP

59446-3758

Unavailable

92002

BOLT,6X20

92002-3755

$3.57

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92015

NUT,FLANGED,8MM

92015-3709

$3.85

92015A

NUT,20MM

92015-3738

$7.22

92037

CLAMP

92037-3009

$3.25

92039

RIVET

92039-3741

$1.23

92039A

RIVET

92039-3755

$5.71

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$13.20

92071

GROMMET

92071-3812

$16.97

92072

BAND,314X18

92072-3814

$16.78

92093

SEAL

92093-3720

$2.75

92093A

SEAL

92093-3765

$13.53

92093B

SEAL

92093-3783

$3.58

92093C

SEAL

92093-3784

$2.97

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,SOCKET,6X30

92150-3822

$3.29

92151

BOLT,SOCKET,M6,SHOULDER

92151-3746

$12.00

92152

COLLAR

92152-3715

$6.39

92192

TUBE,39X51X90

92192-3845

$12.58

92200

WASHER

92200-3779

$4.66

92210

NUT

92210-3707

$4.53

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

410A

WASHER-PLAIN-SMALL

410S2000

$5.46

411

WASHER-PLAIN,5MM

411S0500

$0.78

411A

WASHER-PLAIN

411S1600

$5.17
