2010 Kawasaki Jet Ski® STX-15F Bilge System Diagram

← All diagrams

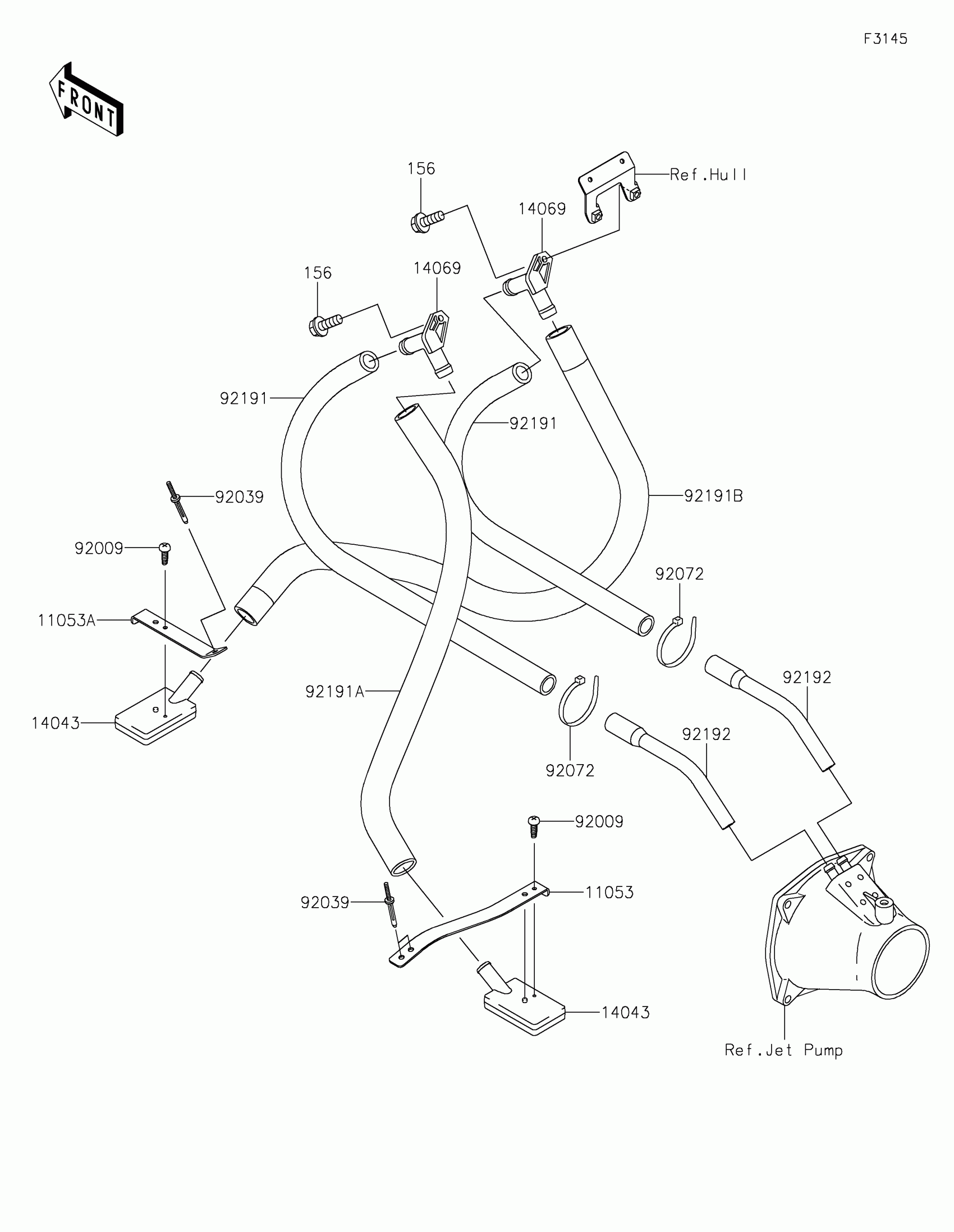

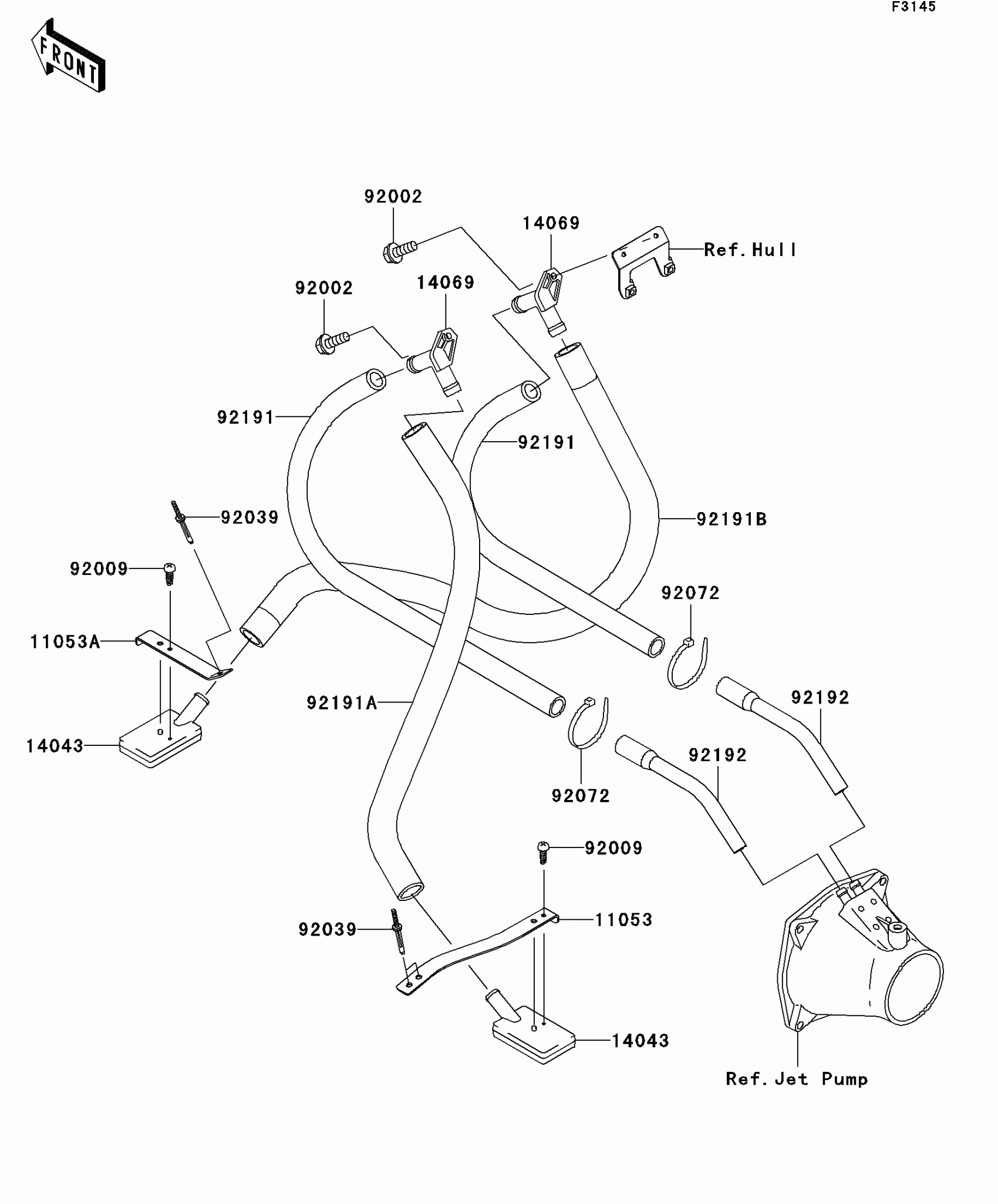

Find the part on the Bilge System diagram for your 2010 Kawasaki Jet Ski® STX-15F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Jet Ski® STX-15F Bilge System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,RR,LH

11053-3744

1

$15.36

In stock

11053A

BRACKET,FR,CNT

11053-3745

1

$7.73

In stock

14043

FILTER

14043-3711

1

$5.53

In stock

14069

BREATHER

14069-3708

1

$7.53

In stock

92002

BOLT,6X16

92002-3728

1
Out of stock

92009

SCREW,TAPPING,4X14

92009-3762

1
Out of stock

92039

RIVET

92039-3753

1
Out of stock

92072

BAND,L=188.85

92072-0105

1
Out of stock

92191

TUBE,BREATHER-HULL

92191-3988

1
Out of stock

92191A

TUBE,FILTER-BREATHER

92191-3989

1
Out of stock

92191B

TUBE,FILTER-BREATHER

92191-3990

1
Out of stock

92192

TUBE,HULL-NOZZLE

92192-3843

1
Out of stock
