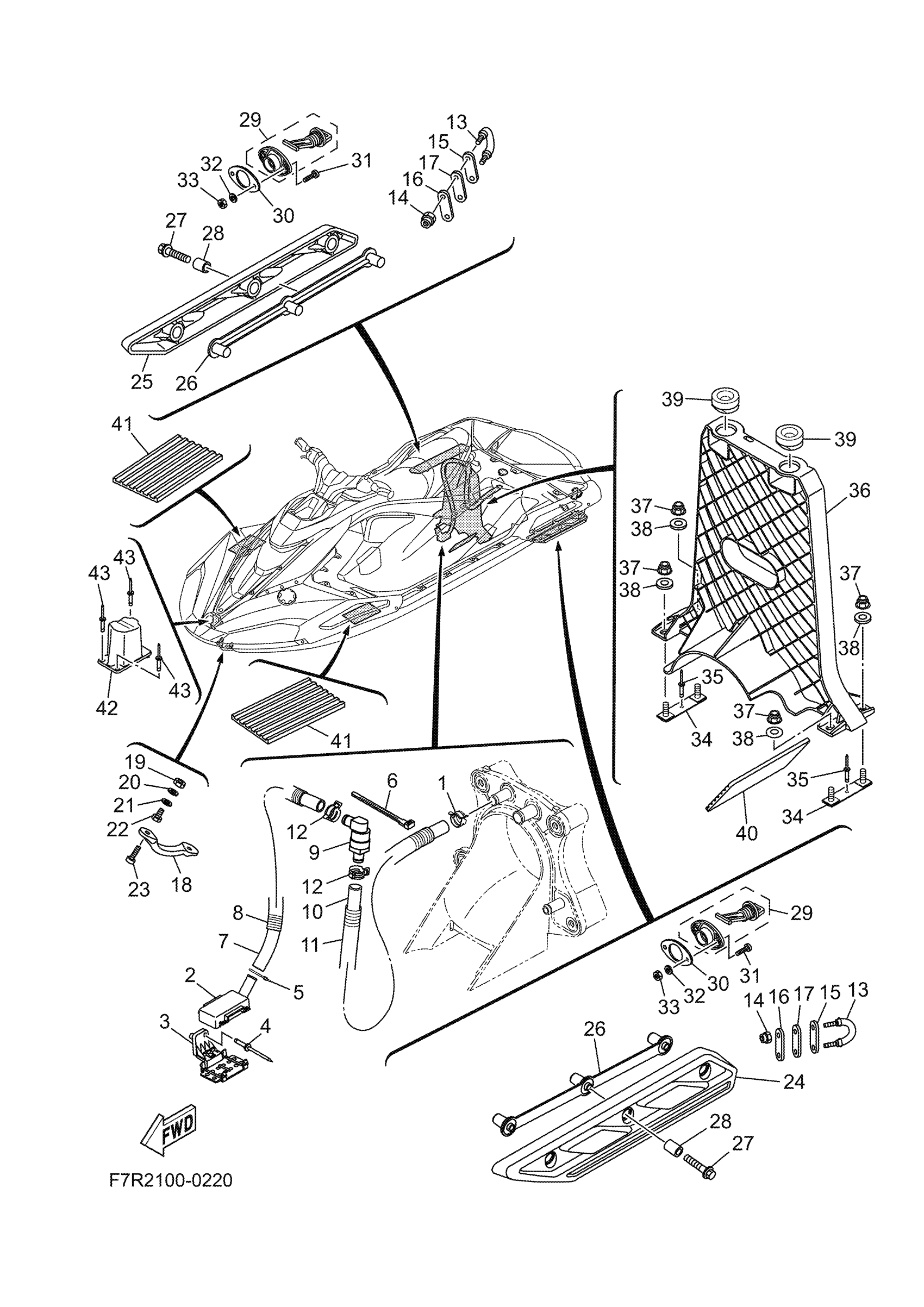

Yamaha JB1050FB (JETBLASTER) F7R2 2025 HULL & DECK Diagram

#

Description
Price

1

CLIP

90467-190A2-00

$3.18

2

STRAINER, BILGE

F5P-U761D-00-00

Unavailable

3

BRACKET

F5P-U7698-00-00

Unavailable

4

RIVET, BLIND

90267-489U8-00

$0.99

5

CLAMP

90465-10098-00

$1.68

6

BAND

90601-200U2-00

$3.16

7

HOSE

F5P-U784C-00-00

Unavailable

8

TUBE

F3Y-U773D-10-00

$1.82

9

JOINT, HOSE

68N-5112T-00-00

$48.96

10

HOSE

F5P-U784C-00-00

Unavailable

11

TUBE

F3Y-U773D-10-00

$1.82

12

CLIP

90467-190A2-00

$3.18

13

STERN EYE

F2N-U1628-10-00

$10.59

14

NUT, NYLON (6J8)

95780-08300-00

$10.55

15

PLATE A

GP7-U4953-10-00

$3.52

16

PLATE A

GP7-U4953-10-00

$3.52

17

PACKING

F1B-U1653-03-00

Unavailable

18

BOW EYE 1

F1K-61624-00-00

$42.60

19

NUT.HEX.(COARS)

99780-12600-00

$2.80

20

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

21

WASHER

F0X-61637-00-00

$1.29

22

NUT

F0X-61652-01-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

24

STABILIZER LH

F3Y-U883N-00-00

$22.71

25

STABILIZER RH

F3Y-U883P-00-00

$22.71

26

BRACKET,STABILIZER

F3Y-U883T-00-00

$19.68

27

BOLT,WASHER BASED

90105-088F9-00

$2.91

28

SPACER

F2N-U8169-10-00

$1.15

29

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

30

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

31

SCREW, PAN HEAD

9788R-05025-00

$2.52

32

WASHER

9299R-05200-00

$3.16

33

NUT, FLANGE

9572R-05300-00

$1.43

34

BRACKET

F1K-U826C-03-00

$12.86

35

RIVET (EU0)

90267-48938-00

$5.00

36

FRAME COMP. 2

F5P-U8702-00-00

Unavailable

37

NUT, LOCK

F3Y-U142L-00-00

$2.52

38

WASHER

9299R-08200-00

Unavailable

39

GROMMET

J0P-F4742-00-00

Unavailable

40

PAD, BATTERY

F1S-U8221-00-00

$2.75

41

PAD, BATTERY

F1S-U8221-00-00

$2.75

42

PAD, LOCK

F5P-U5545-00-00

Unavailable

43

RIVET, BLIND

90267-489U2-00

$1.43
