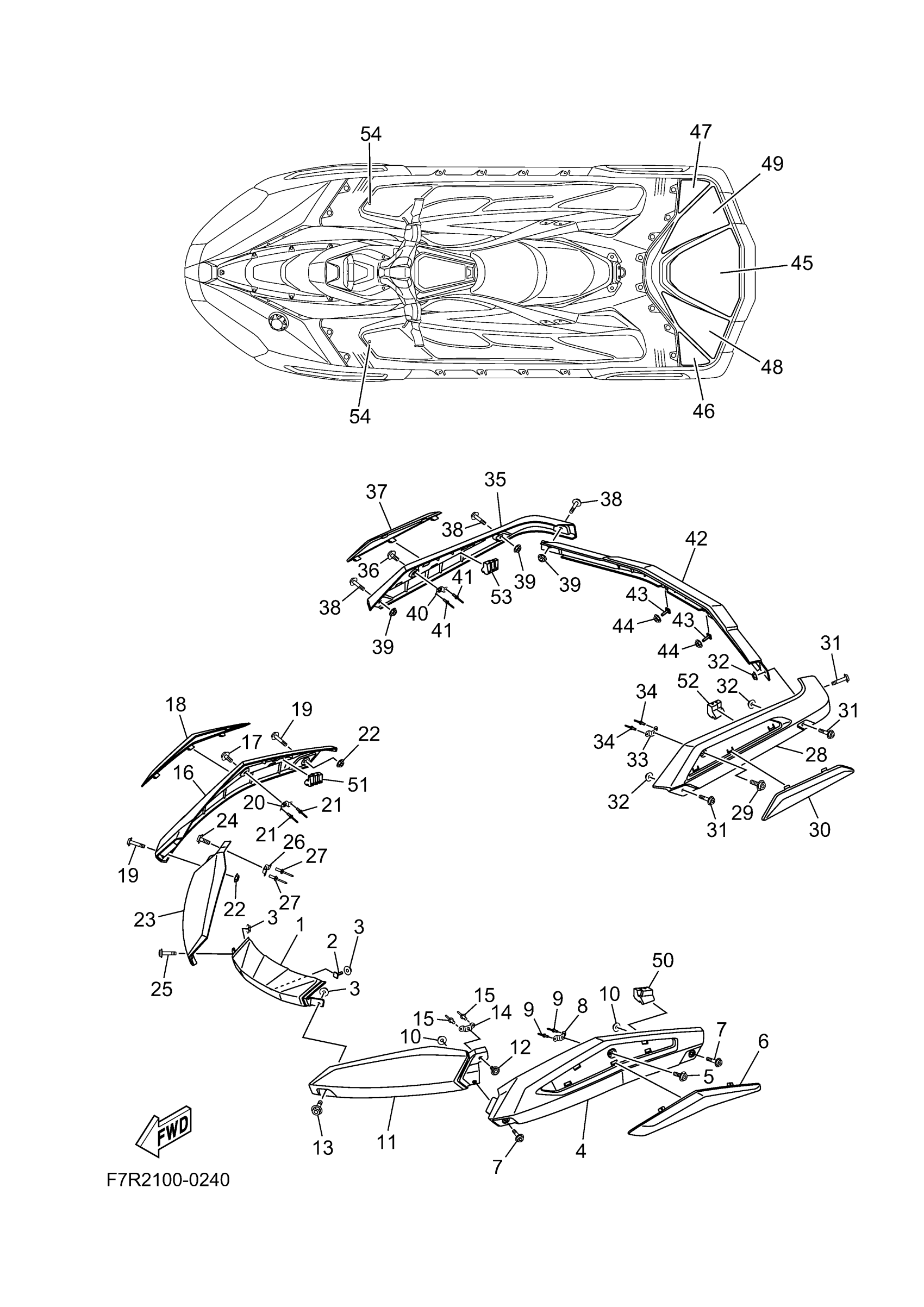

Yamaha JB1050FB (JETBLASTER) F7R2 2025 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F5P-U2511-00-00

Unavailable

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUARD,GUNWALE 1

F5P-U256C-00-00

Unavailable

5

SCREW

F7K-U8198-00-00

$1.21

6

CORE, GUNWALE 1

F5P-U2535-30-00

Unavailable

7

SCREW

F5G-U6829-09-00

Unavailable

8

BRACKET

F3X-U4949-00-00

$2.52

9

RIVET, BLIND

90267-489U6-00

$1.37

10

NUT, LOCK

F2N-U142L-00-00

$1.00

11

JOINT, GUNWALE LH

F5P-U252E-00-00

Unavailable

12

SCREW

F7K-U8198-00-00

$1.21

13

SCREW

F5G-U6829-09-00

Unavailable

14

BRACKET

F3X-U4949-00-00

$2.52

15

RIVET, BLIND

90267-489U6-00

$1.37

16

GUARD,GUNWALE 2

F5P-U256D-00-00

Unavailable

17

SCREW

F7K-U8198-00-00

$1.21

18

CORE, GUNWALE 2

F5P-U2536-30-00

Unavailable

19

SCREW

F5G-U6829-09-00

Unavailable

20

BRACKET

F3X-U4949-00-00

$2.52

21

RIVET, BLIND

90267-489U6-00

$1.37

22

NUT, LOCK

F2N-U142L-00-00

$1.00

23

JOINT, GUNWALE RH

F5P-U252F-00-00

Unavailable

24

SCREW

F7K-U8198-00-00

$1.21

25

SCREW

F5G-U6829-09-00

Unavailable

26

BRACKET

F3X-U4949-00-00

$2.52

27

RIVET, BLIND

90267-489U6-00

$1.37

28

GUNWALE, STERN 1

F5P-U251D-00-00

Unavailable

29

SCREW

F7K-U8198-00-00

$1.21

30

CORE, GUNWALE

F5P-U2537-30-00

Unavailable

31

SCREW

F5G-U6829-09-00

Unavailable

32

NUT, LOCK

F2N-U142L-00-00

$1.00

33

BRACKET

F3X-U4949-00-00

$2.52

34

RIVET, BLIND

90267-489U6-00

$1.37

35

GUNWALE, STERN 2

F5P-U251E-00-00

Unavailable

36

SCREW

F7K-U8198-00-00

$1.21

37

CORE, GUNWALE

F5P-U2538-30-00

Unavailable

38

SCREW

F5G-U6829-09-00

Unavailable

39

NUT, LOCK

F2N-U142L-00-00

$1.00

40

BRACKET

F3X-U4949-00-00

$2.52

41

RIVET, BLIND

90267-489U6-00

$1.37

42

COVER, GUNWALE 1

F5P-U252C-00-00

Unavailable

43

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

44

NUT, LOCK

F2N-U142L-00-00

$1.00

45

MAT, UPPER

F7R-U3581-00-00

Unavailable

46

MAT, STEP 5

F7R-U351N-00-00

Unavailable

47

MAT, STEP 6

F7R-U351P-00-00

Unavailable

48

MAT, STEP 7

F7R-U351R-00-00

Unavailable

49

MAT, STEP 8

F7R-U351S-00-00

Unavailable

50

PLUG 1

F5P-UM8U0-00-00

Unavailable

51

PLUG 2

F5P-UM8U1-00-00

Unavailable

52

PLUG 3

F5P-UM8U2-00-00

Unavailable

53

PLUG 4

F5P-UM8U3-00-00

Unavailable

54

PLUG

F5P-U358B-00-00

Unavailable
