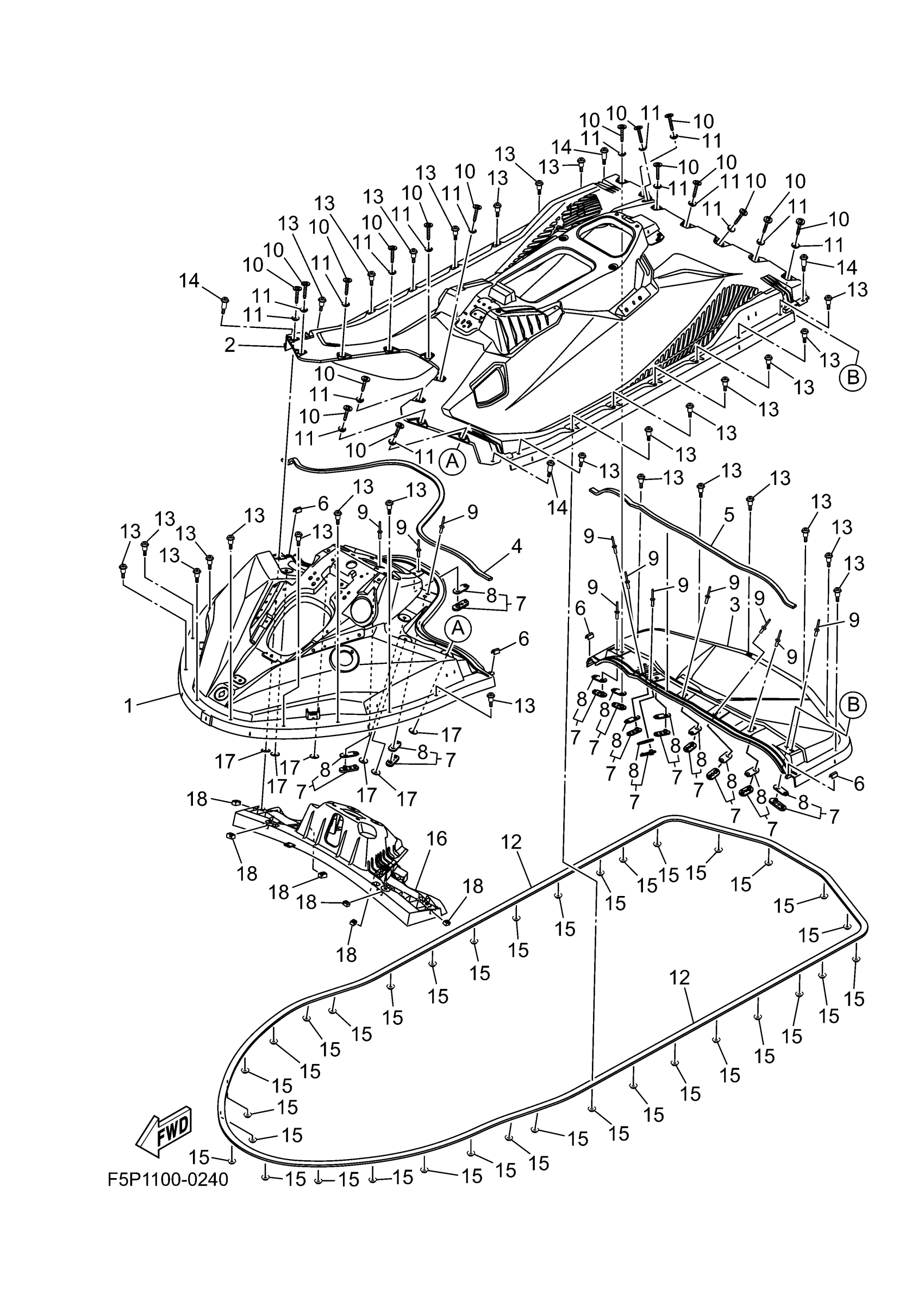

Yamaha JB1050FB (JETBLASTER) F7R2 2025 DECK 1 Diagram

#

Description

Price

1

BOW DECK COMP.

F5P-U5207-00-00

Unavailable

2

MIDDLE DECK

F5P-U89K1-00-00

Unavailable

3

REAR DECK

F5P-U89C1-00-00

Unavailable

4

SEAL,1

F5P-U884B-00-00

Unavailable

5

SEAL,2

F5P-U884C-00-00

Unavailable

6

PACKING, SEAL

F5P-U7747-01-00

Unavailable

7

PLATE,ASSY

F5P-U411B-00-00

Unavailable

8

. PACKING 9

F5P-U266H-01-00

Unavailable

9

RIVET 1

F4P-U516R-01-00

$4.87

10

BOLT, SPECIAL

F5R-U491K-00-00

Unavailable

11

WASHER, SPECIAL

F5P-U2318-00-00

Unavailable

12

PACKING

F5P-U0132-00-00

Unavailable

13

BOLT, SPECIAL 1

F5P-U723D-00-00

Unavailable

14

BOLT,SPECIAL,2

F5P-U723E-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

FRAME COMP. 1

F5P-U8701-00-00

Unavailable

17

PACKING 4

F5P-U266C-00-00

Unavailable

18

NUT

F3X-U517E-00-00

$1.23
