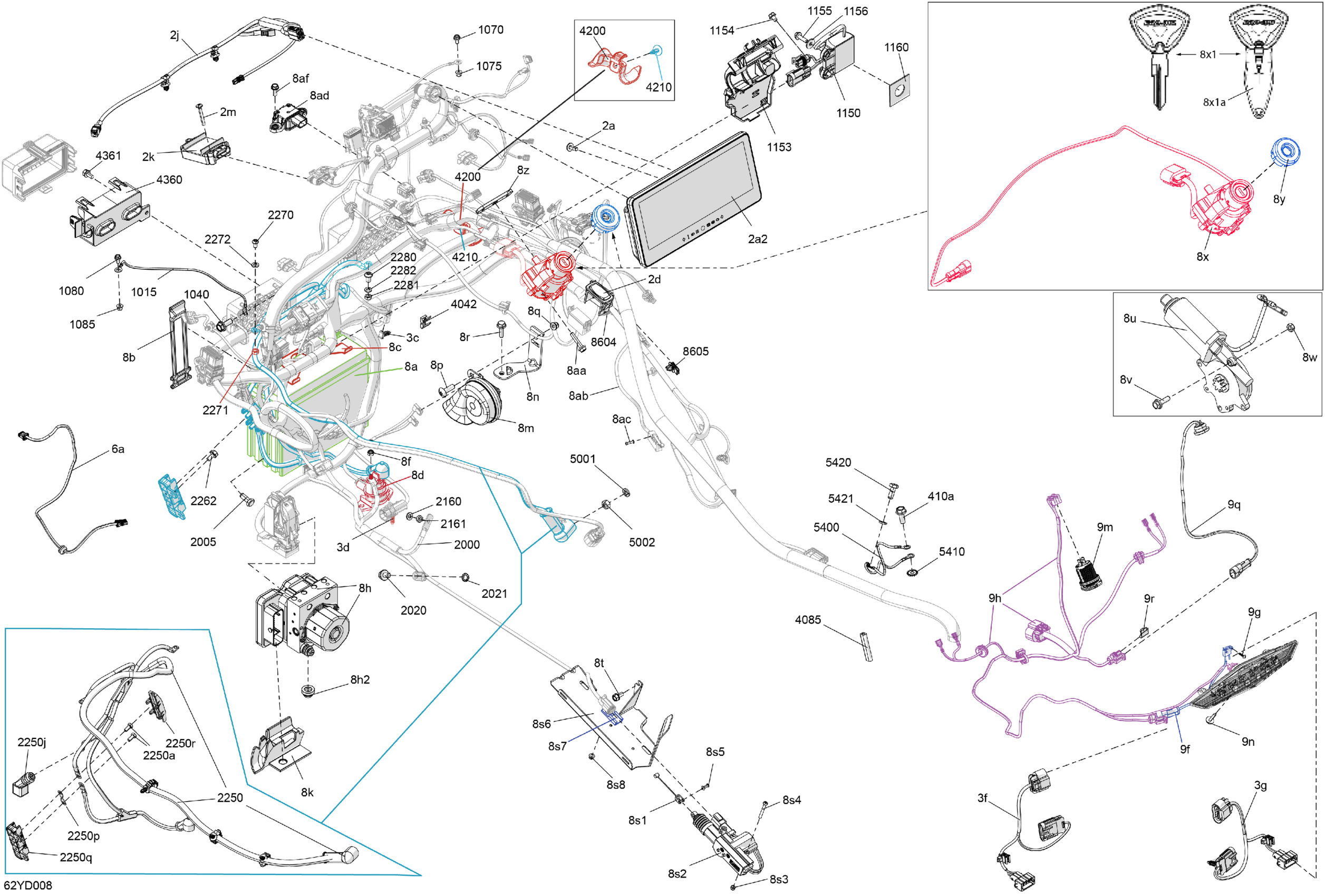

Can-Am Japan - RT LIMITED - Dark Edition - G1RC - LIMITED - Hyper Silver, 2024 Electric - System Diagram

Torx Head Screw M6 X 16

250000717

$2.00

Touch Screen

710008093

$2,049.99

Windshield Switch

710007705

$41.49

Heated Grip Switch | Not Shown

710008999

$41.49

Switch Hole Cap

517306808

$12.01

Heated Seat Switch

710007707

$43.49

Fm1 / Fm1 Dab Antenna | Not Shown

710008731

$121.99

Fm2 Antenna | Not Shown

710008732

$121.99

Phantom Box

710009724

$76.99

External Module GPS

278004172

$189.99

Torx Screw K50 X 35

250001111

$14.49

Flasher Bulb

219800304

$6.66

Flasher Bulb

219800304

$6.66

Heated Grip Switch

710007706

Unavailable

Heated Seat Switch

710007707

$43.49

Connector Holder

710002033

$3.12

Connector Holder

710002033

$3.12

Tailight Harness

710007142

Unavailable

Tailight Harness

710007142

Unavailable

Bulb 12V 10W

219800322

$8.68

Brake Switch | Not Shown

710009604

$49.99

Wiring Harness

710009557

$17.49

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

219800519

$184.30

Battery Bolt Kit | Not Shown

219800542

$7.09

Latch

520000528

$6.40

Battery Holder

710002893

$17.49

Starter Relay

278003012

$40.27

Hex. Elastic Stop Nut M6

232561600

$1.06

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

Shock Damper

710003279

$9.28

VCM Harness Protector

710003996

$2.79

Horn

710004940

$29.49

Horn Support

710005769

$15.99

Torx Truss M8 X 25

250000874

$2.00

Hex. Flange Elastic Nut M8

233281414

$1.31

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

Reverse Cable

710002889

$31.99

Actuator

710011269

$64.99

Elastic Stop Nut M4

232541414

$0.55

Socket Head Screw M4 X 40

205444056

$2.00

Pop Rivet 5/32

390403000

$0.33

Reverse Actuator Support

710005642

$30.99

Clip

270000141

$9.57

Pop Rivet 3/16"

390402400

$0.28

Hex. Flange Screw M6 X 12

210261250

$1.79

Actuator Motor

710007256

$227.99

Hex. Flange Screw M6 X 20

207662054

$0.96

Elastic Stop Nut M6

232561434

$1.78

Ignition Switch | Includes 35b to 35b2

710007316

$296.49

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

Key Sleeve

710003597

$26.49

DESS Antenna

219800373

$60.49

Switch Cover

710009167

$15.99

Switch Support

710001365

$20.99

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

Brake Pressure Switch Ass'y

710001379

$40.27

Pop Rivet

293150150

$1.85

Yaw Rate Sensor

710005658

$158.18

Hex. Flange Screw M6 X 16

210261650

$1.40

Open Detection

710005315

$18.54

Screw-pt.flange Oval Hd.k30 X 12

250000614

$0.54

Upper Rear Box Wiring Harness

710008257

$53.99

USB Outlet

219400510

$43.99

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

Non-fonctional Rear Tail-light

520001785

$121.99

Trunk Light

710001533

$67.99

Clip Bracket Connector (edge)

409210100

$1.94

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Antenna Ground Strap

710009889

$55.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M5 X 10

207551044

$3.88

Flange Elastic Nut M5

233251434

$1.91

Hex. Flange Screw M5 X 10

207551044

$3.88

Flange Elastic Nut M5

233251434

$1.91

Dess Module

710004916

$179.99

Wire Support

710004308

$13.49

Hex. Forming Screw M6 X 10

210261050

$1.63

Hexagonal Head Screw

210262050

$2.00

Flat Washer 6 mm

234062410

$0.73

Rubber Bumper

293830091

$7.37

Pos Cable

710008074

$84.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

Serrated Lock Washer 8 mm

234481608

$1.06

Stainless Flat Washer M6

234061600

$0.28

Elastic Stop Nut M6

232561434

$1.78

Battery Wiring Harness | Includes 2250 to 2250r

710007687

$99.99

Hex. Screw M6 X 14

207161444

$0.55

Protector Cap

710000393

$8.72

Battery Guard

710002945

$12.99

Fuse Holder Support

710008098

$23.99

Fuse Holder Cover

710008154

$43.49

Fuse 80 A

710008102

$14.43

Fuse Holder Support

710008098

$23.99

Fuse Holder Cover

710008154

$43.49

Hex. Flange Screw M6 X 12

210261250

$1.79

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.43

Hex. Nut M6

232061600

$1.04

Lock Washer Helical M6

234161601

$1.06

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.43

Hex. Nut M6

232061600

$1.04

Lock Washer Helical M6

234161601

$1.06

Lock

710001222

$1.93

Trim 1000Mm Long

219704354

$14.30

Harness Holder

710004931

$1.59

Tuflock Phillips Plastic Screw

414745900

$1.49

Fuse Holder Support

710004472

$8.58

Hex. Flange Screw M6 X 12

210261250

$1.79

Lock Washer 8 mm, Stainless

234181601

$0.52

Hex. Nut M8

232081414

$0.69

Tank Cable

710004849

$19.49

Lock Washer Serrated M6

250200041

$1.06

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.81

Washer

250200111

$2.00

Connector Holder

710002033

$3.12

Connector Clamp

293730116

$4.97
