1982 Yamaha IT465 (IT465J) Swing ARM Diagram

← All diagrams

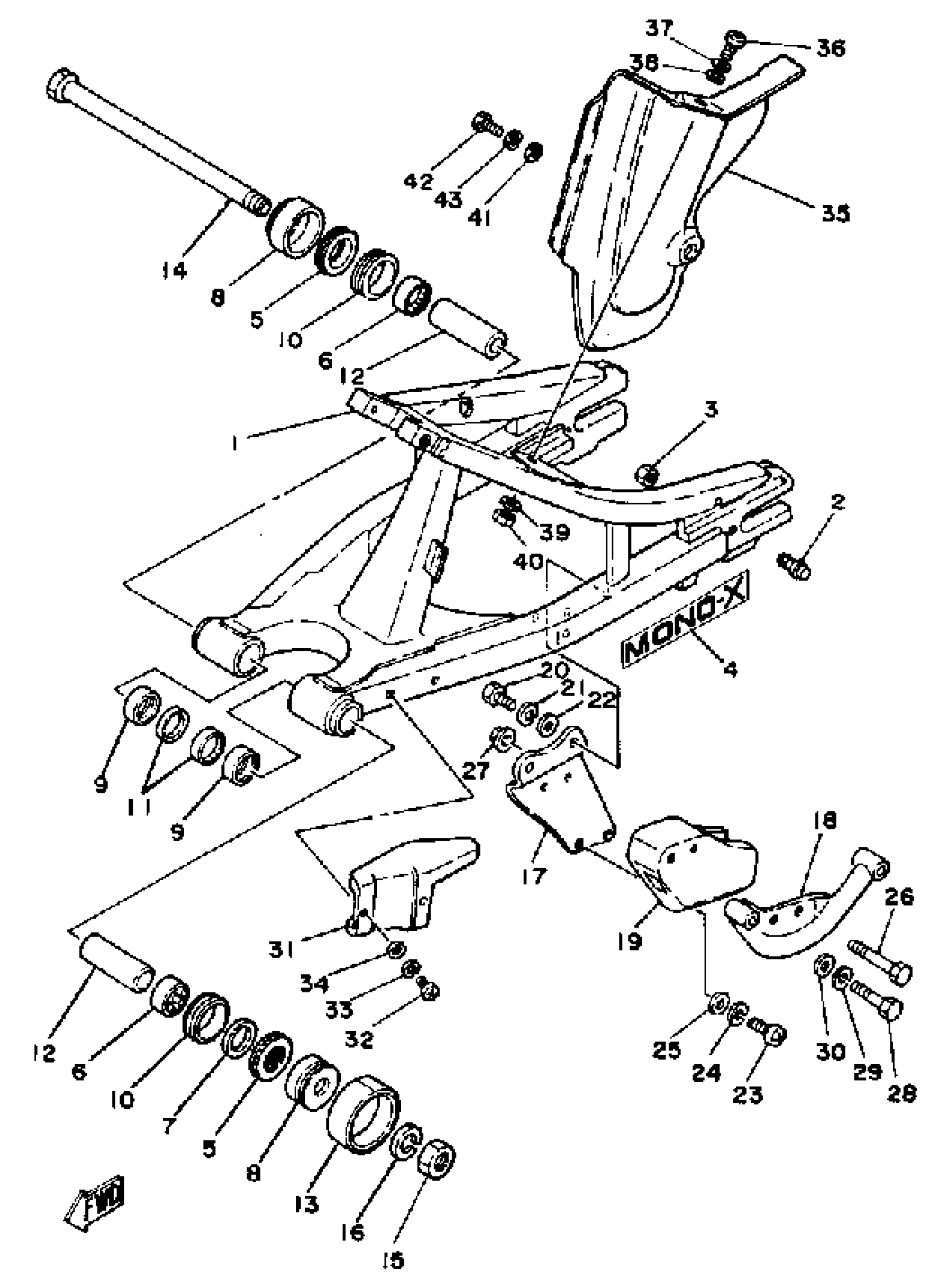

Find the part on the Swing ARM diagram for your 1982 Yamaha IT465 (IT465J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha IT465 (IT465J) Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(4V6-22110-00-35)

1
Out of stock

2

BOLT

90109-08599-00

1
Out of stock

3

NUT, FLANGE

95704-08500-00

1
Out of stock

4

REFLECTOR (250H)

4V4-2218A-00-00

1
Out of stock

5

BEARING, THRUST (3R7)

93342-22208-00

1

$29.03

In stock

6

1

$41.17

In stock

7

WASHER, PLATE

90201-22284-04

1
Out of stock

8

COVER, THRUST2

3R4-22129-00-00

1
Out of stock

9

BUSH, SPEC''L NYLON

90386-22097-00

1
Out of stock

10

OIL SEAL (35X41.5X8-483)

93108-35004-00

1

$12.58

In stock

11

OIL SEAL, SDO-TYPE

93109-22018-00

1
Out of stock

12

BUSH, SOLID (3R4)

90380-16077-00

1

$36.61

In stock

13

SEAL, GUARD

431-22151-03-00

1
Out of stock

14

SHAFT, PIVOT

5X6-22141-01-00

—
Out of stock

15

NUT

90170-16111-00

1
Out of stock

16

WASHER, PLATE (5X6)

90201-160F6-00

—
Out of stock

17

ARM, TENSIONER

2X4-22179-00-00

1
Out of stock

18

GUARD, CHAIN

3R5-22153-00-00

1
Out of stock

19

SUPPORT, CHAIN

2X4-22199-00-00

—

$41.97

In stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

23

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

26

BOLT, HEXAGON

97013-06050-00

—

$1.54

In stock

27

UNAVAILABLE IN PRICE BOOK (95702-06300)

95712-06300-00

1
Out of stock

28

BOLT

97013-08035-00

—

$4.80

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

30

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

31

PROTECTOR, CHAIN

3R4-22147-00-00

—

$33.71

In stock

32

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

33

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

34

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

35

CASE, CHAIN

4V5-22311-00-00

1
Out of stock

36

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

37

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

38

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

39

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

40

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

41

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

42

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

43

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
