1982 Yamaha IT465 (IT465J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Yamaha IT465 (IT465J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

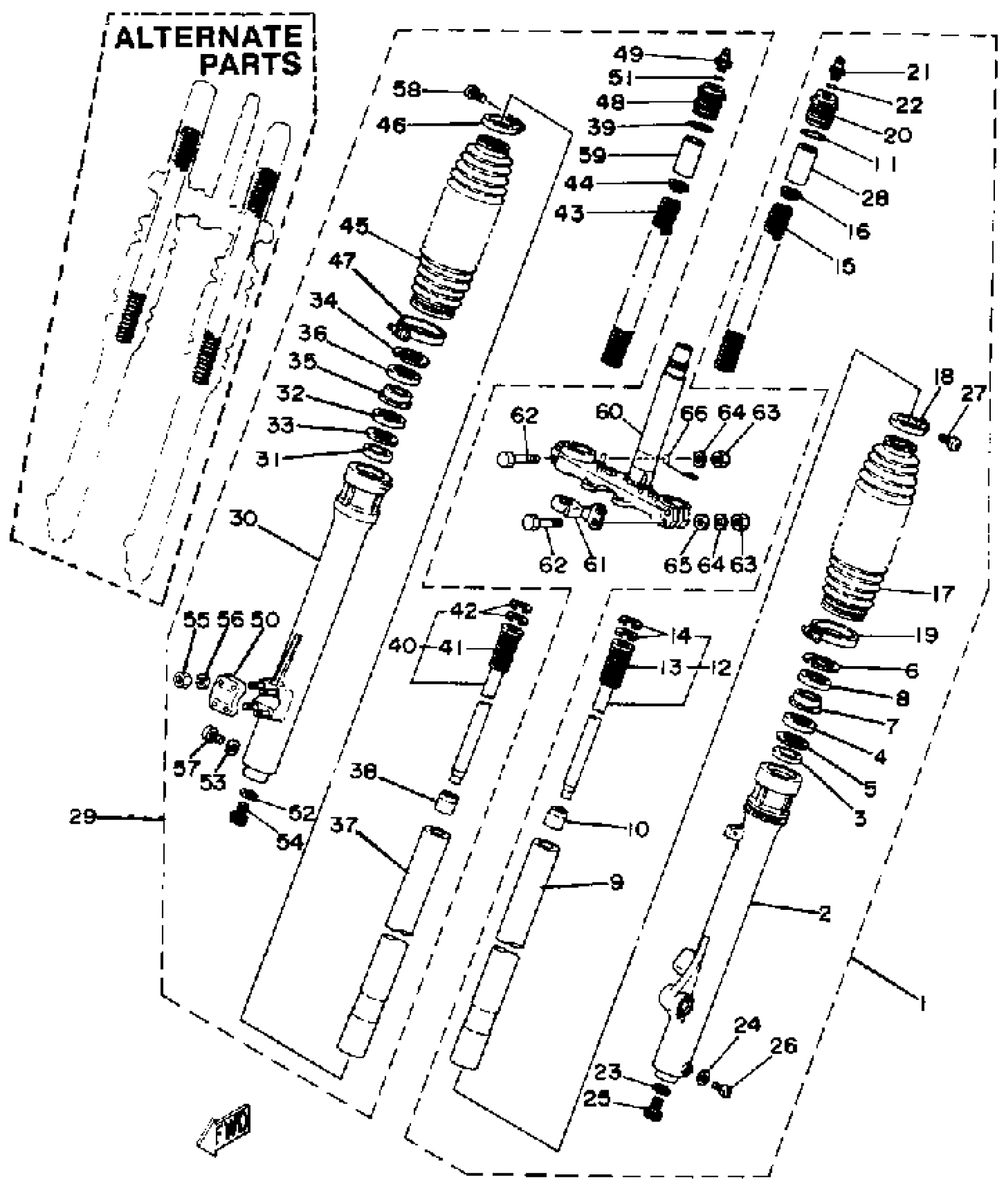

1982 Yamaha IT465 (IT465J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(4V5-23102-L1-00)

1
Out of stock

2

TUBE, OUTER 1

(4V5-23126-L0-00)

1
Out of stock

3

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

4

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

5

WASHER

4V2-23146-L0-00

1
Out of stock

6

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

7

.. SEAL, DUST

3R4-23144-00-00

1
Out of stock

8

.. COVER, DUST SEAL

3R4-23148-00-00

1
Out of stock

9

. INNER TUBE 1

5X4-23110-L0-00

1
Out of stock

10

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

11

O-RING

1W4-23114-L0-00

1

$7.45

In stock

12

CYLINDER, FRTFRK

(4V5-23170-L0-00)

1
Out of stock

13

SPRING, REBOUND

(1W4-23151-L0-00)

1
Out of stock

14

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

1
Out of stock

15

SPRING, FRTFRK SOFT

(4V5-23141-11-00)

1
Out of stock

15

SPRING, FRTFRK HARD (K1=0.339, K2=0.385) (USE SPACER)

4V5-23141-21-00

1
Out of stock

15

SPRING, FRONT FORK

(4V5-23141-L1-00)

1
Out of stock

16

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

17

. BOOT, FRONT FORK

3R4-23191-M0-00

1
Out of stock

18

. BAND

1W4-23192-L0-00

1
Out of stock

19

BAND

1W4-23489-L0-00

1
Out of stock

20

. BOLT, CAP

5X4-23111-L0-00

1
Out of stock

21

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

22

O-RING

3J2-23147-00-00

—
Out of stock

23

GASKET

509-23158-L0-00

—

$14.34

In stock

24

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

25

BOLT

3R4-23181-L0-00

—
Out of stock

26

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

27

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

28

SPACER

4V5-23118-L1-00

1
Out of stock

28

SPACER

4V5-23118-L1-00

1
Out of stock

29

FRONT FORK ASSEMBLY R

(4V5-23103-L1-00)

1
Out of stock

30

TUBE, OUTER 2

(4V5-23136-L0-00)

1
Out of stock

31

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

32

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

33

WASHER

4V2-23146-L0-00

1
Out of stock

34

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

35

.. SEAL, DUST

3R4-23144-00-00

1
Out of stock

36

.. COVER, DUST SEAL

3R4-23148-00-00

1
Out of stock

37

. INNER TUBE 1

5X4-23110-L0-00

1
Out of stock

38

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

39

O-RING

1W4-23114-L0-00

1

$7.45

In stock

40

CYLINDER, FRTFRK

(4V5-23170-L0-00)

1
Out of stock

41

SPRING, REBOUND

(1W4-23151-L0-00)

1
Out of stock

42

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

1
Out of stock

43

SPRING, FRTFRK SOFT

(4V5-23141-11-00)

1
Out of stock

43

SPRING, FRTFRK HARD (K1=0.339, K2=0.385) (USE SPACER)

4V5-23141-21-00

1
Out of stock

43

SPRING, FRONT FORK

(4V5-23141-L1-00)

1
Out of stock

44

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

45

. BOOT, FRONT FORK

3R4-23191-M0-00

1
Out of stock

46

. BAND

1W4-23192-L0-00

1
Out of stock

47

BAND

1W4-23489-L0-00

1
Out of stock

48

. BOLT, CAP

5X4-23111-L0-00

1
Out of stock

49

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

50

HOLDER, AXLE

4V2-23167-L0-00

—
Out of stock

51

O-RING

3J2-23147-00-00

—
Out of stock

52

GASKET

509-23158-L0-00

—

$14.34

In stock

53

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

54

BOLT

3R4-23181-L0-00

—
Out of stock

55

NUT(6TA)

95317-06600-00

—

$2.69

In stock

56

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

57

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

58

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

59

SPACER

4V5-23118-L1-00

1
Out of stock

59

SPACER

4V5-23118-L1-00

1
Out of stock

60

. UNDER BRACKET

4V5-23340-L0-33

1
Out of stock

61

GUIDE, WIRE

3R4-23389-00-00

—
Out of stock

62

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

63

NUT(6L2)

95333-08600-00

—

$3.20

In stock

64

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

65

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

66

GUIDE, CABLE

4V5-23389-00-00

—

$34.42

In stock
