1982 Yamaha IT465 (IT465J) Rear Shocks Diagram

← All diagrams

Find the part on the Rear Shocks diagram for your 1982 Yamaha IT465 (IT465J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

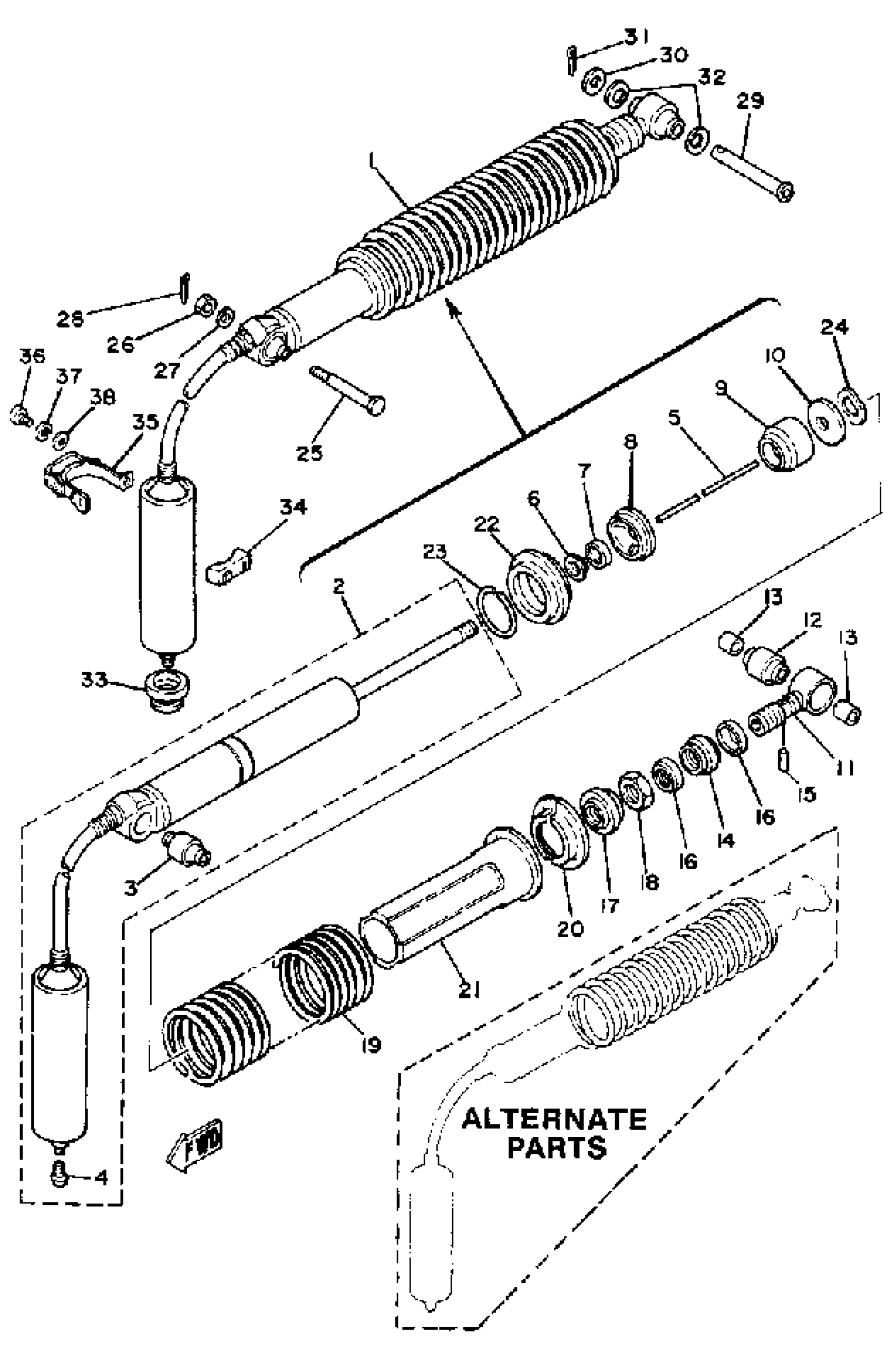

1982 Yamaha IT465 (IT465J) Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY, REAR

(4V6-22210-00-00)

1
Out of stock

2

DAMPER SUB-ASSEMBLY.

(4V6-22401-00-00)

1
Out of stock

3

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

—

$40.54

In stock

4

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

5

ROD, PUSH

(3R4-22489-00-00)

1
Out of stock

6

SEAL,DUST

23X-22475-01-00

1
Out of stock

7

SEAL,DUST

23X-22475-01-00

1
Out of stock

8

. CAP, CASE 001

26A-22472-00-00

1
Out of stock

9

. UNAVAILABLE IN PRICE BOOK

2W-62249-30-00

1
Out of stock

10

. SUPPORT, BUMP STOP

3R4-22228-00-00

1
Out of stock

11

. UPPER BRKT SUB ASSEMBLY

3R4-22409-00-00

1
Out of stock

12

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

—
Out of stock

13

BUSH, SOLID (1M1)

90380-12051-00

1
Out of stock

14

. NUT, ADJUSTING

5X3-22497-00-00

1
Out of stock

15

. PIN, DOWEL

93604-26132-00

1
Out of stock

16

. COVER

3R4-22221-01-00

1
Out of stock

17

. SEAT, SPRING UPPER

3R4-22213-00-00

1
Out of stock

18

NUT, HEXAGON (29L)

90170-20320-00

—
Out of stock

19

SPRING, MXS SOFT

(4V5-22212-10-00)

1
Out of stock

19

. SPRING, MXS HARD

4V5-22212-20-00

1
Out of stock

19

SPRING

(4V6-22212-00-00)

1
Out of stock

20

GUIDE, SPRING 1

3P6-22214-10-00

—
Out of stock

21

. GUIDE, SPRING 2

3R4-22224-00-00

1
Out of stock

22

. SEAT, SPRING LOWER

3R4-22223-00-00

1
Out of stock

23

. CIRCLIP, OUTER

93440-50078-00

1
Out of stock

24

. WASHER, WAVE

90206-14067-00

1
Out of stock

25

BOLT (1M1)

90109-10453-00

—

$15.92

In stock

26

NUT (682)

95380-10700-00

1

$5.78

In stock

27

WASHER (7A9)

90201-100F7-00

—

$6.38

In stock

28

PIN, COTTER

91490-20025-00

—

$1.31

In stock

29

PIN, CLEVIS

90240-12074-00

1
Out of stock

30

WASHER, PLATE(663)

92990-12600-00

—

$6.68

In stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

COVER, THRUST

1W1-22128-00-00

—

$17.09

In stock

33

GROMMET (3R4)

90480-22263-00

—

$3.78

In stock

34

DAMPER, SUB TANK

3R4-22261-00-00

1
Out of stock

35

HOLDER, SUB TANK (250H)

4V4-22262-01-00

1
Out of stock

36

SCREW, PAN

98507-06014-00

—

$6.18

In stock

37

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

38

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
