1980 Yamaha IT425 (IT425G) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1980 Yamaha IT425 (IT425G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

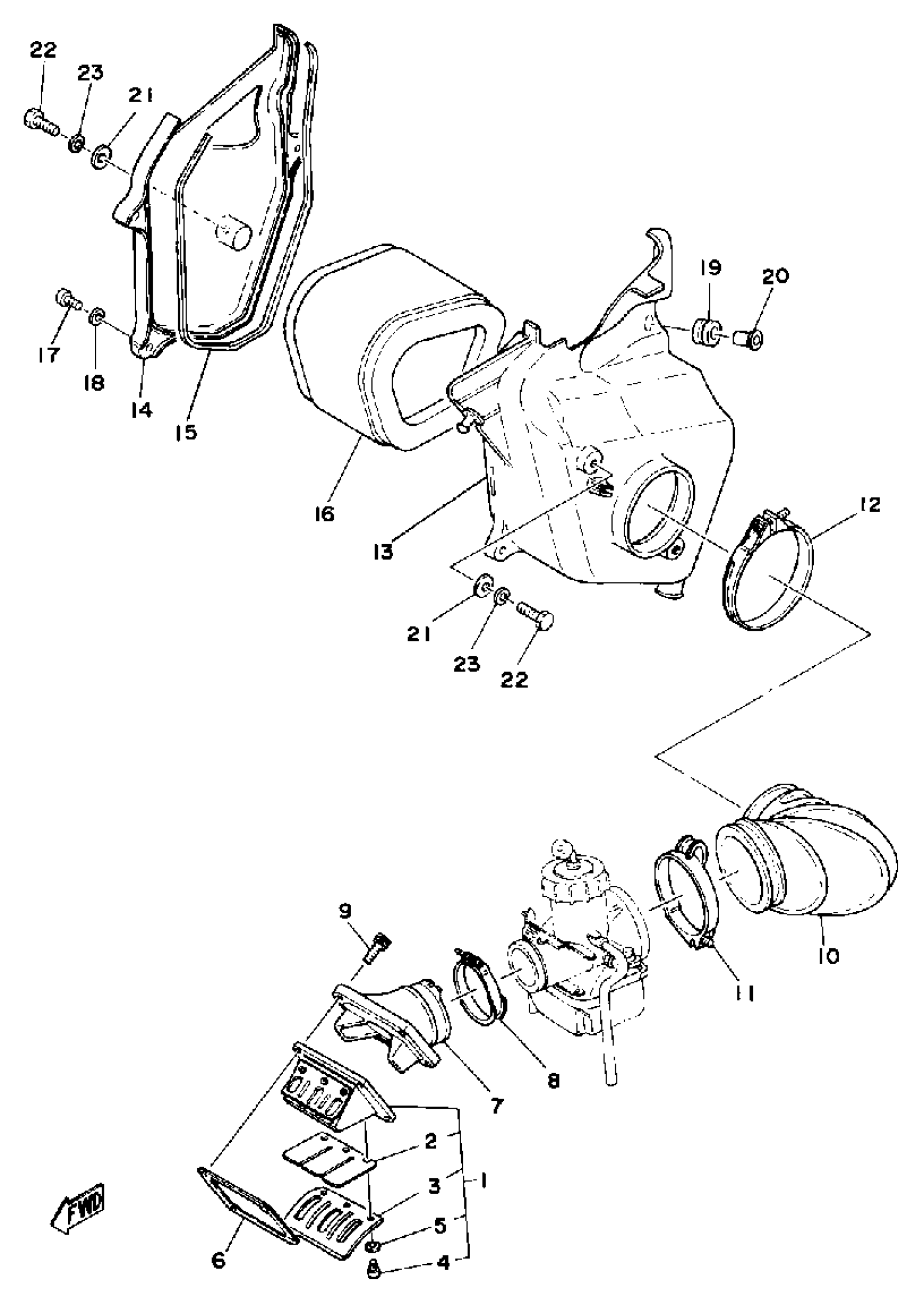

1980 Yamaha IT425 (IT425G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

2X5-13610-00-00

1
Out of stock

2

. REED, VALVE

2K7-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

7

JOINT, CARBURETOR

(3R8-13565-00-00)

1
Out of stock

8

CLAMP, HOSE

90460-51109-00

1
Out of stock

9

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

10

JOINT, AIR CLNR 1

(2X5-14453-00-00)

1
Out of stock

11

CLAMP, HOSE

90460-68231-00

1
Out of stock

12

CLAMP, HOSE(59V)

90460-85277-00

1

$12.62

In stock

13

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

14

CAP, CLEANER CASE 1

2K7-14412-00-00

1
Out of stock

15

SEAL

50M-14462-01-00

1

$8.99

In stock

16

ELEMENT ASSEMBLY

2K7-14450-00-00

1
Out of stock

17

SCREW, PAN

98507-06014-00

—

$6.18

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

20

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

21

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

22

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
