1979 Yamaha IT400 (IT400F) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1979 Yamaha IT400 (IT400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

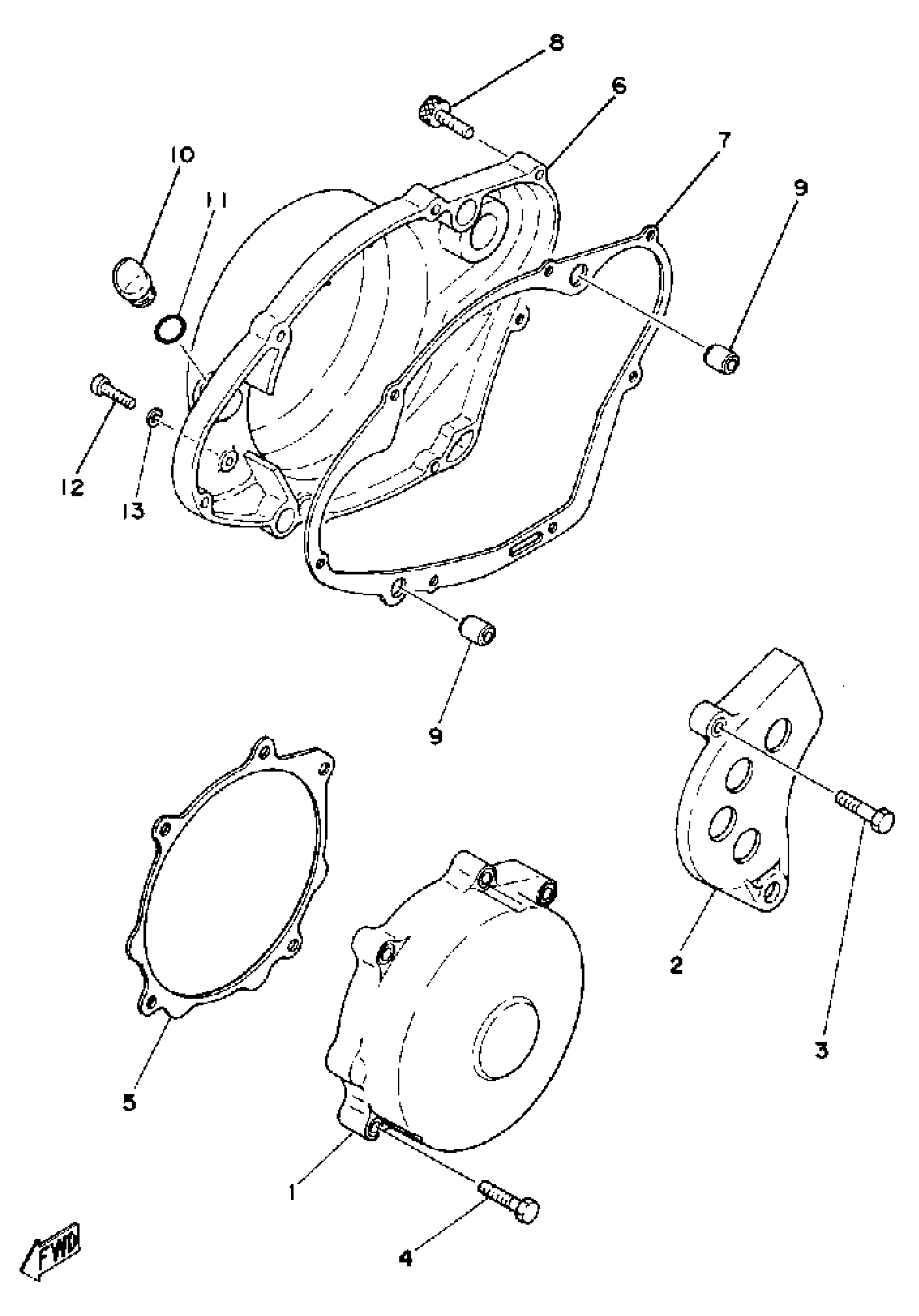

1979 Yamaha IT400 (IT400F) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

2X7-15411-00-00

1
Out of stock

2

COVER, CRANKCASE R

2K7-15421-00-00

1
Out of stock

3

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

4

1

$3.82

In stock

5

GASKET, CRCS COVER

2X7-15451-00-00

1
Out of stock

6

COVER, CRANKCASE 3

2K7-15431-01-00

1
Out of stock

7

GASKET CRCS CVR 3

2K7-15462-01-00

1
Out of stock

8

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

9

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

10

PLUG, OIL LEVEL

1G8-15362-00-00

1
Out of stock

11

O-RING (26H)

93210-14579-00

1

$5.69

In stock

12

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

13

GASKET 838153840000

90430-06016-00

1

$6.18

In stock
