1979 Yamaha IT400 (IT400F) Crank-Piston Diagram

← All diagrams

Find the part on the Crank-Piston diagram for your 1979 Yamaha IT400 (IT400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

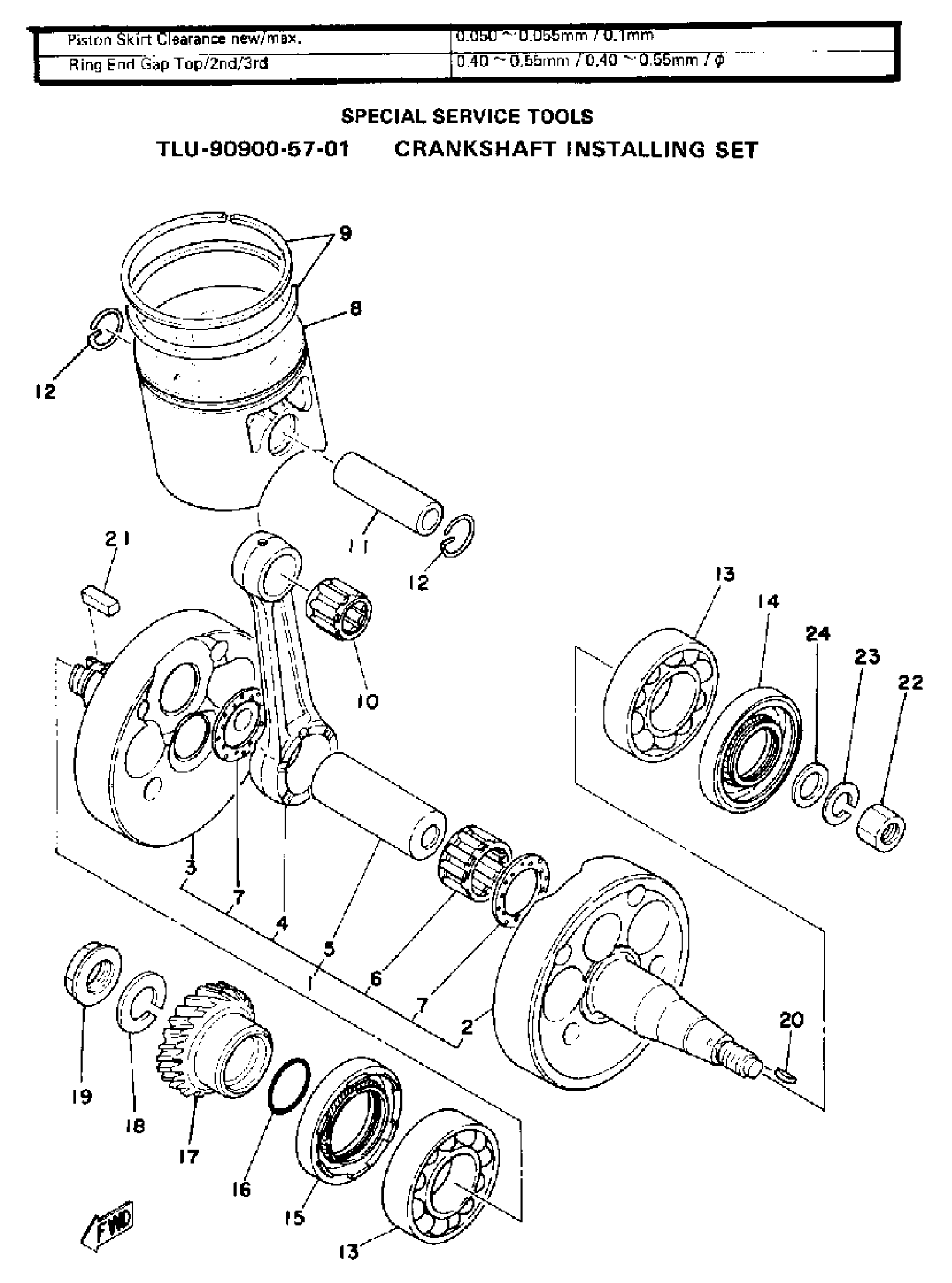

1979 Yamaha IT400 (IT400F) Crank-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(2X5-11400-00-00)

1
Out of stock

2

CRANK 1

(2X5-11412-00-00)

1
Out of stock

3

CRANK 2

(2X5-11422-00-00)

1
Out of stock

4

ROD, CONNECTING

(2X5-11651-10-00)

1
Out of stock

5

PIN, CRANK 1

(2X5-11681-00-00)

1
Out of stock

6

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

7

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

8

PISTON STD

2X8-11631-00-96

1
Out of stock

8

PISTON 1 O/S 0.25

2X8-11635-00-00

1
Out of stock

8

PISTON 2 O/S 0.50

(2X8-11636-00-00)

1
Out of stock

8

PISTON 3 O/S 0.75

(2X8-11637-00-00)

1
Out of stock

8

PISTON 4 O/S 1.00

(2X8-11638-00-00)

1
Out of stock

9

PISTON RINGSET STD

2X8-11610-00-00

1
Out of stock

9

PISTON RINGSET 1ST

2X8-11610-10-00

1
Out of stock

9

PISTON RINGSET 2ND

2X8-11610-20-00

1
Out of stock

9

PISTON RINGSET 3RD

(2X8-11610-30-00)

1
Out of stock

9

PISTON RINGSET 4TH

(2X8-11610-40-00)

1
Out of stock

10

—

$41.97

In stock

11

PIN, PISTON

275-11633-00-00

—

$30.66

In stock

12

CIRCLIP (2F1)

93450-19052-00

—

$5.85

In stock

13

BRG,R-B 6306 72MM 351G KY

93306-30615-00

—

$72.96

In stock

14

OIL SEAL(38V)

93103-30150-00

—

$19.71

In stock

15

OIL SEAL (434)

93103-40091-00

—

$27.25

In stock

16

O-RING (498)

93210-29282-00

—
Out of stock

17

GEAR, PRI DRIVE

(2X5-16111-00-00)

1
Out of stock

18

WASHER(N15)

92907-18100-00

—

$7.09

In stock

19

NUT (498)

90179-18172-00

—
Out of stock

20

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

21

KEY, STRAIGHT (498)

90282-07019-00

—

$8.69

In stock

22

NUT(55K)

90170-12347-00

—

$8.43

In stock

23

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

24

WASHER, PLATE (583)

90201-12593-00

—

$6.82

In stock
Crankcase →
