1977 Yamaha IT400D (IT400D) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1977 Yamaha IT400D (IT400D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

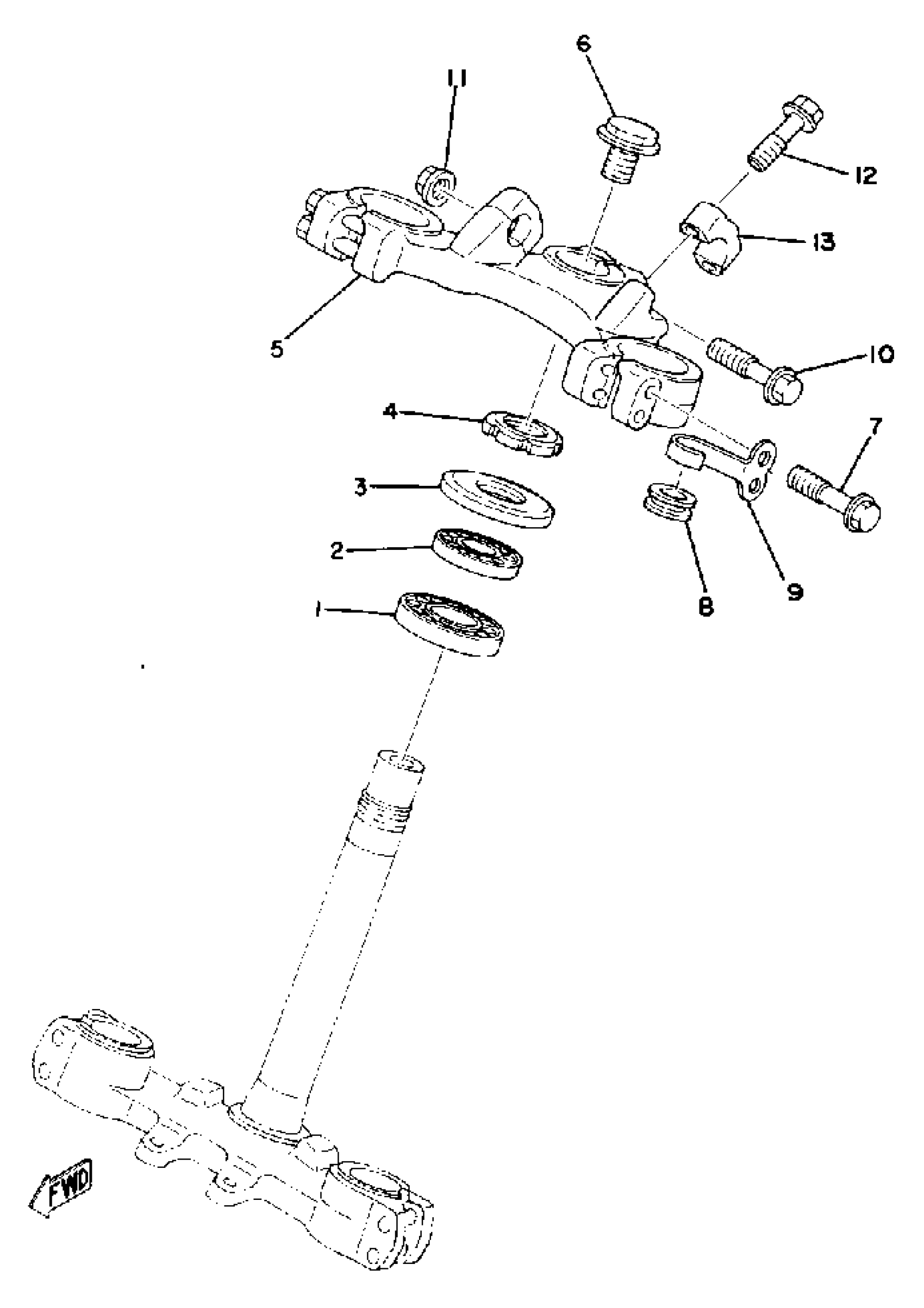

1977 Yamaha IT400D (IT400D) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$60.13

In stock

2

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

3

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

CROWN, HANDLE

5X3-23435-01-98

1
Out of stock

5

1

$3.91

In stock

7

BOLT, FLANGE

95814-08040-00

1

$3.15

In stock

8

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock

9

. HOLDER, CABLE

1W1-23317-01-00

1
Out of stock

10

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

11

NUT, FLANGE

95704-08500-00

1
Out of stock

12

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

13

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock
