1977 Yamaha IT400D (IT400D) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1977 Yamaha IT400D (IT400D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

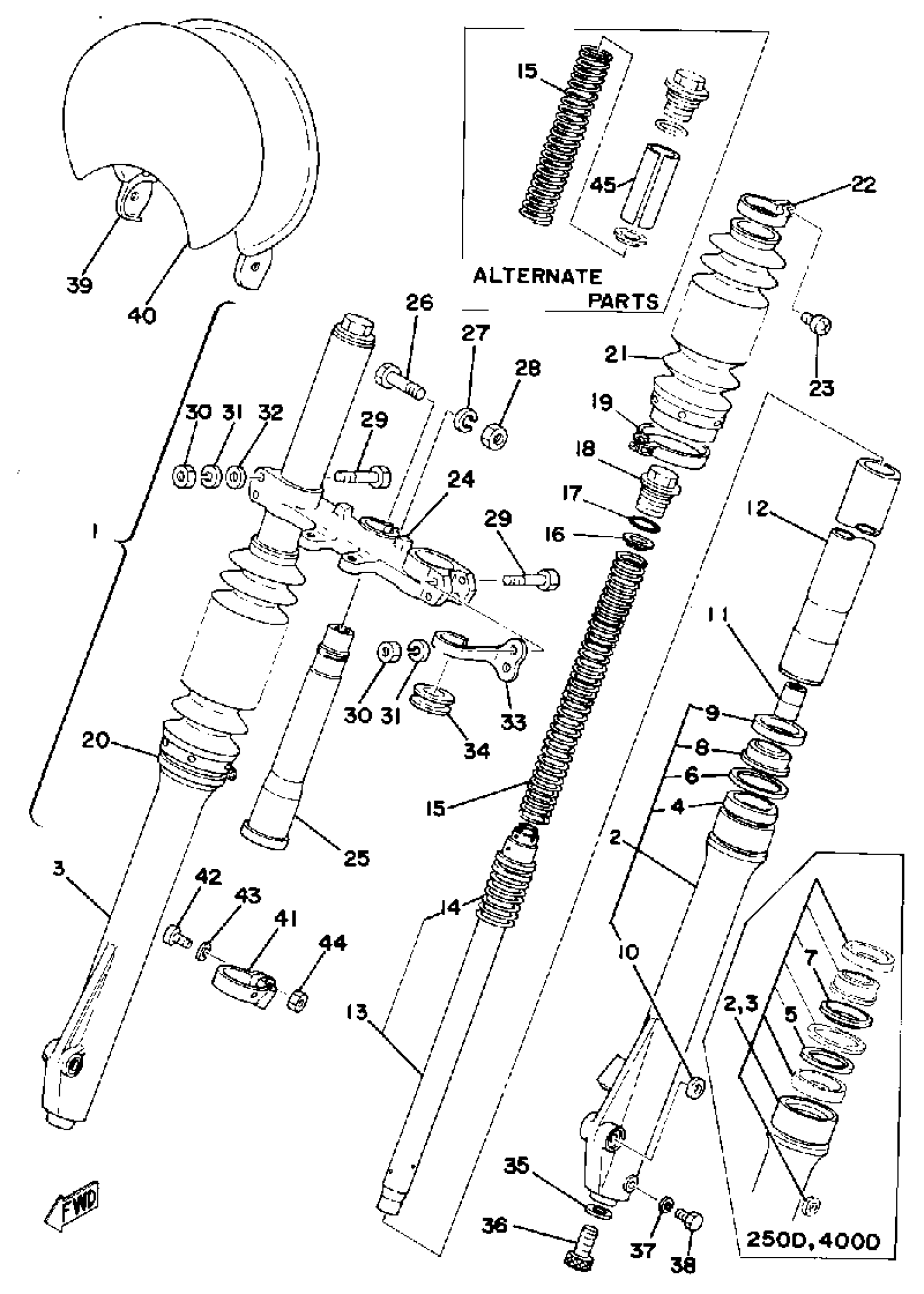

1977 Yamaha IT400D (IT400D) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(1W6-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(1W2-23126-01-00)

1
Out of stock

3

TUBE, OUTER 2

(1W2-23136-01-00)

1
Out of stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

WASHER, OIL SEAL

(509-23146-L0-00)

1
Out of stock

6

.. CLIP, OIL SEAL

1W1-23156-L0-00

1
Out of stock

7

.. RING, SNAP

1W1-23153-L0-00

1
Out of stock

8

SEAL, DUST

1G8-23144-L1-00

1

$22.96

In stock

9

.. COVER, DUST SEAL

99999-01510-00

1
Out of stock

10

.. CAP, FRONT FORK

1W1-23168-L0-00

1
Out of stock

11

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

12

. UNAVAILABLE IN PRICE BOOK

1W6-23100-00-00

1
Out of stock

13

CYLINDER, FRTFRK

(1W6-23170-00-00)

1
Out of stock

14

SPRING, REBOUND

(1G8-23151-L0-00)

1
Out of stock

15

SPRING, FRONT FORK

(1W6-23141-00-00)

1
Out of stock

15

SPRING, FRONT FORK

(1W6-23141-10-00)

1
Out of stock

15

SPRING, FRONT FORK

(1W6-23141-20-00)

1
Out of stock

16

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

17

GASKET

240-23114-00-00

—

$12.27

In stock

18

. BOLT, CAP (583-23111-00)

2W6-23111-00-00

1
Out of stock

19

HOLDER, CABLE 1

1W1-23318-L0-00

1
Out of stock

20

BAND

509-23489-L0-00

1
Out of stock

21

BOOT, FRONT FORK

(1W1-23191-L0-00)

1
Out of stock

22

BAND, BOOT

341-92090-60-00

—
Out of stock

23

SCREW

509-23194-L0-00

—

$4.12

In stock

24

BRACKET, LOWER

(1W1-23345-L0-33)

1
Out of stock

25

SHAFT, STEERING

(1W1-23341-L0-00)

1
Out of stock

26

BOLT 2

(1W1-23356-L0-00)

1
Out of stock

27

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

28

NUT

(322-23357-00-00)

1
Out of stock

29

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

30

. NO LONGER AVAILABLE

90170-08180-00

1
Out of stock

30

NUT(6L2)

95333-08600-00

—

$3.20

In stock

31

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

32

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

33

. HOLDER, CABLE

1W1-23317-01-00

1
Out of stock

34

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock

35

GASKET

509-23158-L0-00

—

$14.34

In stock

36

. BOLT, HEX SCKT HEAD

1T3-23181-50-00

1
Out of stock

37

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

38

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

39

PLATE, NUMBER

1W2-23485-00-00

1
Out of stock

40

EMBLEM

1W2-23395-00-00

1
Out of stock

41

HOLDER, CABLE 1

1W2-23318-00-00

1
Out of stock

42

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

43

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

44

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

45

SPACER

11H-23118-00-00

1
Out of stock

45

SPACER

(1W2-23118-10-00)

1
Out of stock
