1976 Yamaha IT400 (IT400C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1976 Yamaha IT400 (IT400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

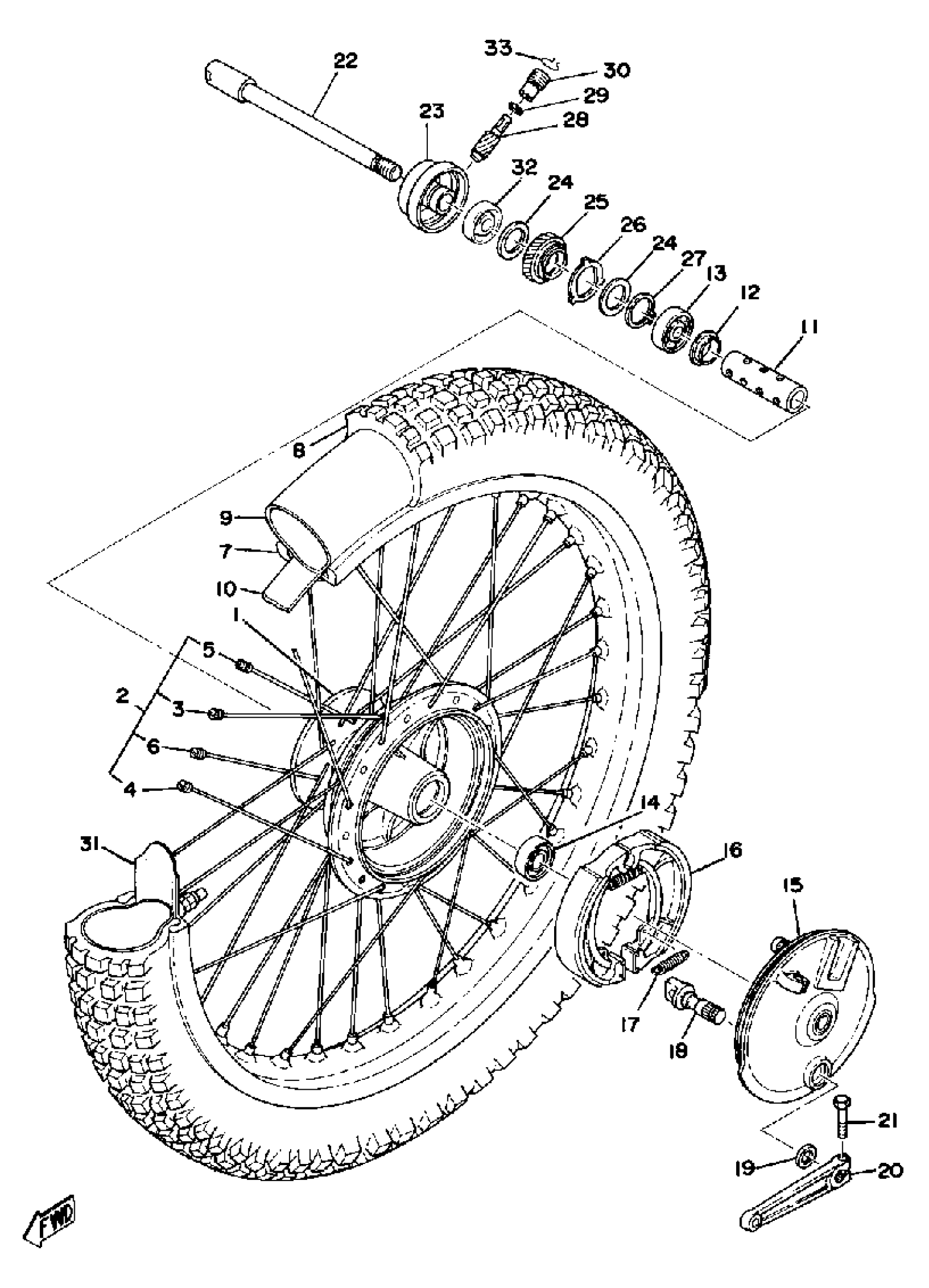

1976 Yamaha IT400 (IT400C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1K7-25111-10-98

1
Out of stock

2

SPOKE SET, FRONT

1E6-25104-01-00

1
Out of stock

3

SPOKE SET, INNER 1

(1E6-25196-91-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(1E6-25197-91-00)

1
Out of stock

5

SPOKE SET, INNER 2

(1E6-25179-91-00)

1
Out of stock

6

SPOKE SET, OUTER 2

(1E6-25189-91-00)

1
Out of stock

7

RIM 1.60X21

94416-21326-00

1
Out of stock

8

300-21 M1B (TT)

(94130-213A4-00)

1
Out of stock

9

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

10

BAND, RIM

(94327-21024-00)

1
Out of stock

11

SPACER

90560-15116-00

1
Out of stock

12

FLANGE, SPACER

146-25116-00-00

1
Out of stock

13

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

14

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

15

PLATE, BRAKE SHOE

(483-25121-00-98)

1
Out of stock

16

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

17

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

18

CAMSHAFT

23X-25151-00-00

1
Out of stock

19

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

20

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

21

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

22

AXLE, WHEEL

509-25181-00-00

1
Out of stock

23

HOUSING, GEAR

(1K7-25191-00-00)

1
Out of stock

24

WASHER PLATE 214251470000

90201-22283-00

—

$5.38

In stock

25

GEAR, DRIVE

(1K7-25135-00-00)

1
Out of stock

26

CLUTCH, METER

1K7-25149-00-00

1
Out of stock

27

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

28

GEAR, METER

(1K7-25138-00-00)

1
Out of stock

29

SHIM, ROD

102-18416-00-00

1
Out of stock

30

BUSH

306-25136-00-00

1
Out of stock

31

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

32

OIL SEAL(3BC)

93106-40027-00

—

$13.22

In stock

33

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock
