1976 Yamaha IT400 (IT400C) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1976 Yamaha IT400 (IT400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

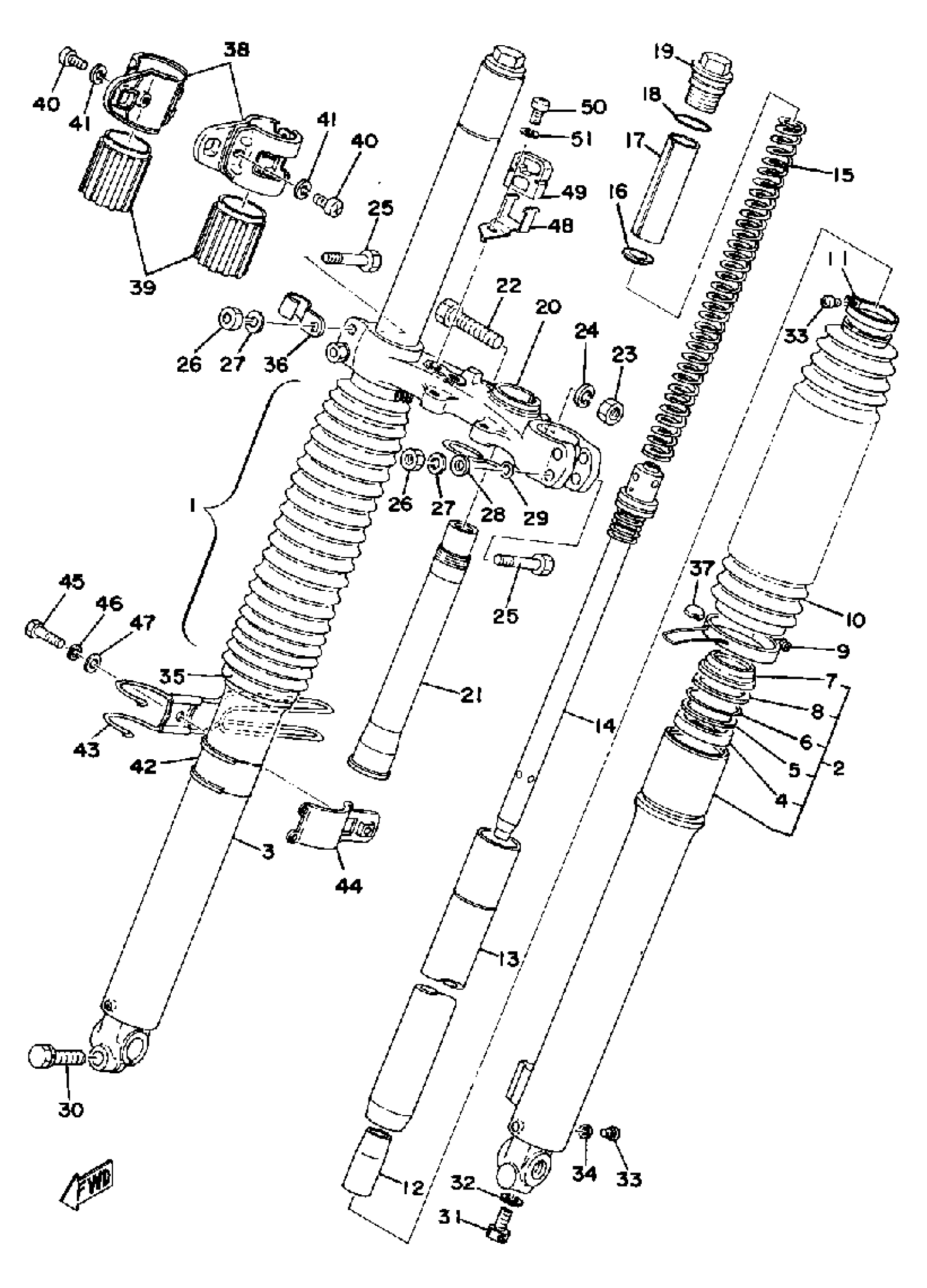

1976 Yamaha IT400 (IT400C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(1K7-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(1K7-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(1K7-23136-00-00)

1
Out of stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

WASHER, OIL SEAL

(509-23146-L0-00)

1
Out of stock

6

CLIP, OIL SEAL

(509-23156-L0-00)

1
Out of stock

7

COVER, DUST SEAL

(509-23148-L0-00)

1
Out of stock

8

. SEAL, DUST

509-23144-L0-00

1
Out of stock

9

HOLDER, CABLE 1

(583-23318-00-00)

1
Out of stock

10

BOOT, FRONT FORK

(509-23191-L1-00)

1
Out of stock

11

BAND, BOOT

341-92090-60-00

1
Out of stock

12

SPINDLE, TAPER

(509-23173-L0-00)

1
Out of stock

13

INNER TUBE 1

(1K7-23110-00-00)

1
Out of stock

14

CYLINDER, FRTFRK

(1K7-23170-00-00)

1
Out of stock

15

SPRING, FRONT FORK

(1K7-23141-00-00)

1
Out of stock

16

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

17

SPACER

(1K7-23118-00-00)

1
Out of stock

18

GASKET

240-23114-00-00

—

$12.27

In stock

19

. BOLT, CAP (583-23111-00)

2W6-23111-00-00

1
Out of stock

20

UNDER BRACKET

(2H1-23340-00-33)

1
Out of stock

20

UNDER BRACKET

(2H1-23340-00-33)

1
Out of stock

21

SHAFT, STEERING

(1E6-23341-00-00)

1
Out of stock

22

BOLT 2

(322-23356-00-00)

1
Out of stock

23

NUT

(322-23357-00-00)

1
Out of stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

25

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

26

NUT, HEXAGON

(90170-08180-00)

1
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

29

HOLDER, CABLE 2

(509-23319-00-00)

1
Out of stock

30

. BOLT 1 (90119-08011)

J60-23346-00-00

1
Out of stock

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

32

GASKET

509-23158-L0-00

—

$14.34

In stock

33

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

34

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

35

BAND

509-23489-L0-00

1
Out of stock

36

CLIP

(90468-20071-00)

1
Out of stock

37

HOLDER

(509-26393-00-00)

1
Out of stock

38

STAY, HEADLIGHT 1

(1K7-84118-60-33)

1
Out of stock

39

DAMPER, HDLT STAY

(1K7-84136-61-00)

1
Out of stock

40

SCREW, PAN

98507-06014-00

—

$6.18

In stock

41

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

42

DAMPER 1

(1K7-21541-00-00)

1
Out of stock

43

HOLDER, CABLE 1

(1K7-23318-00-00)

1
Out of stock

44

HOLDER, CABLE 2

(498-23319-01-00)

1
Out of stock

45

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

46

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

47

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

48

STAY, COUPLER

(1K7-21396-01-00)

1
Out of stock

49

HOLDER, BATT BOX

(1K7-21388-00-00)

1
Out of stock

50

BOLT (661)

97013-06012-00

—

$4.71

In stock

51

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
