1976 Yamaha IT400 (IT400C) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1976 Yamaha IT400 (IT400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

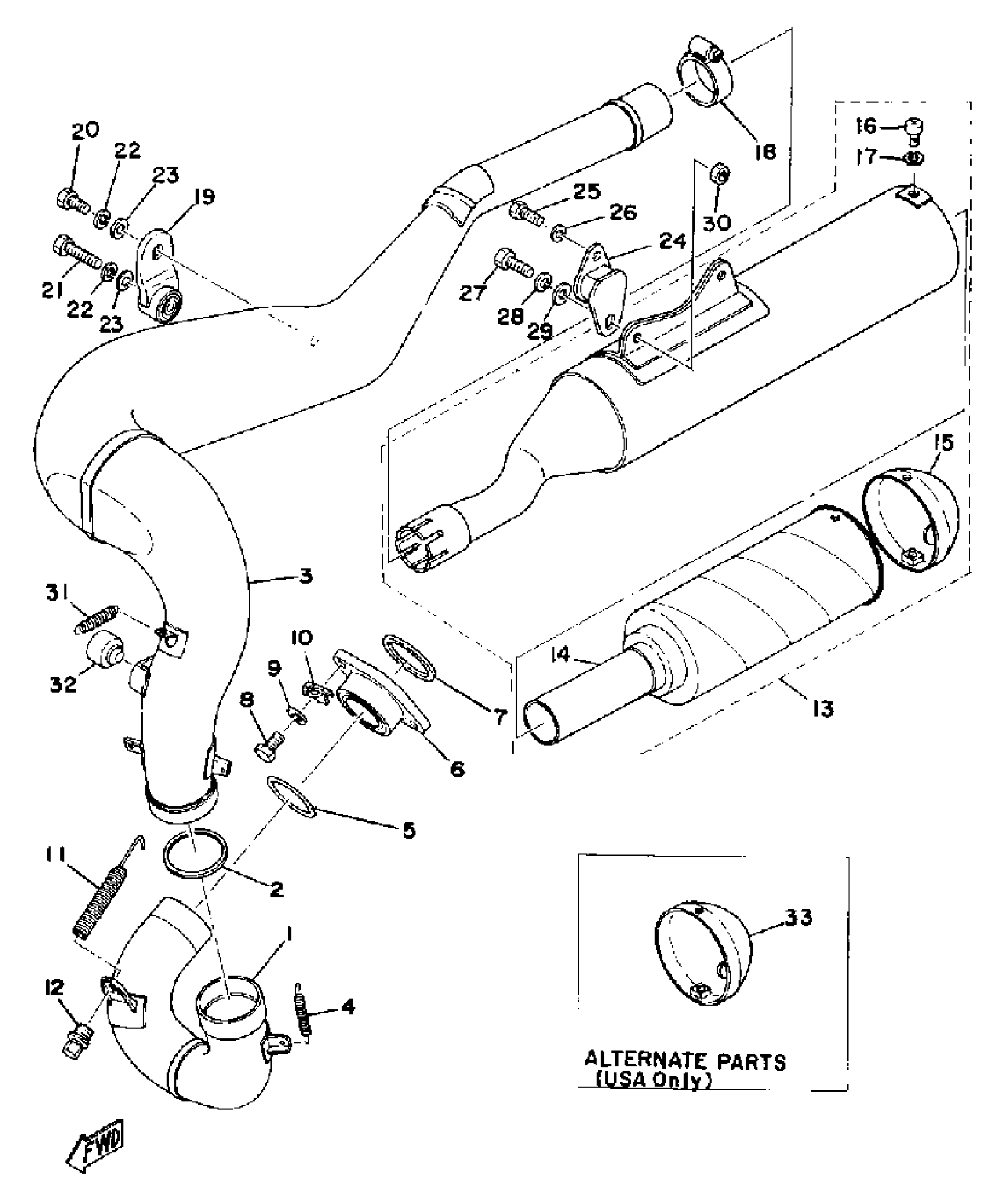

1976 Yamaha IT400 (IT400C) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST L

(510-14611-01-00)

1
Out of stock

2

GASKET

248-14623-10-00

1

$6.22

In stock

3

MUFFLER L

(510-14711-02-00)

1
Out of stock

4

SPRING, TENSION

90506-18068-00

1
Out of stock

5

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

6

NUT, RING

(214-14612-00-00)

1
Out of stock

7

GASKET

248-14623-10-00

1

$6.22

In stock

8

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

PLATE

363-14685-00-00

1
Out of stock

11

SPRING,TENSION

90507-20012-00

1
Out of stock

12

BOLT, HOOK

409-14684-00-00

1
Out of stock

13

SILENCER ASSEMBLY

(1K7-14750-21-00)

1
Out of stock

14

PIPE, OUTLET

(1K7-14752-00-00)

1
Out of stock

15

. CAP, SILENCER

1K7-14787-00-00

1
Out of stock

16

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

CLAMP, HOSE

90460-35076-00

1
Out of stock

19

STAY, MUFFLER 1

483-14771-00-00

1
Out of stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

BOLT

97013-08035-00

—

$4.80

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

STAY, MUFFLER 2

483-14781-03-00

—
Out of stock

25

BOLT, HEXAGON

97013-06018-00

—

$1.54

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

30

NUT(6L2)

95333-08600-00

—

$3.20

In stock

31

SPRING, TENSION

90506-14129-00

1
Out of stock

32

STOPPER MAIN STAND

278-27114-00-00

—

$8.45

In stock

33

CAP, SILENCER

(510-14787-20-00)

1
Out of stock
