1976 Yamaha IT400 (IT400C) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1976 Yamaha IT400 (IT400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

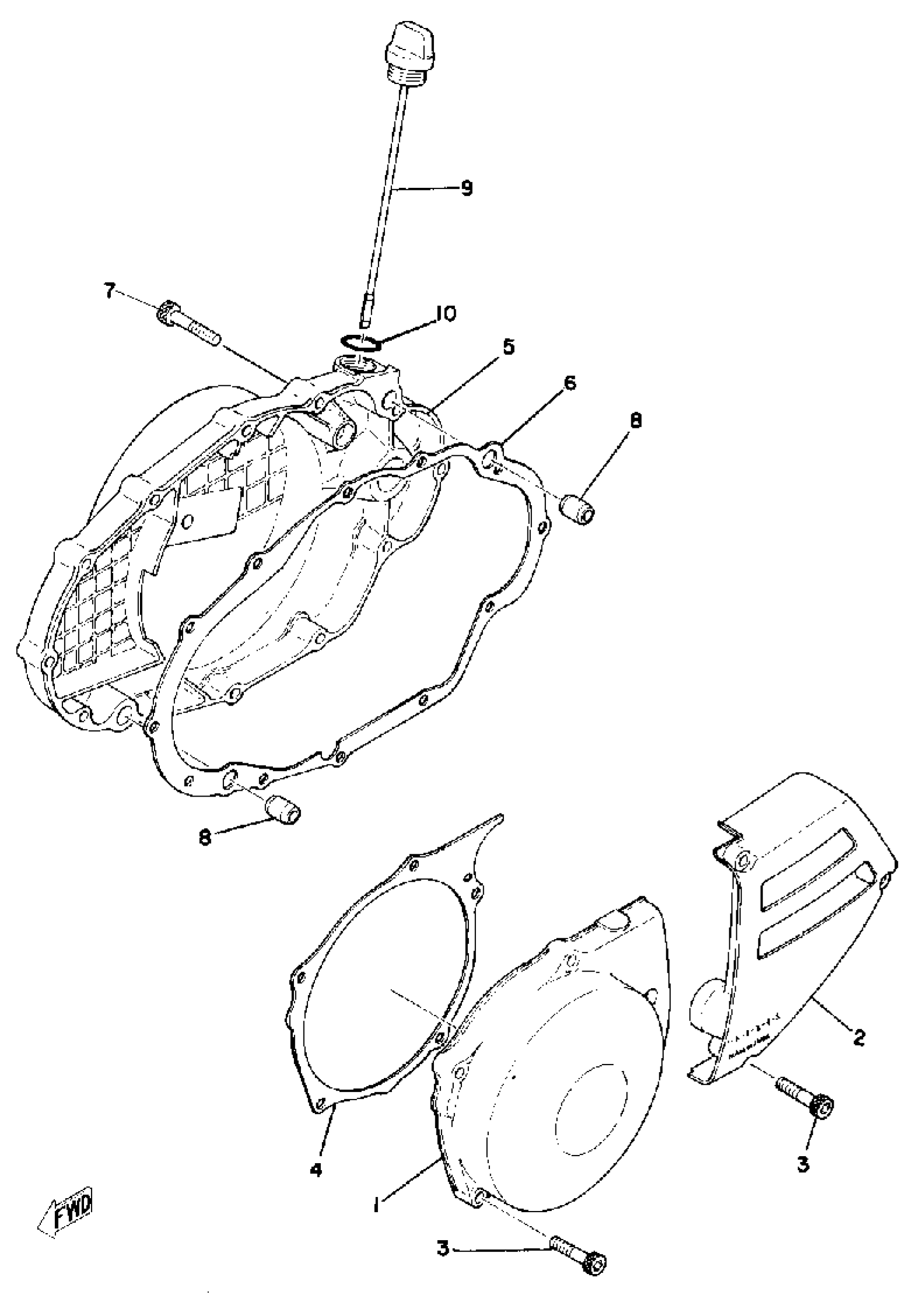

1976 Yamaha IT400 (IT400C) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(509-15411-00-00)

1
Out of stock

2

COVER, CRANKCASE R

498-15421-00-00

1
Out of stock

3

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

4

GASKET, CRANKCASE COVER

363-15451-09-00

1

$21.88

In stock

5

COVER, CRANKCASE 3

(509-15431-01-00)

1
Out of stock

6

GASKET, CRANKCASE COVER

364-15461-09-00

1

$28.24

In stock

7

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

8

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

9

PLUG, OIL

498-15363-00-00

1
Out of stock

10

O-RING (646)

93210-19123-00

—

$6.91

In stock
