1976 Yamaha IT400 (IT400C) Crank - Piston Diagram

← All diagrams

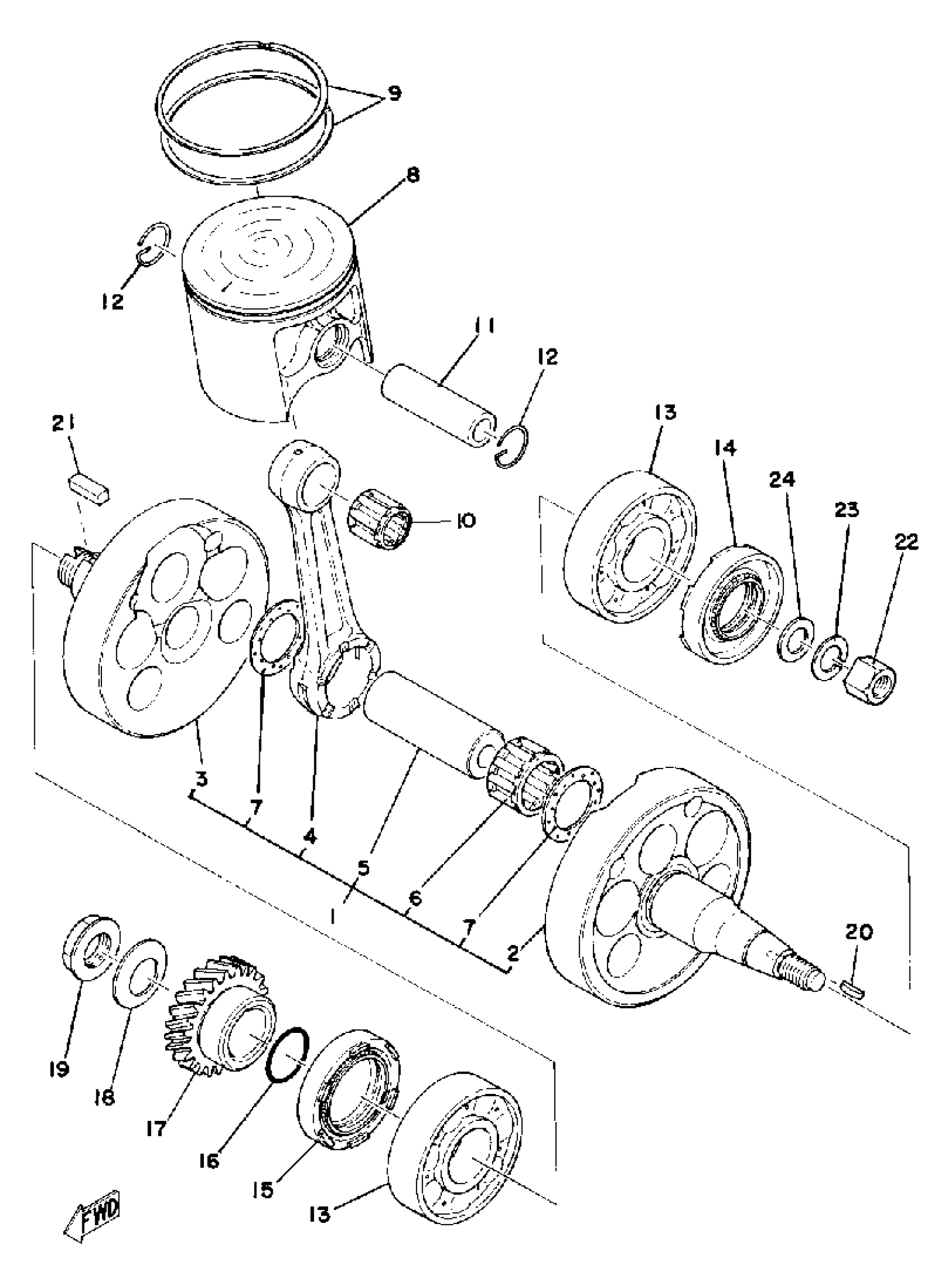

Find the part on the Crank - Piston diagram for your 1976 Yamaha IT400 (IT400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha IT400 (IT400C) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(510-11400-02-00)

1
Out of stock

2

CRANK 1

(510-11412-01-00)

1
Out of stock

3

CRANK 2

(510-11422-00-00)

1
Out of stock

4

. ROD, CONNECTING

431-11651-00-00

1
Out of stock

5

PIN, CRANK

2X4-11681-00-00

1

$73.68

In stock

6

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

7

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

8

PISTON STD

(2K8-11631-00-96)

1
Out of stock

8

. PISTON 1 O/S 025 (1W4-11635-00)

2K8-11635-00-00

1
Out of stock

8

. PISTON 2 O/S 050 (1W4-11636-00)

2K8-11636-00-00

1
Out of stock

8

. PISTON 3 O/S 075 (510-11637-05)

2K8-11637-00-00

1
Out of stock

8

. PISTON 4 O/S 100 (510-11638-05)

2K8-11638-00-00

1
Out of stock

9

PISTON RINGSET STD

(510-11601-03-00)

1
Out of stock

9

PISTON RINGSET 1ST

510-11601-13-00

1
Out of stock

9

PISTON RINGSET 2ND

510-11601-23-00

1
Out of stock

9

PISTON RINGSET 3RD

510-11601-33-00

1
Out of stock

9

PISTON RINGSET 4TH

510-11601-43-00

1
Out of stock

10

—

$32.87

In stock

11

PIN, PISTON

275-11633-00-00

—

$30.66

In stock

12

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

13

BRG,R-B 6306 72MM 351G KY

93306-30615-00

—

$72.96

In stock

14

OIL SEAL(38V)

93103-30150-00

—

$19.71

In stock

15

OIL SEAL (434)

93103-40091-00

—

$27.25

In stock

16

O-RING (498)

93210-29282-00

—
Out of stock

17

GEAR, PRI DRIVE

(510-16111-00-00)

1
Out of stock

18

SPRING

214-16119-00-00

—
Out of stock

19

NUT (498)

90179-18172-00

—
Out of stock

20

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

21

KEY, STRAIGHT (498)

90282-07019-00

—

$8.69

In stock

22

NUT, HEXAGON (525)

90170-12181-00

—

$11.51

In stock

23

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

24

WASHER (492)

90201-12535-00

—
Out of stock
