1981 Yamaha IT250 (IT250H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

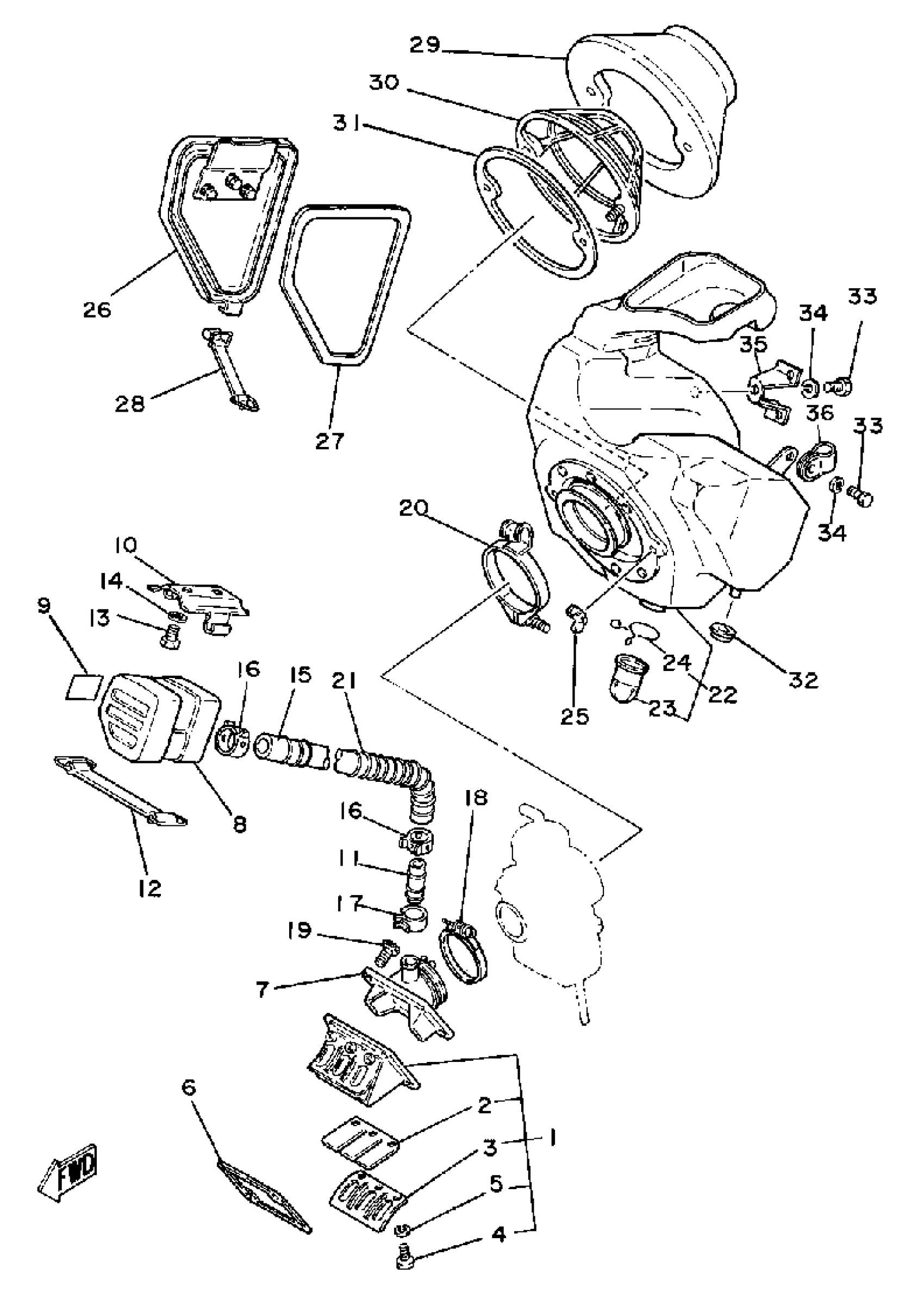

1981 Yamaha IT250 (IT250H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

2X5-13610-00-00

1
Out of stock

2

. REED, VALVE

2K7-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

7

JOINT, CARBURETOR

4V3-13565-00-00

1
Out of stock

8

CHAMBER, AIR

4V3-13581-00-00

1
Out of stock

9

EMBLEM

4V3-1441K-00-00

1
Out of stock

10

STAY 1

4V3-14493-00-00

1
Out of stock

11

PIPE, MANIFOLD

4V3-13584-01-00

1
Out of stock

12

BAND, BATTERY

1E6-82131-00-00

1

$21.34

In stock

13

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

HOSE

90445-21562-00

1
Out of stock

16

CLIP (4V3)

90467-20050-00

—

$3.25

In stock

17

CLIP

90468-08104-00

—

$2.72

In stock

18

CLAMP, HOSE

90460-51109-00

1
Out of stock

19

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

20

CLAMP, HOSE

90460-68231-00

1
Out of stock

21

SPRING, COMPRESSION

90501-14633-00

1
Out of stock

22

AIR CLEANER CASE

(4V5-W1441-00-00)

1
Out of stock

23

SEAL

1W4-14457-00-00

1
Out of stock

24

CLIP

90467-20M15-00

1

$6.23

In stock

25

NUT, WING (646)

90175-06008-00

—

$1.88

In stock

26

CAP, CLEANER CASE 1

4V5-14412-00-00

1
Out of stock

27

SEAL

39W-14452-00-00

1
Out of stock

28

BAND

4V5-14455-00-00

1
Out of stock

29

ELEMENT, AIR CLNR

3R4-W1442-01-00

1
Out of stock

30

GUIDE, ELEMENT

3R4-14458-00-00

1
Out of stock

31

HOLDER, GUIDE

(4V4-14459-00-00)

1
Out of stock

32

GROMMET

90480-13014-00

—

$6.85

In stock

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

PLATE, CLNR CS FTNG

4V4-14484-00-00

1
Out of stock

36

STAY 2

4V4-14499-00-00

1
Out of stock
