1981 Yamaha IT250 (IT250H) Carburetor Diagram

← All diagrams

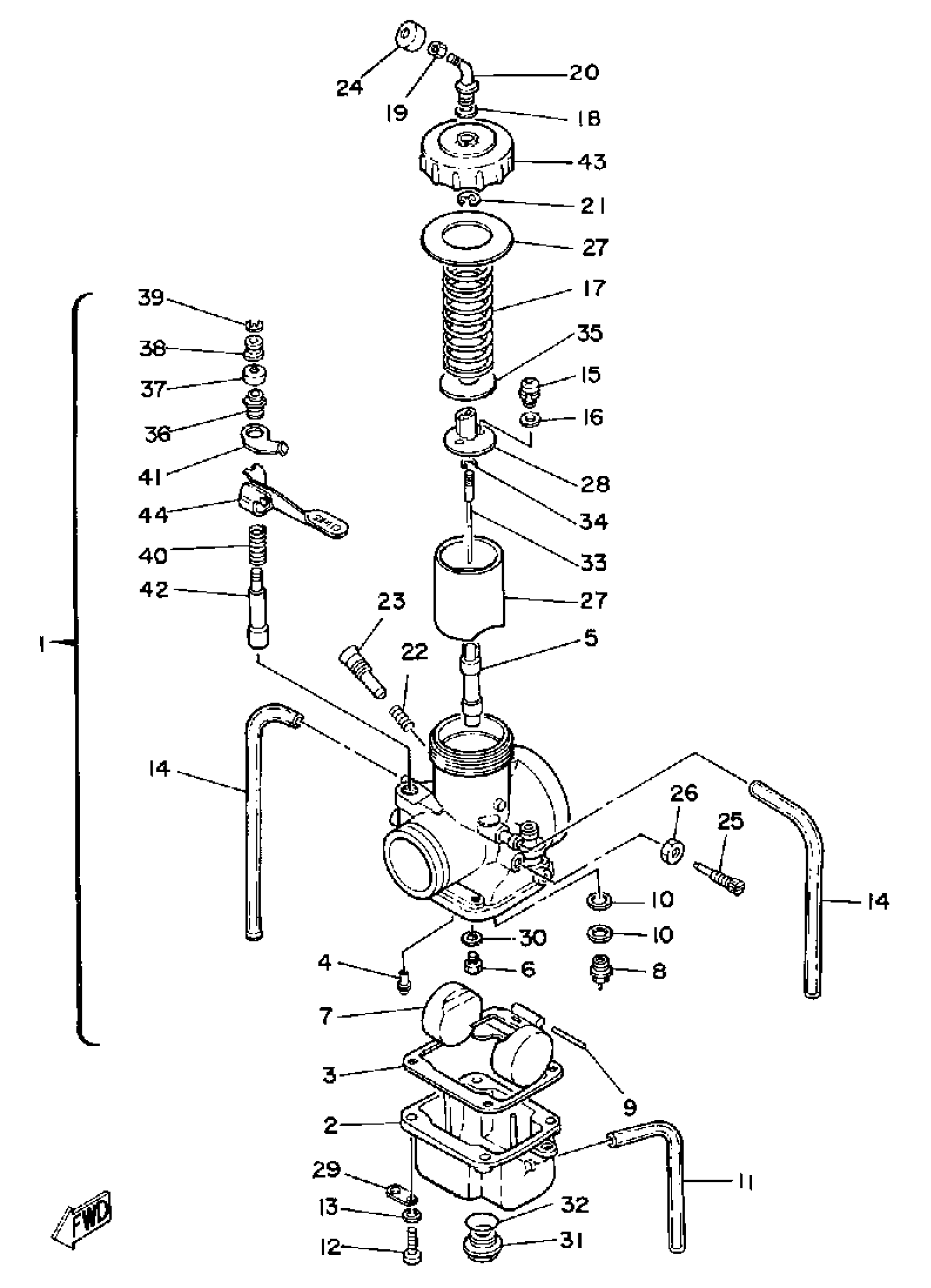

Find the part on the Carburetor diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha IT250 (IT250H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

25Y-14101-00-00

1
Out of stock

2

BODY, FLOAT CHMBR 1

(3R4-14181-16-00)

1
Out of stock

3

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

1

$20.86

In stock

4

JET, PILOT (# 50)

193-14142-50-00

1

$7.51

In stock

5

. NOZZLE, MAIN (0-2)

239-14141-32-00

1
Out of stock

6

JET,MAIN #390

137-14143-78-00

1
Out of stock

6

JET,MAIN #400

137-14143-80-00

1

$6.38

In stock

6

JET,MAIN #410

137-14143-82-00

1

$6.38

In stock

7

FLOAT

2N7-14185-00-00

1

$73.65

In stock

8

NEEDLE VALVE SET

24X-14107-30-00

1

$41.92

In stock

9

PIN, FLOAT

537-14186-00-00

1
Out of stock

10

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

11

HOSE

88R-14987-00-00

1
Out of stock

12

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

HOSE

89A-14987-00-00

—

$12.62

In stock

15

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

16

WASHER(3SX)

92907-03600-00

—

$6.69

In stock

17

. SPRING, THROTTLE VALVE

363-14131-00-00

1
Out of stock

18

GASKET

509-14198-00-00

—

$16.34

In stock

19

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

20

. CABLE ADJUST SCREW SET

23X-14106-00-00

1
Out of stock

21

CLIP

363-14137-00-00

—

$9.95

In stock

22

SPRING, THROTTLE STOP

137-14133-00-00

—

$6.15

In stock

23

. AIR SCREW SET (1W3-14123-00)

26A-14104-00-00

1
Out of stock

24

CAP

3X3-14169-00-00

—

$15.20

In stock

25

THROTTLE SCREW SET

23X-14103-00-00

—

$41.12

In stock

26

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

27

VALVE, THROTTLE 2.0

(2X7-14112-20-00)

1
Out of stock

28

. CONNECTOR

509-14274-00-00

1
Out of stock

29

. PLATE

3R4-14146-00-00

1
Out of stock

30

RING

(2X7-14194-00-00)

1
Out of stock

31

. PLUG, SCREW

510-14115-00-00

1
Out of stock

32

O-RING (541)

558-14147-00-00

—
Out of stock

33

. NEEDLE

239-14116-34-00

1
Out of stock

34

CLIP

3FA-14137-00-00

—

$6.80

In stock

35

. SEAT, SPRING

509-14136-00-00

1
Out of stock

36

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

37

COVER, PLUNGER CAP

(2X7-14173-00-00)

1
Out of stock

38

. BUSH

737-14241-00-00

1
Out of stock

39

. CLIP

737-14137-00-00

1
Out of stock

40

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

41

PLATE, STARTER LVR

(1W3-14178-00-00)

1
Out of stock

42

. PLUNGER, STARTER

1W1-14171-00-00

1
Out of stock

43

. TOP, MIXING CHAMBER

1W3-14158-00-00

1
Out of stock

44

. COVER, PLUNGER CAP (1W3-14173-00-00)

1W3-14175-00-00

1
Out of stock
