1981 Yamaha IT250 (IT250H) Fuel Tank Diagram

← All diagrams

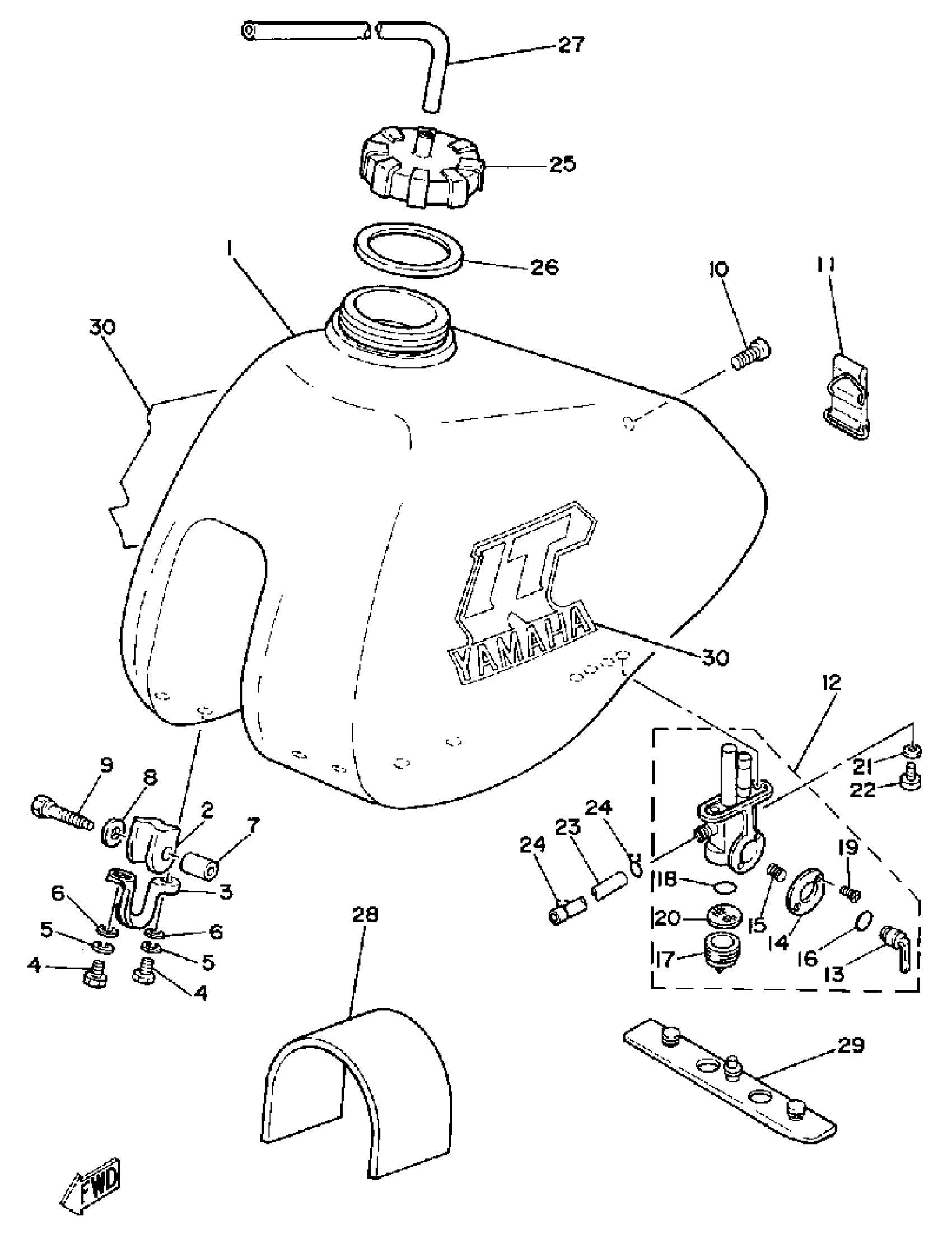

Find the part on the Fuel Tank diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha IT250 (IT250H) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

4V5-24110-00-00

1
Out of stock

2

DAMPER, TANK LOCATING 2

1W1-24182-01-00

1

$27.96

In stock

3

HOLDER, DAMPER

1W1-24144-01-00

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

7

COLLAR, LEVER 1

36Y-83913-01-00

1

$8.94

In stock

8

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

9

BOLT, WITH WASHER

90119-06022-00

1
Out of stock

10

SCREW(3JM)

90149-06306-00

1

$2.80

In stock

11

BAND, TANK FITTING 1

59V-24173-00-00

1

$15.83

In stock

12

FUEL COCK ASSY 1

4FL-24500-01-00

—

$56.22

In stock

13

LEVER, COCK

(4V5-24524-00-00)

1
Out of stock

14

. PLATE, LVR FITTING

4V5-24525-00-00

1
Out of stock

15

SPRING

(357-24529-10-00)

1
Out of stock

16

O-RING

4X8-24534-00-00

—

$12.28

In stock

17

CUP, FILTER

4X8-24521-00-00

—

$5.46

In stock

18

GASKET

4X8-24565-10-00

—
Out of stock

19

SCREW

4X8-24535-00-00

—
Out of stock

20

NET, FILTER 2

4X8-24515-01-00

—
Out of stock

21

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

22

SCREW 256241430000

90149-06011-00

—

$1.58

In stock

23

HOSE (L370)

90445-112E1-00

—

$20.43

In stock

24

CLIP

90467-100A1-00

—
Out of stock

25

. BODY, CAP

1K7-24611-01-00

1
Out of stock

26

GASKET,CAP

3R9-24612-00-00

1
Out of stock

27

HOSE (L545)

90445-09361-00

1
Out of stock

28

DAMPER, LOCATING 3

1W1-24183-00-00

1
Out of stock

29

DAMPER, LOCATING 1

3R4-24181-00-00

1
Out of stock

30

EMBLEM 1

(3R9-24161-19-00)

1
Out of stock
