CARBURETOR

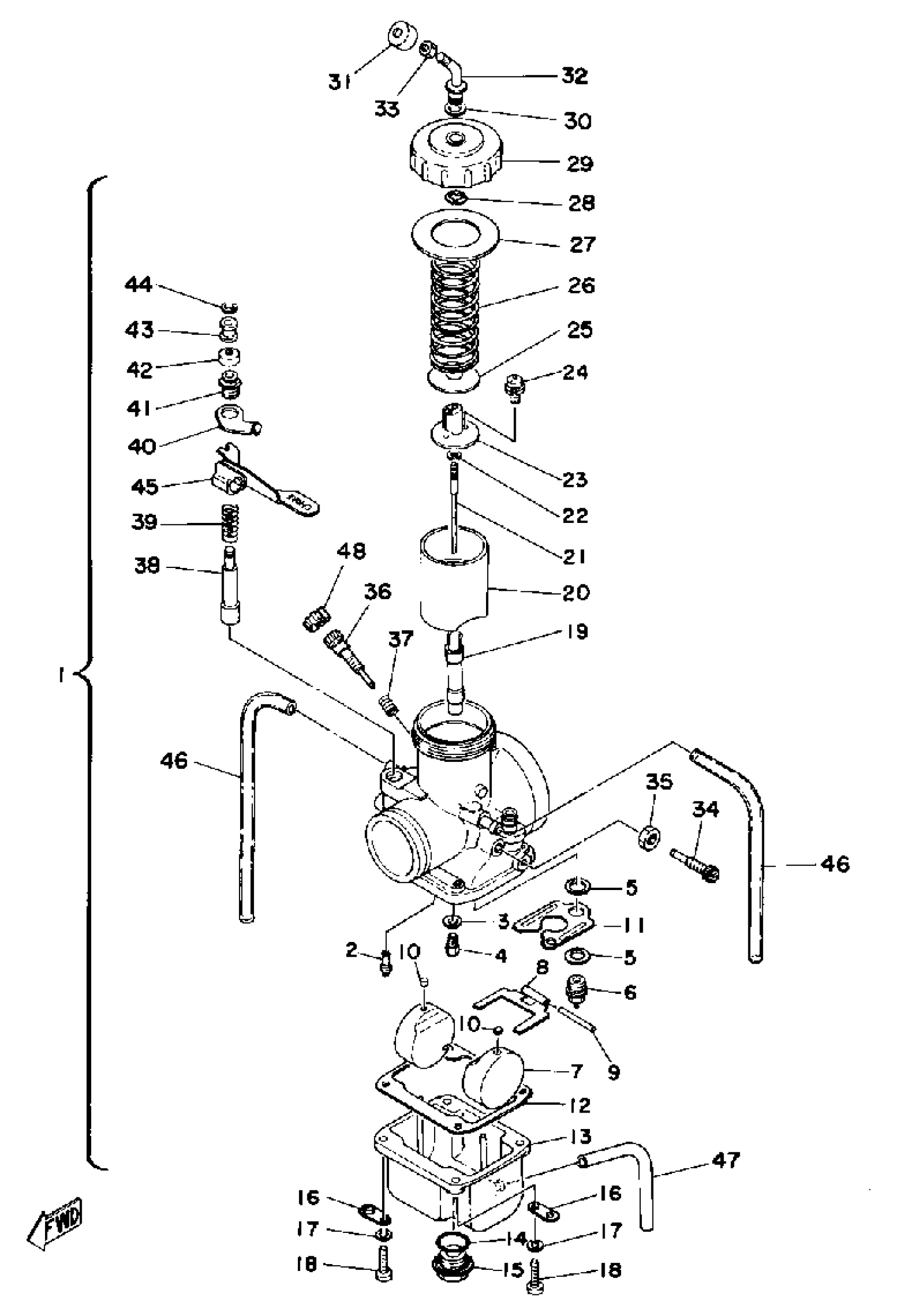

1980 Yamaha IT250 (IT250G) Carburetor Diagram
Find the part on the Carburetor diagram for your 1980 Yamaha IT250 (IT250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY 1
(3R7-14101-00-00)
2
JET, PILOT (# 70)
193-14142-70-00
3
RING
(2X7-14194-00-00)
4
JET,MAIN #340
137-14143-68-00
4
JET,MAIN #360
137-14143-72-00
7
. FLOAT
214-14185-00-00
8
. ARM, FLOAT
363-14187-00-00
9
PIN, FLOAT
537-14186-00-00
11
. PLATE
510-14146-00-00
13
BODY, FLOAT CHMBR 1
(510-14181-16-00)
14
O-RING (541)
558-14147-00-00
16
. PLATE
313-14146-00-00
17
YBS67-5 WASHER, SPRING
92990-05100-00
19
. NOZZLE, MAIN P-4
239-14141-44-00
20
VALVE, THROTTLE 2.0
(2X7-14112-20-00)
21
. NEEDLE (6F15-3)
239-14116-15-00
23
. CONNECTOR
509-14274-00-00
25
. SEAT, SPRING
509-14136-00-00
26
. SPRING, THROTTLE VALVE
363-14131-00-00
27
. GASKET
363-14126-00-00
29
. TOP, MIXING CHAMBER
1W3-14158-00-00
32
. CABLE ADJUST SCREW SET
23X-14106-00-00
36
. AIR SCREW SET (1W3-14123-00)
26A-14104-00-00
38
. PLUNGER, STARTER
1W1-14171-00-00
39
. SPRING, PLUNGER
256-14135-00-00
40
PLATE, STARTER LVR
(1W3-14178-00-00)
41
. CAP, PLUNGER
802-14174-00-00
42
COVER, PLUNGER CAP
(2X7-14173-00-00)
43
. BUSH
737-14241-00-00
44
. CLIP
737-14137-00-00
45
. COVER, PLUNGER CAP (1W3-14173-00-00)
1W3-14175-00-00
47
HOSE
88R-14987-00-00
48
. CAP
1W1-14968-00-00
