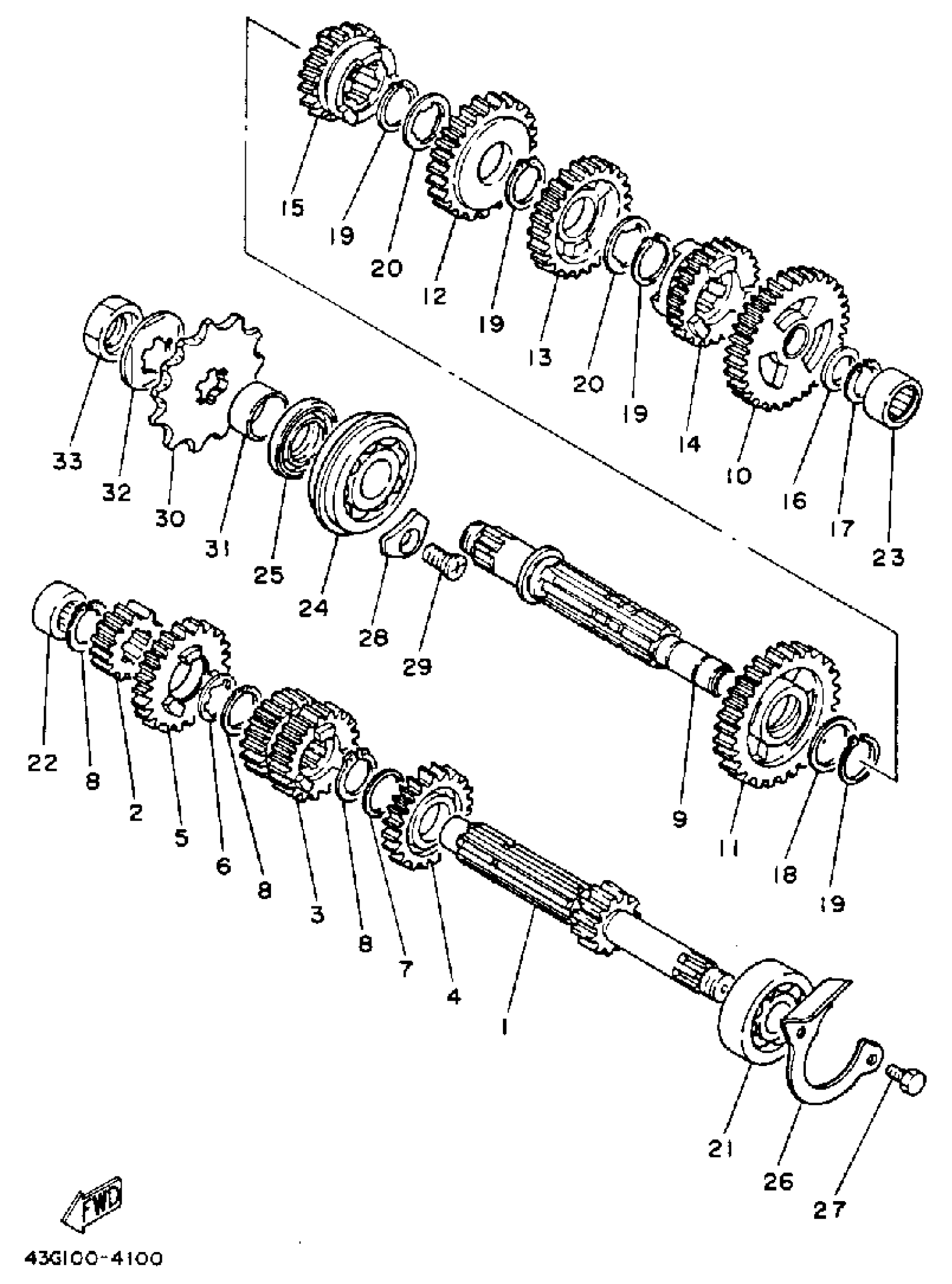

Find the part on the Transmission diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha IT200 (IT200S) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

43G-17411-00-00

1
Out of stock

2

GEAR, 2ND PINION (14T)

43G-17121-00-00

1
Out of stock

3

GEAR, 3RD PINION (16T/20T)

43G-17131-00-00

1
Out of stock

4

GEAR, 5TH PINION (25T)

43G-17151-01-00

1
Out of stock

5

GEAR, 6TH PINION (24T)

43G-17161-01-00

1
Out of stock

6

WASHER, SPECIAL SHAP

90209-16255-00

1
Out of stock

7

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

8

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

9

AXLE, DRIVE

43G-17421-00-00

1
Out of stock

10

GEAR, 1ST WHEEL (33T)

43G-17211-00-00

1
Out of stock

11

GEAR, 2ND WHEEL (26T)

43G-17221-00-00

1
Out of stock

12

GEAR, 3RD WHEEL (24T)

43G-17231-01-00

1
Out of stock

13

GEAR, 4TH WHEEL (25T)

43G-17241-01-00

1
Out of stock

14

GEAR, 5TH WHEEL (27T)

43G-17251-00-00

1
Out of stock

15

GEAR, 6TH WHEEL (21T)

43G-17261-00-00

1
Out of stock

16

WASHER (566)

90201-15701-00

—

$6.17

In stock

17

CIRCLIP

93440-15012-00

—
Out of stock

18

WASHER, PLATE (537)

90201-22555-00

—
Out of stock

19

CIRCLIP (537)

93410-22039-00

—

$6.17

In stock

20

WASHER (537)

90209-18135-00

—
Out of stock

21

BEARING(4HM)

93306-30317-00

—

$33.54

In stock

22

—

$38.21

In stock

23

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

24

BRG,R-B 6304 52MM 150G NT

93306-30411-00

—

$51.96

In stock

25

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

26

PLATE, COVER

3R3-17471-00-00

1
Out of stock

27

BOLT (661)

97013-06012-00

—

$4.71

In stock

28

PLATE, BEARING COVER

4XM-15383-00-00

—

$11.03

In stock

29

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

30

SPROCKET, DRIVE 11T

93832-11007-00

1
Out of stock

30

SPROCKET, DRIVE 12T

93832-12014-00

1
Out of stock

30

SPROCKET, DRIVE 13T

93832-13027-00

1
Out of stock

31

COLLAR (3V3)

90387-202A0-00

—

$18.57

In stock

32

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

33

NUT (1L8)

90179-16226-00

—

$7.46

In stock
