1986 Yamaha IT200 (IT200S) Front Brake-Caliper Diagram

← All diagrams

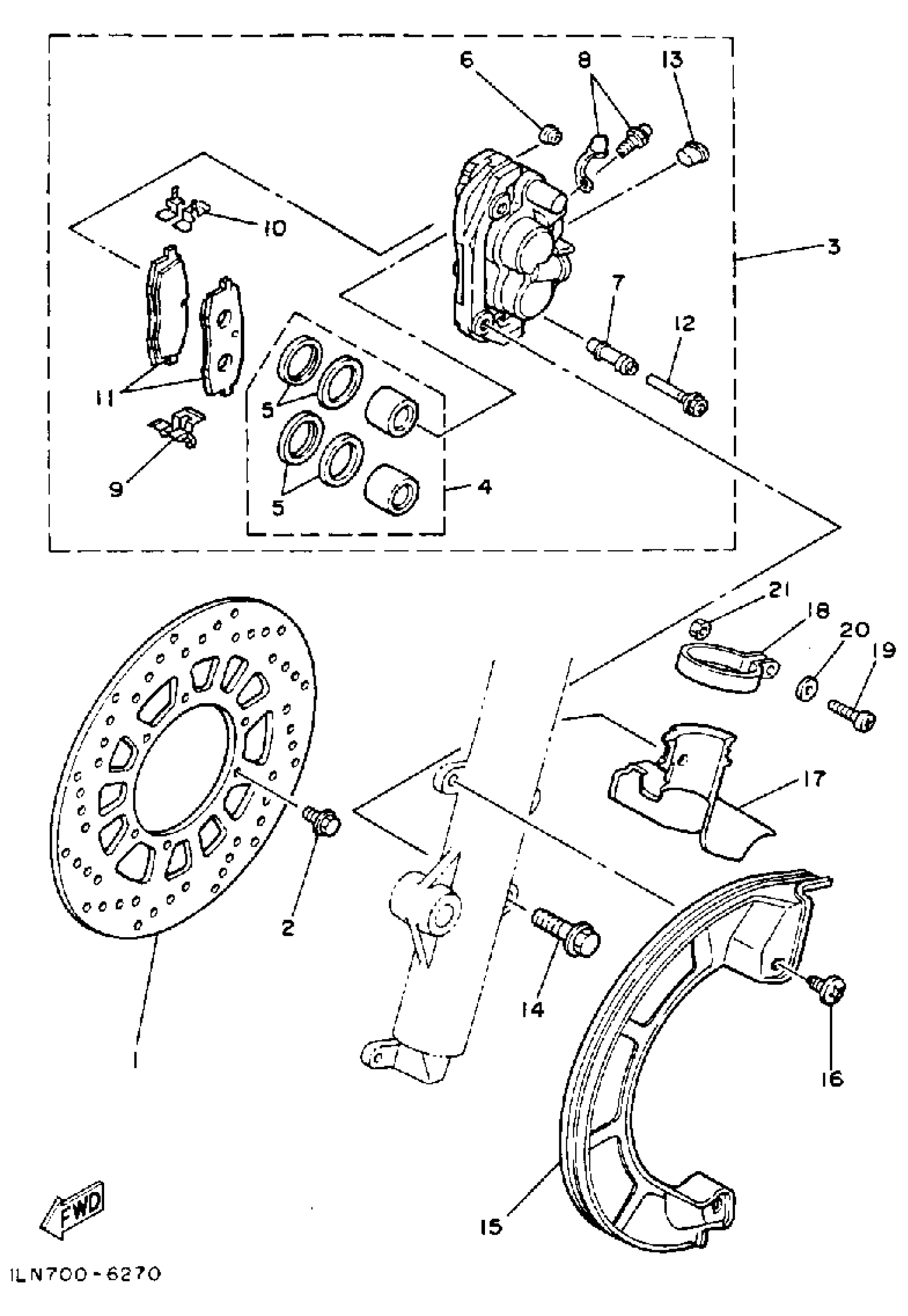

Find the part on the Front Brake-Caliper diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha IT200 (IT200S) Front Brake-Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC,BRAKE

55U-2582T-00-00

1
Out of stock

2

BOLT

90109-06757-00

1
Out of stock

3

CALIPER ASSY

1LN-2580T-00-00

1
Out of stock

4

. PISTON ASSEMBLY, CALIPER

56A-W0057-00-00

1
Out of stock

5

CALIPER SEAL KIT

56A-W0047-00-00

1

$20.83

In stock

6

BOOT 2

5R2-25937-00-00

1

$31.48

In stock

7

BOOT 2

56A-25937-00-00

1

$20.28

In stock

8

BLEED SCREW KIT

15B-W0048-00-00

1

$18.09

In stock

9

SUPPORT, PAD

56A-25919-00-00

1

$30.88

In stock

10

SUPPORT, PAD

56A-25919-10-00

1

$27.45

In stock

11

BRAKE PAD KIT

1LN-W0045-01-00

1

$63.75

In stock

12

BOLT

56A-25926-00-00

1

$11.12

In stock

13

CAP, INDICATOR

34X-25845-00-00

1

$14.55

In stock

14

BOLT, FLANGE(4FM)

95814-08030-00

1
Out of stock

15

COVER 1

55U-25715-00-00

1
Out of stock

16

SCREW(36F)

90149-06194-00

—

$3.05

In stock

17

COVER 2

1TY-25716-00-00

1
Out of stock

18

BAND

1TY-25719-00-00

1
Out of stock

19

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

20

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

21

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock
