1986 Yamaha IT200 (IT200S) Clutch Diagram

← All diagrams

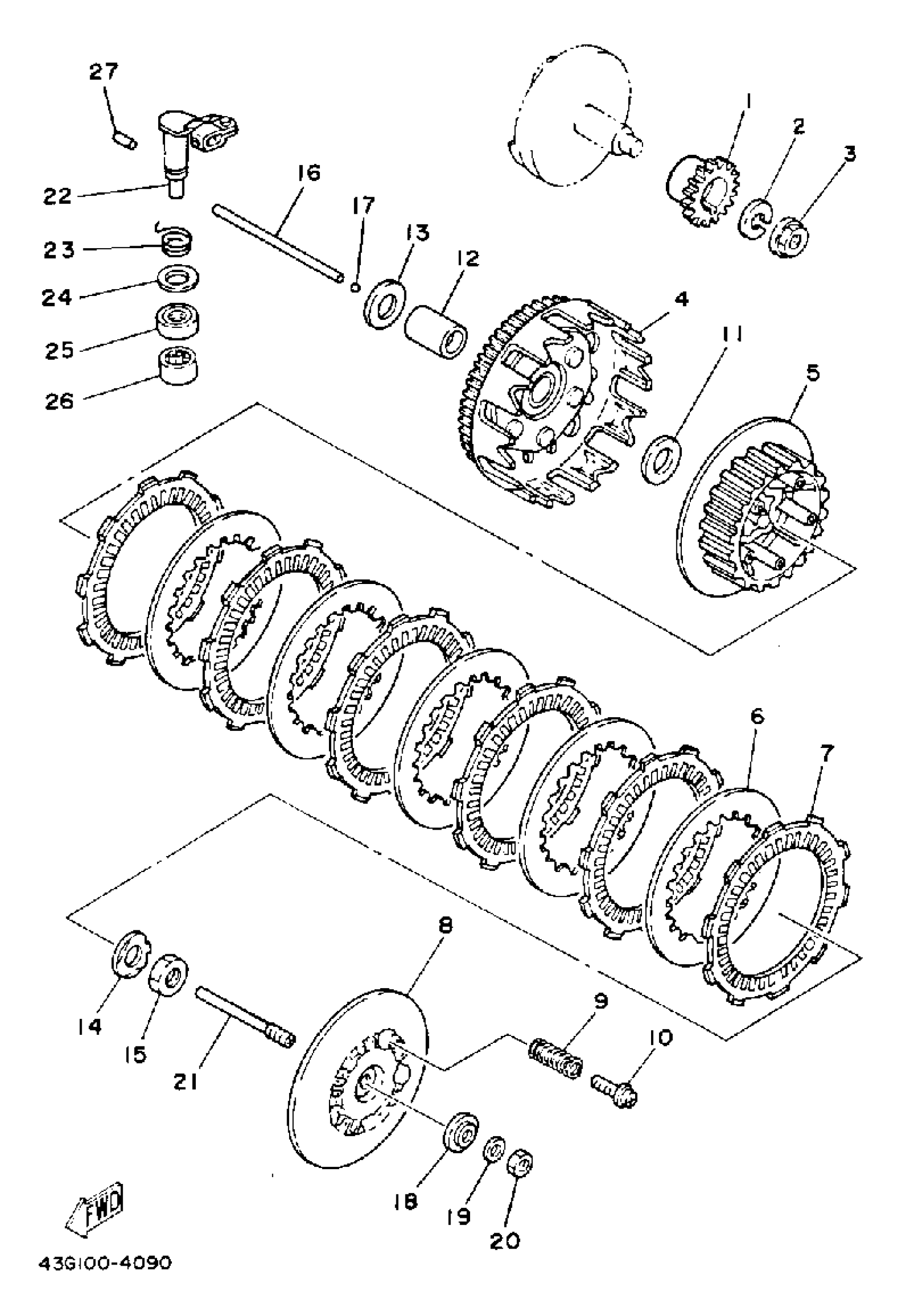

Find the part on the Clutch diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha IT200 (IT200S) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

43G-16111-00-YX

1
Out of stock

2

WASHER, SPRING (1W1)

90204-12007-00

1

$6.92

In stock

3

NUT (4V2)

90179-12335-00

—
Out of stock

4

PRI DRVN GEAR

43G-16150-00-00

1
Out of stock

5

BOSS, CLUTCH

43G-16371-00-00

1
Out of stock

6

PLATE, CLUTCH 2

137-16325-80-00

1
Out of stock

7

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

8

. PLATE, PRESSURE 1

1W1-16351-00-00

1
Out of stock

9

1

$6.17

In stock

10

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

11

WASHER, PLATE (4V2)

90201-174E1-00

1

$6.71

In stock

12

SPACER

90560-17335-00

1
Out of stock

13

WASHER, PLATE (4V2)

90201-174E1-00

1

$6.71

In stock

14

WASHER, LOCK (2K6)

90215-14204-00

1
Out of stock

15

NUT, HEXAGON

90170-14171-00

1

$7.26

In stock

16

ROD, PUSH (2)

353-16357-00-00

—
Out of stock

17

BALL

93503-16003-00

—

$2.14

In stock

18

PLATE, PUSH

1W1-16358-01-00

—

$20.06

In stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

ROD, PUSH

1W1-16356-02-00

—
Out of stock

22

PUSH LEVER ASSEMBLY

3R3-16380-02-00

1
Out of stock

23

SPRING, TORSION

90508-14426-00

1
Out of stock

24

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

25

OIL SEAL, SD-TYPE

93102-14308-00

1
Out of stock

26

BEARING, CYLINDRICAL (3R3)

93315-21429-00

—
Out of stock

27

PIN, DOWEL (409)

93604-16092-00

—

$1.94

In stock
