1984 Yamaha IT200 (IT200L) Generator Diagram

← All diagrams

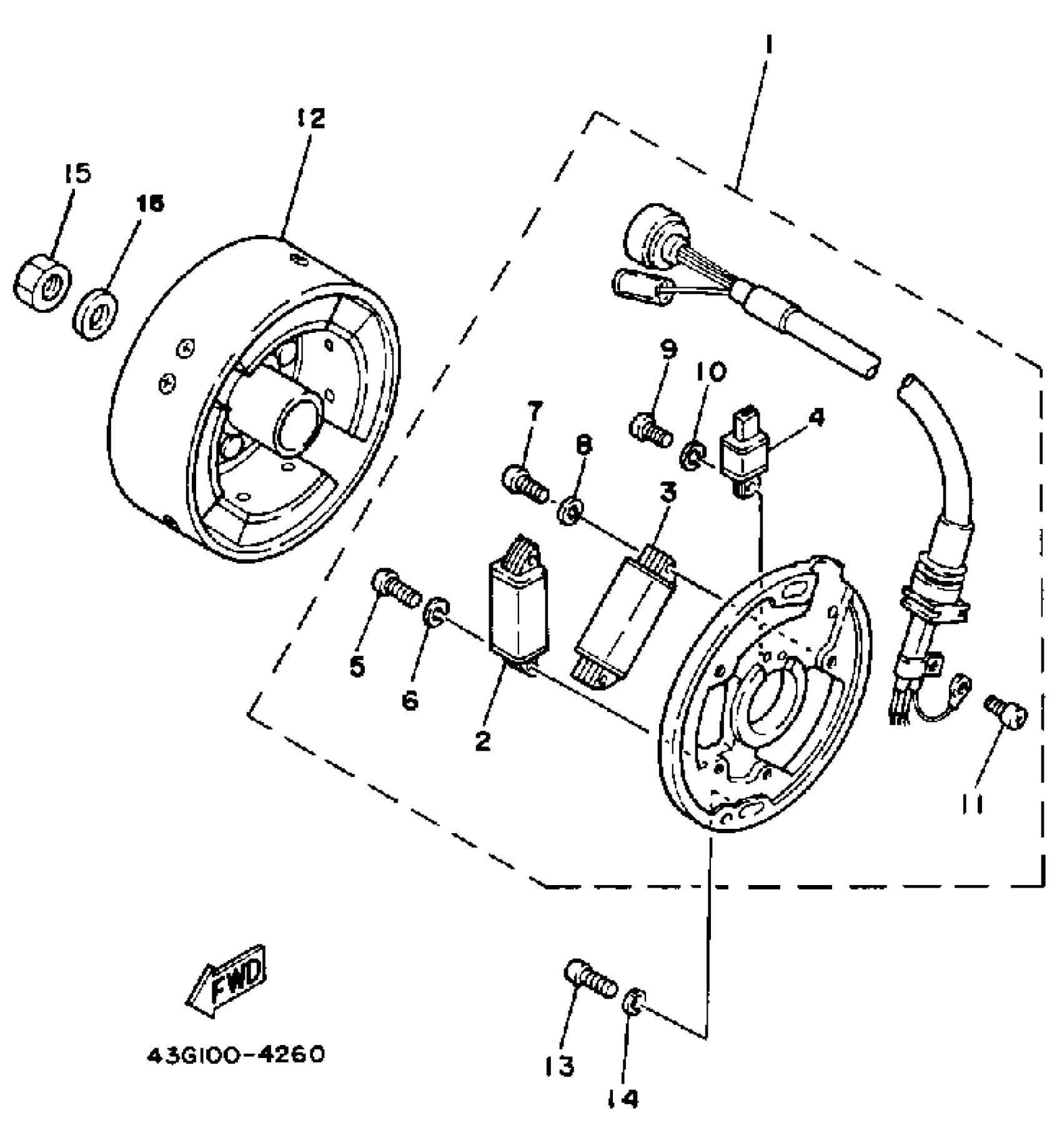

Find the part on the Generator diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha IT200 (IT200L) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

43G-85510-21-00

1
Out of stock

2

. COIL, CHARGE

23X-85520-21-00

1
Out of stock

3

. COIL, LIGHTING 1

43G-85513-20-00

1
Out of stock

4

. COIL, PULSER

43G-85580-21-00

1
Out of stock

5

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

SCREW, PAN

98507-04030-00

1

$1.51

In stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

9

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

12

ROTOR ASSEMBLY.

43G-85500-20-00

1
Out of stock

12

ROTOR ASSEMBLY

43G-85550-21-00

1
Out of stock

13

SCREW, PAN

98507-06014-00

1

$6.18

In stock

14

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

15

NUT(55K)

90170-12347-00

—

$8.43

In stock

16

WASHER, PLATE (583)

90201-12593-00

—

$6.82

In stock
