1981 Yamaha IT175 (IT175H) Shift Shaft-Pedal Diagram

← All diagrams

Find the part on the Shift Shaft-Pedal diagram for your 1981 Yamaha IT175 (IT175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

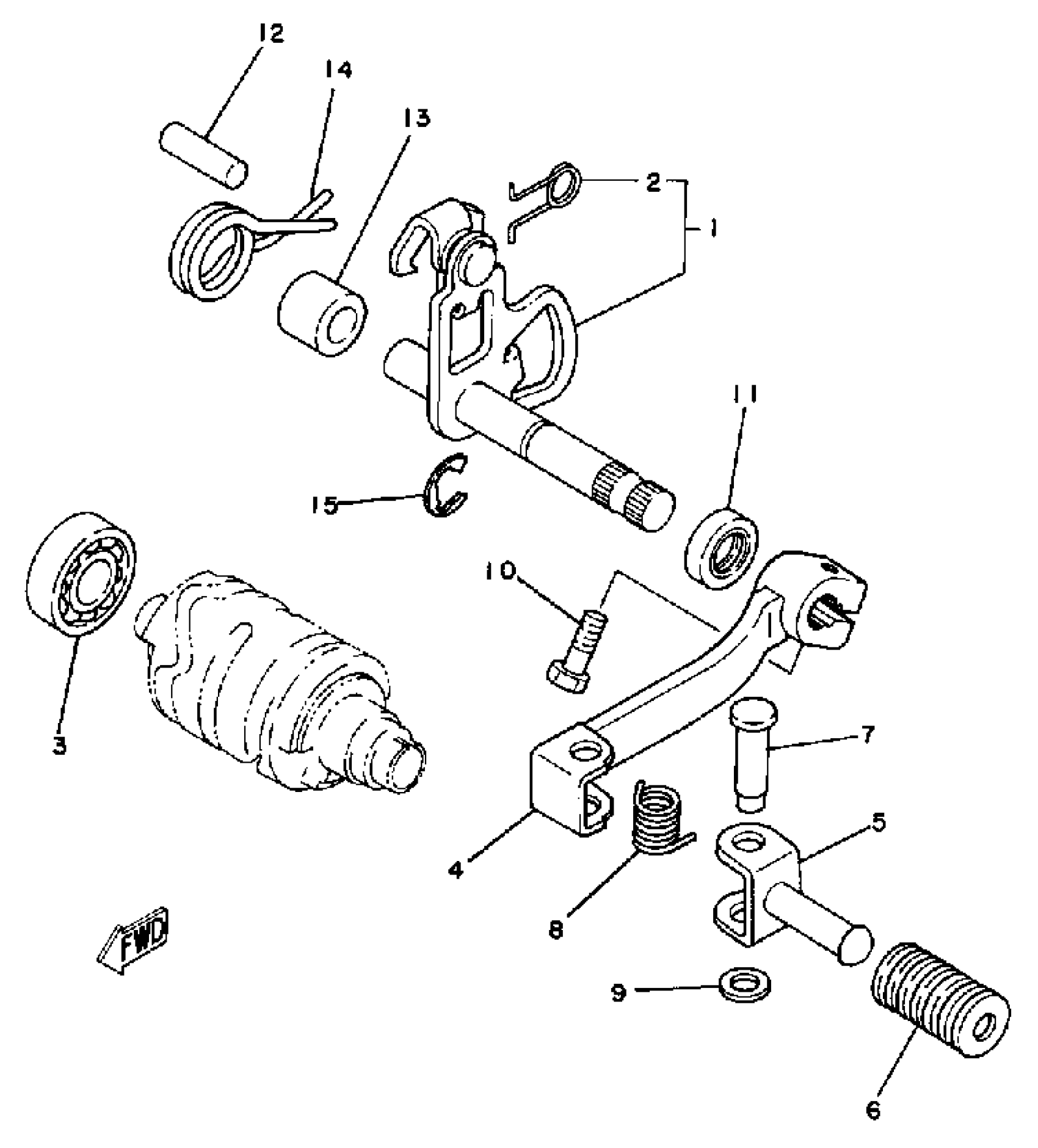

1981 Yamaha IT175 (IT175H) Shift Shaft-Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY. 1

24X-18101-01-00

1
Out of stock

2

SPRING, TORSION

(90508-09420-00)

1
Out of stock

3

BEARING(3WF)

93306-20119-00

1

$28.48

In stock

4

PEDAL,SHIFT

5X6-18110-00-00

1
Out of stock

5

PEDAL, SHIFT

3R8-18162-00-00

1
Out of stock

6

COVER, CHANGE PEDAL

1W6-18113-00-00

1

$3.91

In stock

7

PIN (90243-08017)

90243-08019-00

1
Out of stock

8

SPRING, TORSION

90508-20415-00

1
Out of stock

9

1

$6.58

In stock

10

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

11

OIL SEAL

93101-12173-00

1
Out of stock

12

PIN, DOWEL

93608-25150-00

1
Out of stock

13

SPACER

90560-11189-00

1
Out of stock

14

SPRING, TORSION (2K7)

90508-32374-00

1
Out of stock

15

CIRCLIP

99006-10600-00

1

$6.91

In stock
