1981 Yamaha IT175 (IT175H) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1981 Yamaha IT175 (IT175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

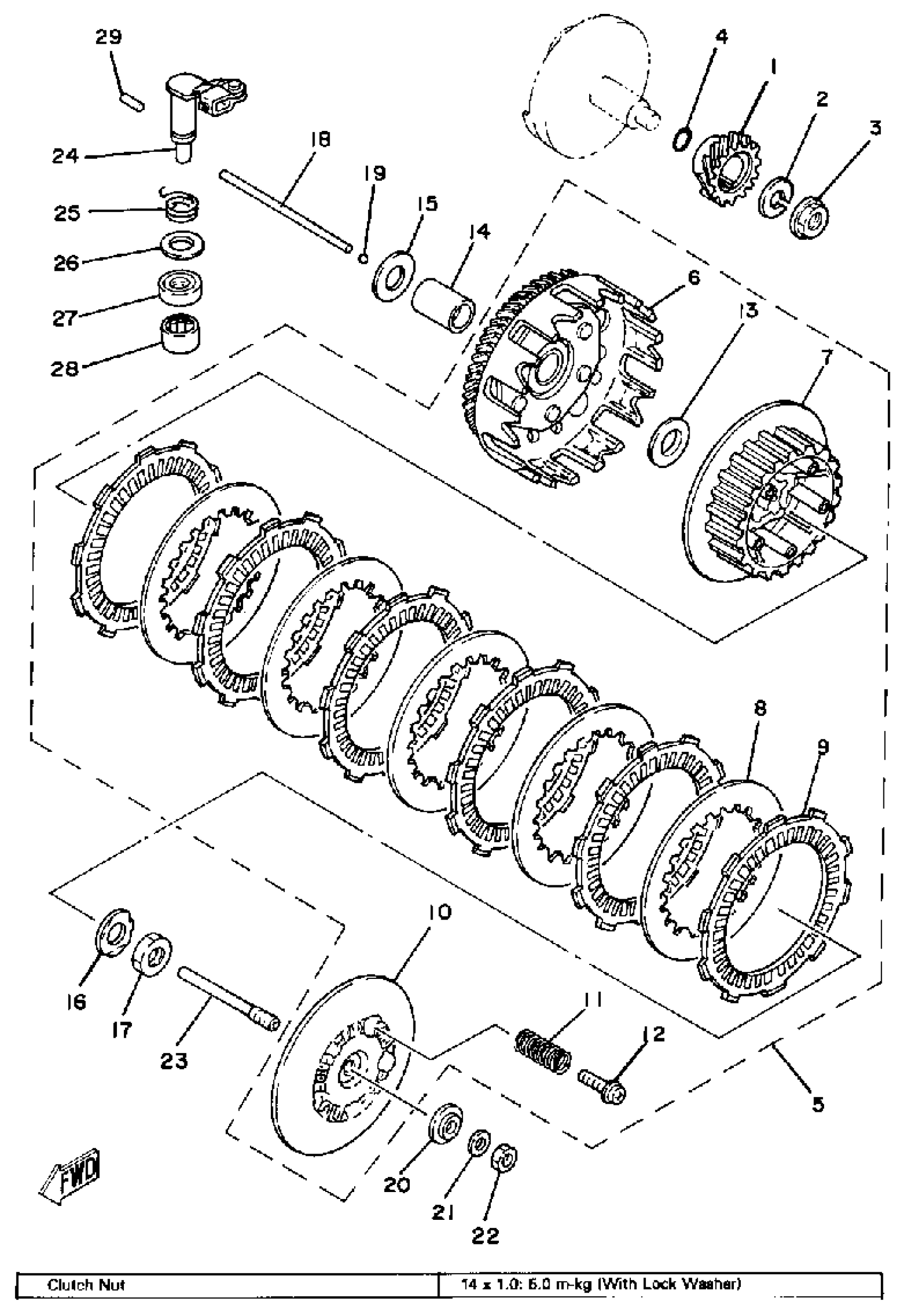

1981 Yamaha IT175 (IT175H) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRI DRIVE

3R6-16111-00-00

1
Out of stock

2

WASHER, SPRING (1W1)

90204-12007-00

1

$6.92

In stock

3

NUT (4V2)

90179-12335-00

—
Out of stock

4

O-RING (601)

93210-20027-00

1

$5.78

In stock

5

CLUTCH ASSEMBLY

(3R6-16300-00-00)

1
Out of stock

6

. PRI DRVN GEARCOMP (52T)

3R6-16150-00-00

1
Out of stock

7

. BOSS, CLUTCH

1G8-16371-00-00

1
Out of stock

8

PLATE, CLUTCH 2

137-16325-80-00

1
Out of stock

9

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

10

. PLATE, PRESSURE 1

1W1-16351-00-00

1
Out of stock

11

SPRING, COMPRESSION (400)

90501-20361-00

1

$10.92

In stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

13

WASHER, PLATE (4V2)

90201-174E1-00

1

$6.71

In stock

14

SPACER

90560-17190-00

1
Out of stock

15

WASHER, PLATE (4V2)

90201-174E1-00

1

$6.71

In stock

16

WASHER, LOCK (2K6)

90215-14204-00

—
Out of stock

17

NUT, HEXAGON

90170-14171-00

—

$7.26

In stock

18

ROD, PUSH 2

2X3-16357-00-00

—
Out of stock

19

BALL

93503-16003-00

—

$2.14

In stock

20

PLATE, PUSH

1W1-16358-01-00

—

$20.06

In stock

21

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

ROD, PUSH

1W1-16356-02-00

—
Out of stock

24

PUSH LEVER ASSEMBLY

3R3-16380-02-00

1
Out of stock

25

SPRING, TORSION

90508-14426-00

1
Out of stock

26

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

27

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

28

BEARING, CYLINDRICAL (3R3)

93315-21429-00

—
Out of stock

29

PIN, DOWEL (409)

93604-16092-00

—

$1.94

In stock
