1981 Yamaha IT175 (IT175H) Shift CAM-Fork Diagram

← All diagrams

Find the part on the Shift CAM-Fork diagram for your 1981 Yamaha IT175 (IT175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

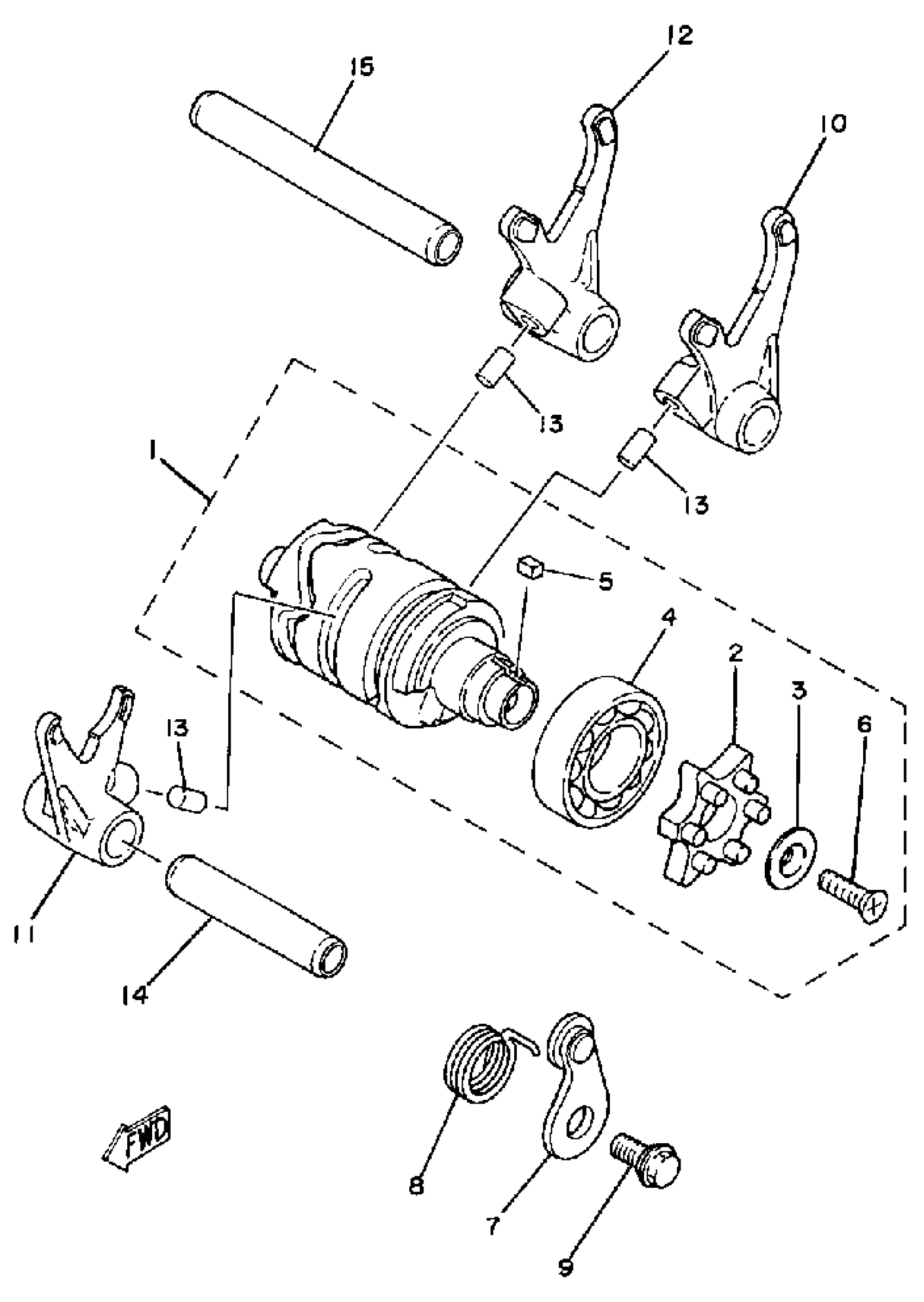

1981 Yamaha IT175 (IT175H) Shift CAM-Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

24X-18540-00-00

1
Out of stock

2

SEGMENT

3R4-18185-00-00

1
Out of stock

3

PLATE, SIDE 1

3R4-18561-00-00

1
Out of stock

4

BEARING (7K2)

93306-00423-00

1

$30.87

In stock

5

KEY, STRAIGHT (3R4)

90282-04036-00

1

$7.03

In stock

6

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

7

STOPPER LEVER ASSEMBLY

3R3-18140-00-00

1
Out of stock

8

SPRING, TORSION

90508-26435-00

1
Out of stock

9

BOLT

90109-06190-00

1

$3.49

In stock

10

FORK, SHIFT 1

3R3-18511-00-00

1
Out of stock

11

FORK, SHIFT 2

3R3-18512-00-00

1
Out of stock

12

FORK, SHIFT 3

3R3-18513-00-00

1
Out of stock

13

PIN STRAIGHT 257185520000

90250-06013-00

1
Out of stock

14

BAR, SHIFT FORK GUIDE 1

4BA-18531-00-00

—
Out of stock

15

BAR, SHIFT FORK GUIDE 2

5X5-18535-01-00

1
Out of stock
← Clutch Shift Shaft-Pedal →

More Drive & Transmission diagrams
