1979 Yamaha IT175 (IT175F) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1979 Yamaha IT175 (IT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

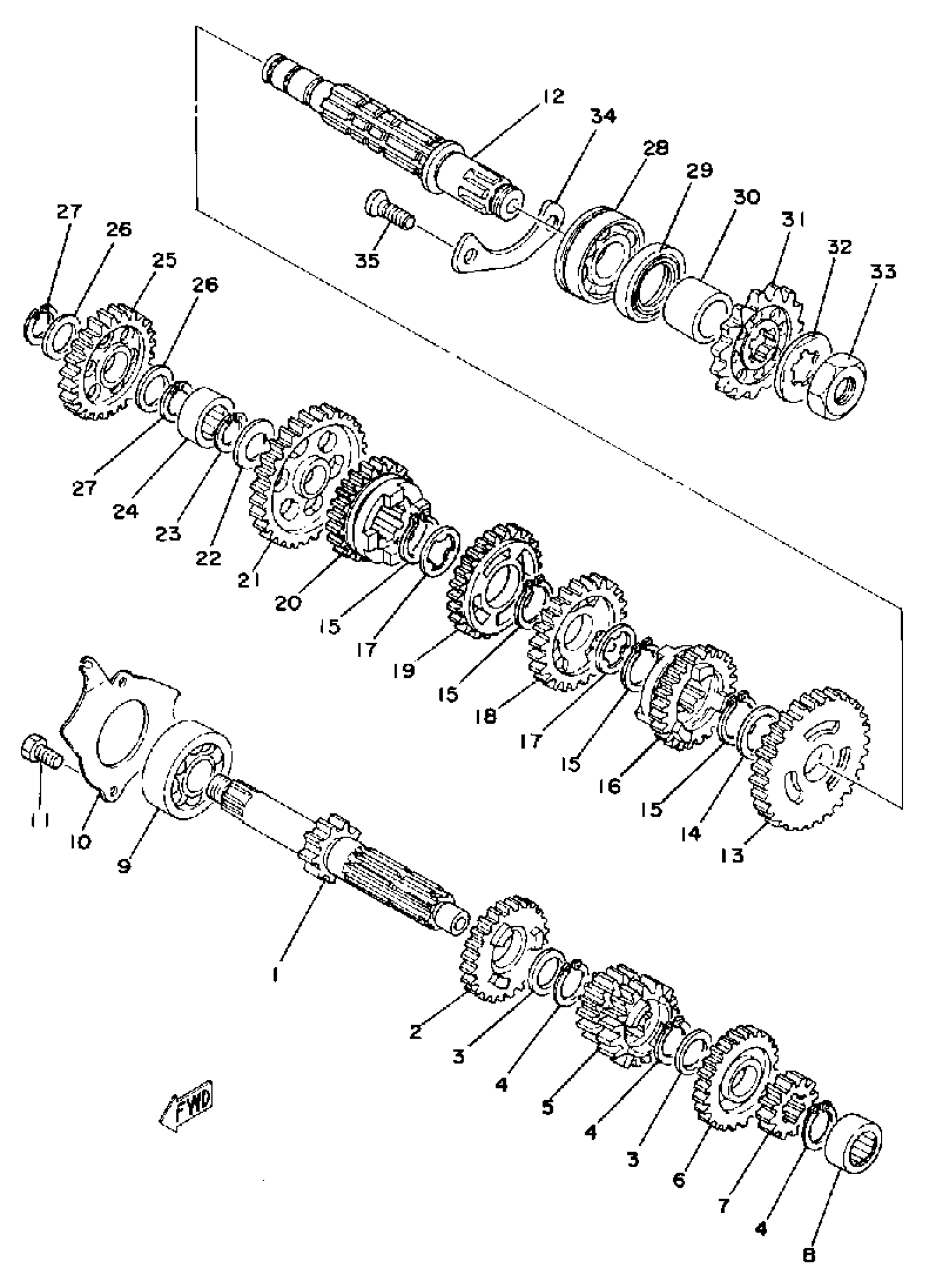

1979 Yamaha IT175 (IT175F) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

1W2-17411-00-00

1
Out of stock

2

GEAR, 5TH PINION

1W2-17151-00-00

1
Out of stock

3

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 3RD PINION

2W6-17131-01-00

1
Out of stock

6

GEAR, 6TH PINION

1W2-17161-00-00

1
Out of stock

7

GEAR, 2ND PINION

1W2-17121-00-00

1
Out of stock

8

1

$38.21

In stock

9

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

10

PLATE, BEARING COVER

1W1-17471-01-00

1

$5.32

In stock

11

BOLT (661)

97013-06012-00

1

$4.71

In stock

12

AXLE, DRIVE

1W1-17421-00-00

1
Out of stock

13

GEAR, 2ND WHEEL

1W2-17221-01-00

1
Out of stock

14

WASHER, PLATE (537)

90201-22555-00

1
Out of stock

15

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

16

GEAR, 6TH WHEEL

1W2-17261-00-00

1
Out of stock

17

WASHER (537)

90209-18135-00

—
Out of stock

18

GEAR, 4TH WHEEL

1W2-17241-00-00

1
Out of stock

19

GEAR, 3RD WHEEL

2W6-17231-01-00

1
Out of stock

20

GEAR, 5TH WHEEL

2W6-17251-01-00

1
Out of stock

21

GEAR, 1ST WHEEL

1W2-17211-01-00

1
Out of stock

22

WASHER (566)

90201-15701-00

—

$6.17

In stock

23

CIRCLIP

93440-15012-00

—
Out of stock

24

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

25

GEAR, KICK IDLE

525-15651-00-00

—

$40.08

In stock

26

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

—

$4.12

In stock

27

CIRCLIP

93440-15012-00

—
Out of stock

28

BRG,R-B 6304 52MM 150G NT

93306-30411-00

—

$51.96

In stock

29

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

30

COLLAR (3V3)

90387-202A0-00

—

$18.57

In stock

31

SPROCKET, DRIVE 11T

93832-11007-00

1
Out of stock

31

SPROCKET, DRIVE 12T

93832-12014-00

1
Out of stock

31

SPROCKET, DRIVE 13T

93832-13027-00

1
Out of stock

32

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

33

NUT (1L8)

90179-16226-00

—

$7.46

In stock

34

PLATE 2, BEARING COVER

1W1-15381-00-00

—

$4.11

In stock

35

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock
