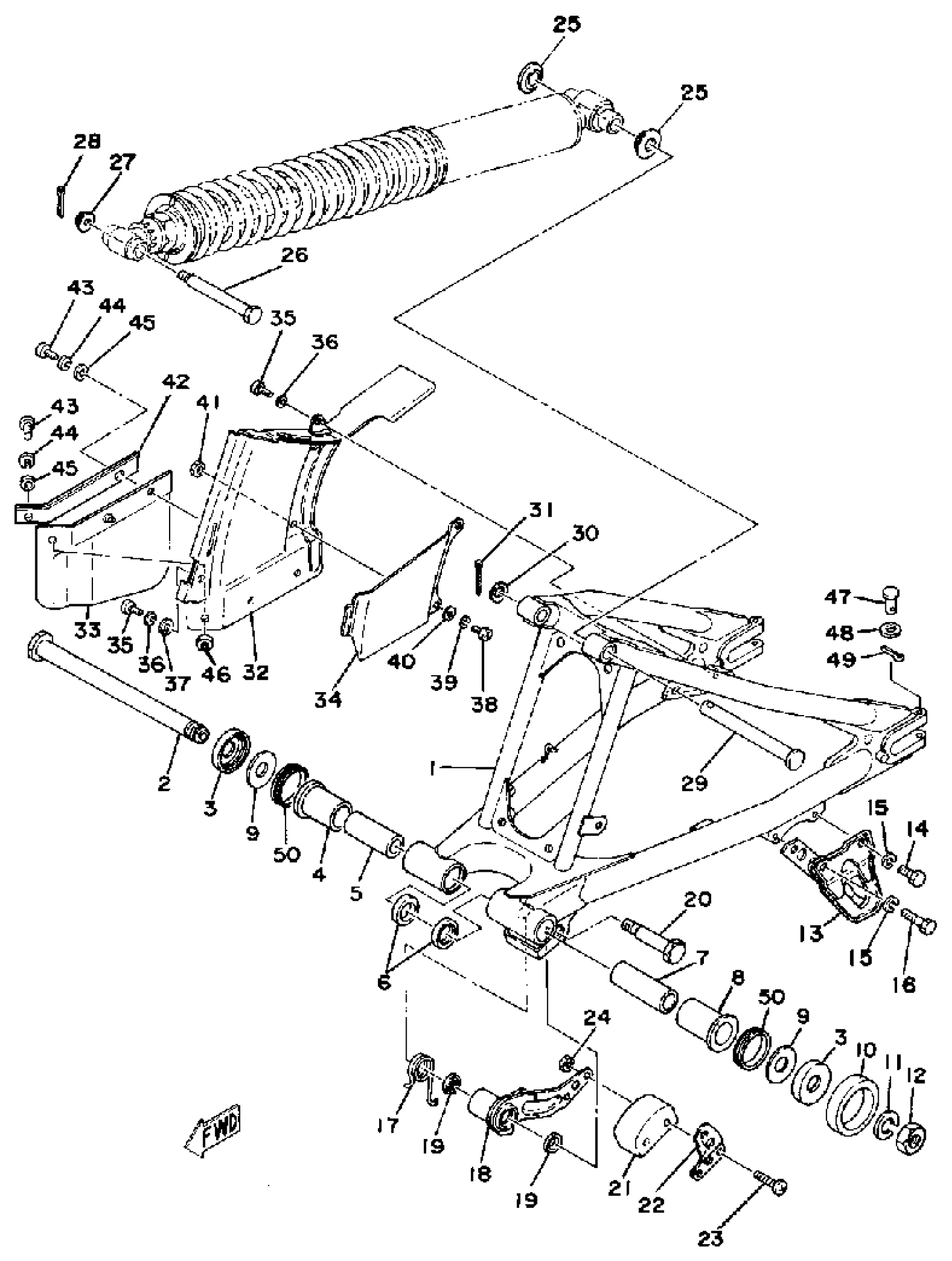

Find the part on the Rear Arm-Chain Case diagram for your 1979 Yamaha IT175 (IT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha IT175 (IT175F) Rear Arm-Chain Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(2W6-22110-01-33)

1
Out of stock

2

SHAFT, PIVOT

1W1-22141-00-00

1
Out of stock

3

COVER, THRUST

2K6-22128-01-00

1

$26.13

In stock

4

BUSH (5A9)

90386-22102-00

1

$35.95

In stock

5

BUSH, SOLID

90380-16063-00

1
Out of stock

6

OIL SEAL (20.9X28X4-1W1)

93109-22019-00

1
Out of stock

7

BUSH, SOLID

90380-16056-00

1
Out of stock

8

BUSH

3Y1-22184-01-00

1

$33.79

In stock

9

SHIM,REAR ARM

240-22127-00-00

1

$5.74

In stock

10

SEAL, GUARD

431-22151-03-00

1
Out of stock

11

WASHER(JN5)

92907-16100-00

1

$12.08

In stock

12

NUT

90170-16111-00

1
Out of stock

13

GUARD, CHAIN

2W6-22153-00-00

1
Out of stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

17

SPRING, TORSION (1J4)

90508-35350-00

—
Out of stock

18

ARM, TENSIONER

(1W1-22179-01-00)

1
Out of stock

19

OIL SEAL (2K8)

93109-14021-00

—

$10.60

In stock

20

BOLT (1J4)

90109-10483-00

—

$8.28

In stock

21

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

1
Out of stock

22

GUIDE, CHAIN

1W1-22187-00-00

—
Out of stock

23

SCREW, PAN

98507-05035-00

—

$6.69

In stock

24

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

25

COVER, THRUST

1W1-22128-00-00

—

$17.09

In stock

26

BOLT

90109-08480-00

1
Out of stock

27

NUT, SPEC''L SHAPE

90179-08243-00

1
Out of stock

28

PIN, COTTER

91490-20025-00

—

$1.31

In stock

29

PIN,CLEVIS

90240-12059-00

1
Out of stock

30

WASHER, PLATE(663)

92990-12600-00

—

$6.68

In stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

CASE, CHAIN

(1W2-22311-00-33)

1
Out of stock

33

RUBBER, CHAIN CASE

(1W2-22313-00-00)

1
Out of stock

34

GUARD, CHAIN

(1W2-22318-00-00)

1
Out of stock

35

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

36

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

37

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

38

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

39

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

40

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

41

NUT, U

95617-05100-00

—

$6.68

In stock

42

PLATE, CHN CS RUBR

(1W2-22347-00-00)

1
Out of stock

43

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

44

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

45

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

46

NUT, U

95617-05100-00

—

$6.68

In stock

47

PIN, CLEVIS (1M1)

91701-06042-00

—

$5.32

In stock

48

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

49

PIN, COTTER

91490-20025-00

—

$1.31

In stock

50

OIL SEAL (35X41.5X8-483)

93108-35004-00

—

$12.58

In stock
