1977 Yamaha IT175 (IT175D) Headlight Diagram

← All diagrams

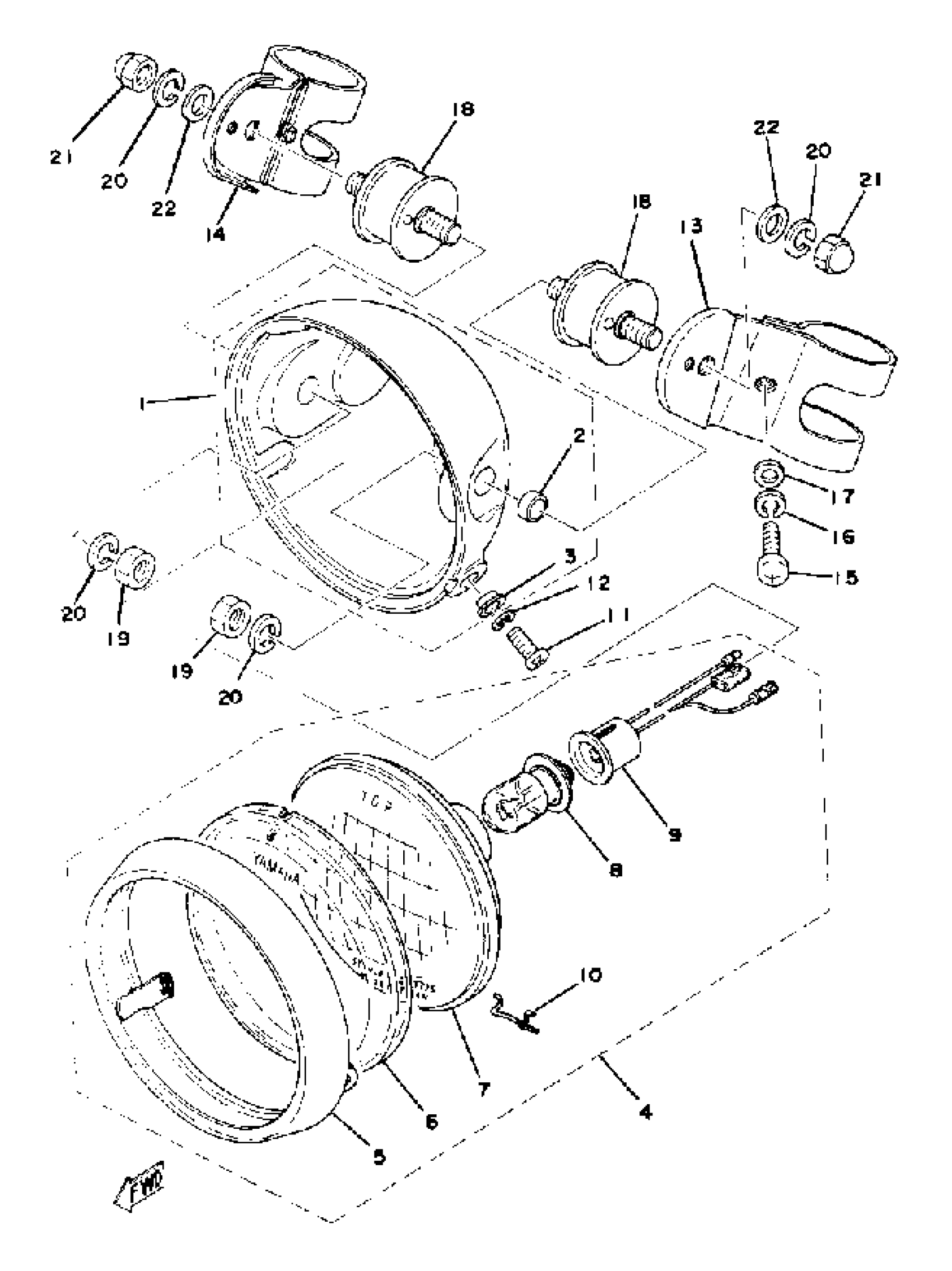

Find the part on the Headlight diagram for your 1977 Yamaha IT175 (IT175D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha IT175 (IT175D) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

1W2-84130-60-00

1
Out of stock

2

COLLAR, BODY FTNG

(1W2-84145-60-00)

1
Out of stock

3

. COLLAR, BODY FTNG

1L9-84338-60-00

1
Out of stock

4

TOOL

UNA-VAILA-BL-EI

1
Out of stock

5

RIM, HEADLIGHT

(1W2-84115-60-00)

1
Out of stock

6

. COVER, HEADLIGHT

1W2-84144-60-00

1
Out of stock

7

. LENS ASSEMBLY

3R8-84120-60-00

1
Out of stock

8

. BULB, HL 6V25/25W

527-84114-09-XX

1
Out of stock

9

. SOCKET

1W2-84112-60-00

1
Out of stock

10

. SPRING, REFLECTOR

1W2-84324-60-00

1
Out of stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

STAY, HEADLIGHT 1

(1W2-84118-00-33)

1
Out of stock

14

STAY, HEADLIGHT 2

(1W2-84119-00-33)

1
Out of stock

15

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

DAMPER, HDLT STAY

1W2-84143-00-00

1
Out of stock

19

NUT(6L2)

95333-08600-00

—

$3.20

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

NUT, CROWN

95303-08800-00

—

$7.52

In stock

22

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
