1977 Yamaha IT175 (IT175D) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1977 Yamaha IT175 (IT175D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

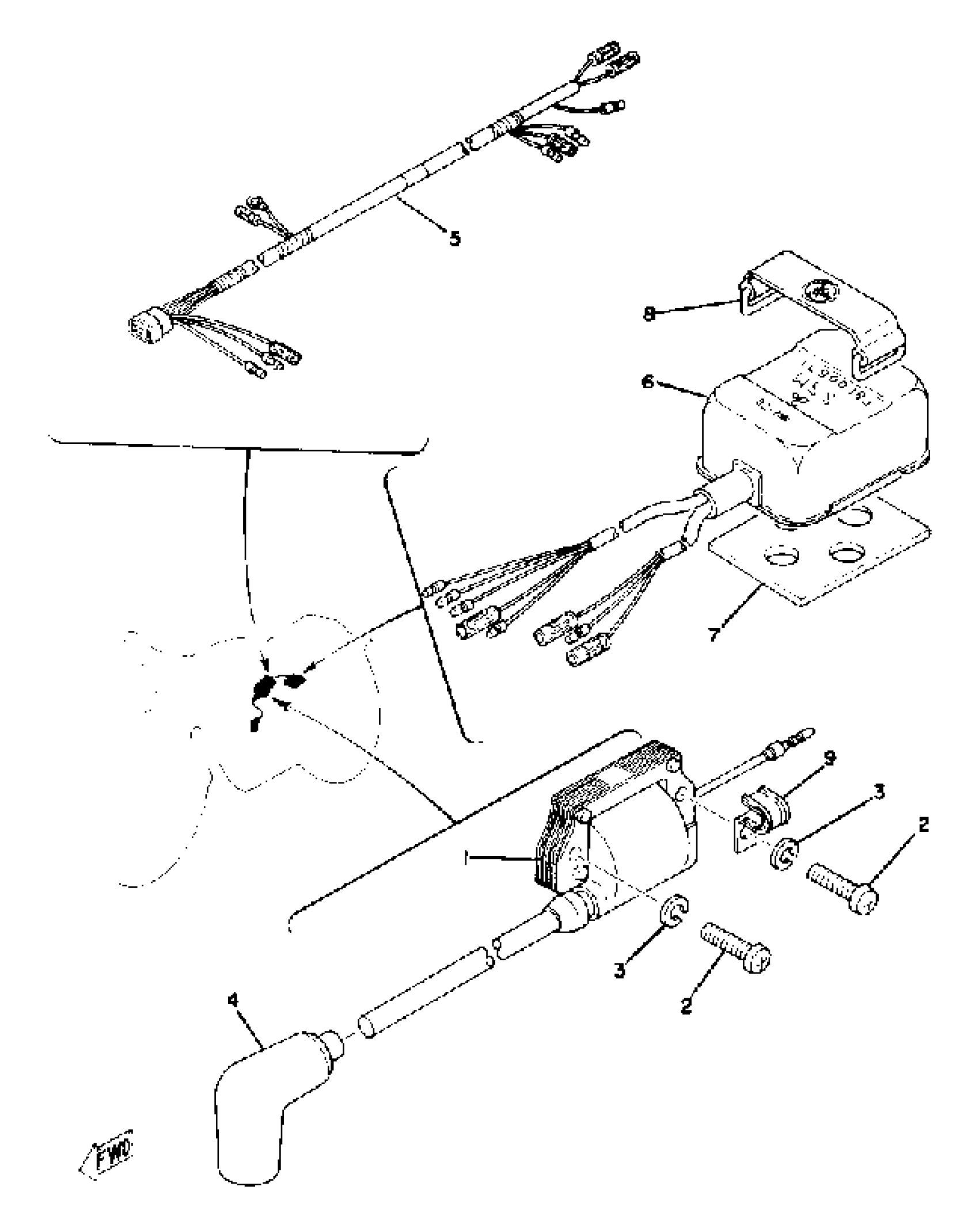

1977 Yamaha IT175 (IT175D) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

PLUG CAP ASSEMBLY

294-82370-00-00

1
Out of stock

5

WIRE HARNESS ASSEMBLY

(1W2-82590-01-00)

1
Out of stock

6

CDI UNIT ASSEMBLY

1W2-85540-20-00

1
Out of stock

7

DAMPER

1M2-85547-00-00

1
Out of stock

8

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

9

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock
← C - D - I - Magneto Handle - Wire →
