1981 Yamaha IT125 (IT125H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha IT125 (IT125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

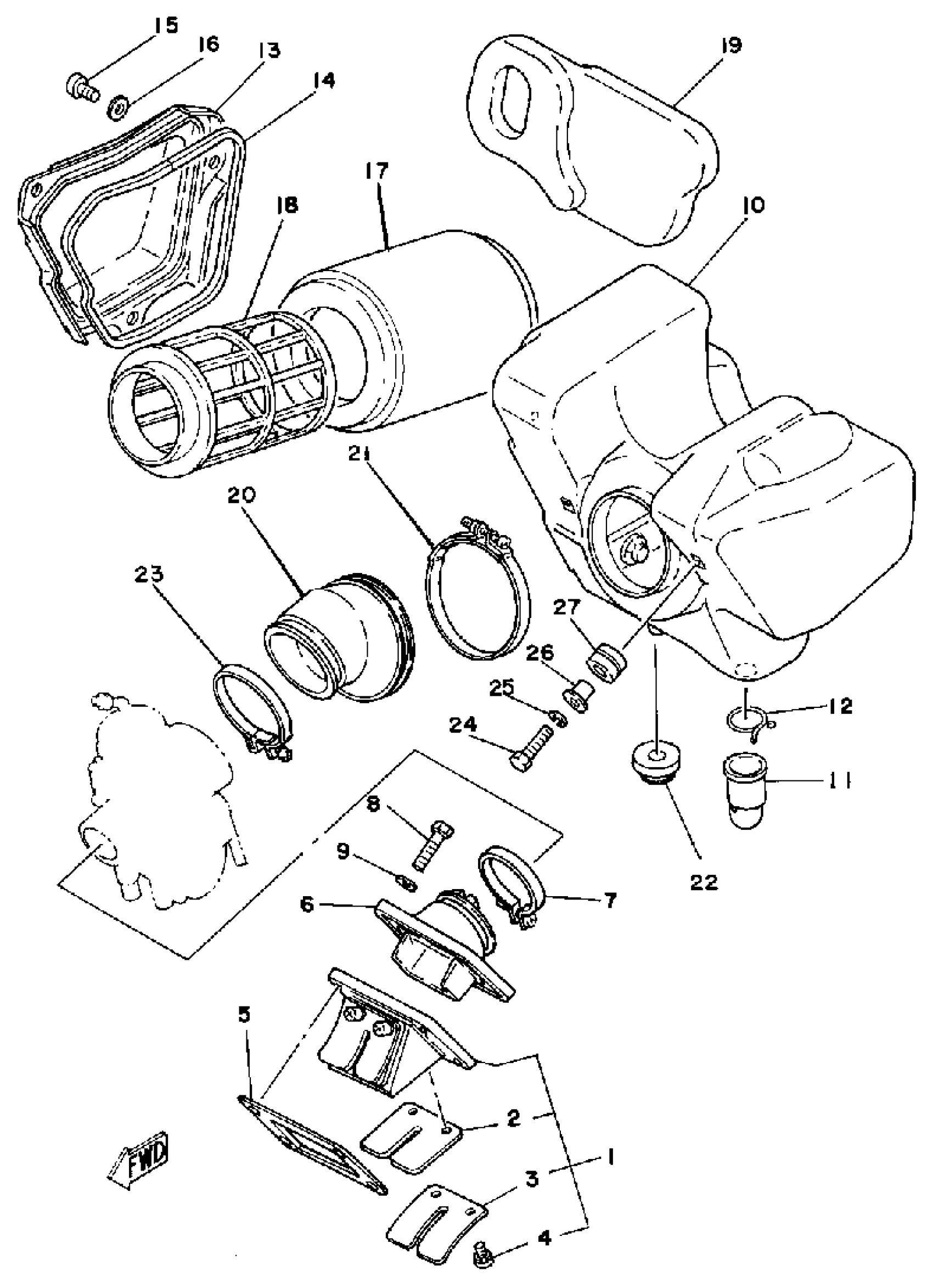

1981 Yamaha IT125 (IT125H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

10V-13610-01-00

1

$137.01

In stock

2

REED VALVE 1

10V-13613-01-00

1

$25.35

In stock

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

3TT-13621-00-00

1

$17.31

In stock

6

JOINT, CARBURETOR

537-13565-01-00

1
Out of stock

7

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

AIR CLNR CASE ASSEMBLY

(3R9-14401-00-00)

1
Out of stock

11

SEAL

1W4-14457-00-00

1
Out of stock

12

CLIP

90467-20M15-00

1

$6.23

In stock

13

CAP, CLEANER CASE 1

3R9-14412-00-00

1
Out of stock

14

SEAL

50M-14462-01-00

1

$8.99

In stock

15

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

16

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

17

ELEMENT, AIR CLNR (3R9-14450-00)

3R9-14451-00-00

1
Out of stock

18

GUIDE, ELEMENT

3R9-14458-00-00

1
Out of stock

19

PLATE, ELEMENT FTNG

3R9-14468-00-00

1
Out of stock

20

JOINT, AIR CLNR 1

3R9-14453-00-00

1
Out of stock

21

HOSE CLAMP ASSY

90450-75002-00

—

$10.40

In stock

22

GROMMET (509)

90480-18171-00

—

$6.55

In stock

23

HOSE CLAMP ASSY

90450-53008-00

—
Out of stock

24

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

27

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock
