CARBURETOR

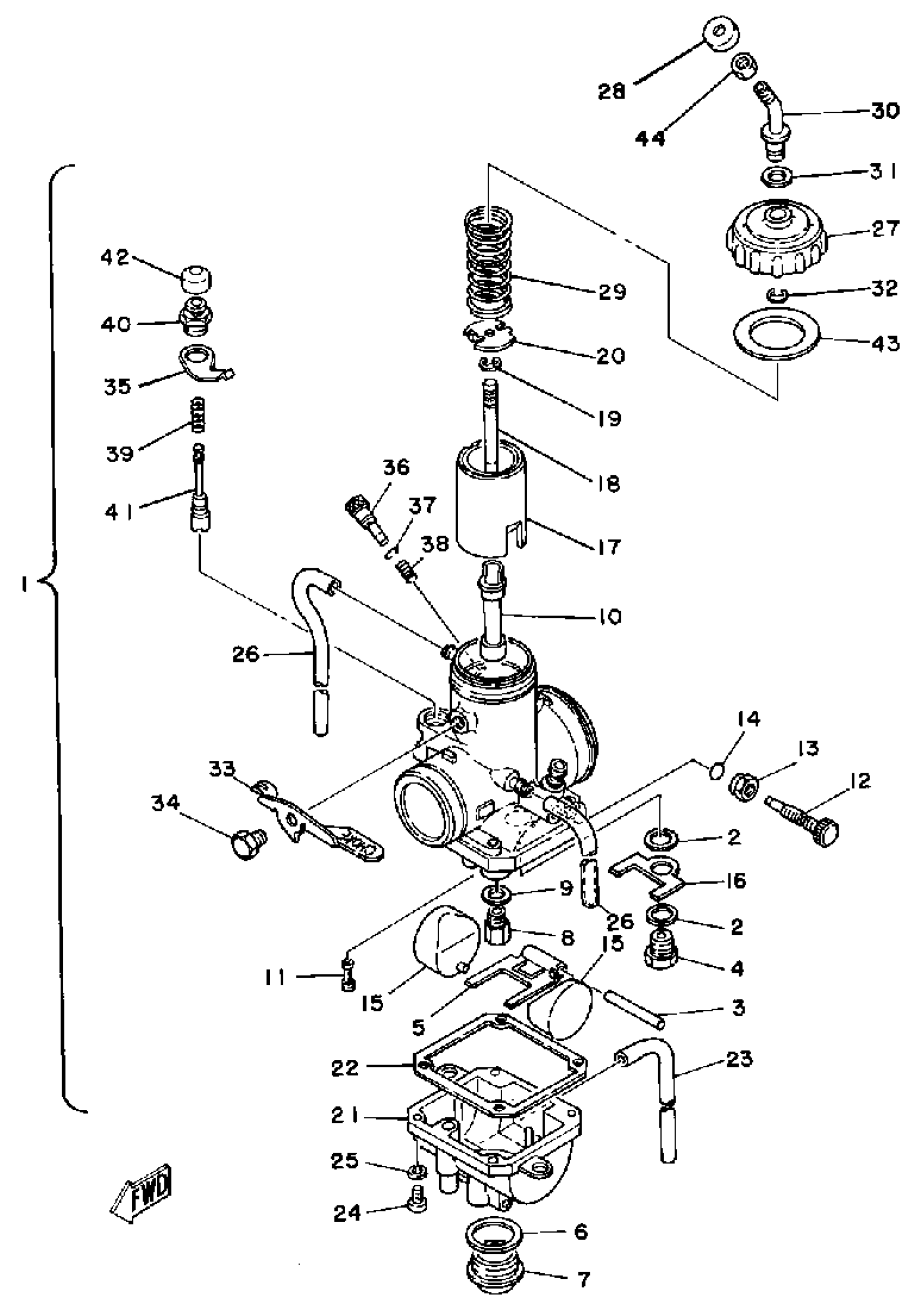

1981 Yamaha IT125 (IT125H) Carburetor Diagram
Find the part on the Carburetor diagram for your 1981 Yamaha IT125 (IT125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY 1
3R9-14101-00-00
2
ARM, FLOAT
(2K5-14187-00-00)
3
PIN, FLOAT
537-14186-00-00
7
PLUG, SCREW
(537-14115-00-00)
8
JET,MAIN #190
137-14143-38-A0
8
JET, MAIN #200
137-14143-40-A1
9
WASHER, MAIN JET
(537-14153-00-00)
10
. NOZZLE, MAIN
278-14141-52-00
11
. JET, PILOT #40
193-14142-40-A1
12
. SCREW, THROTTLE
537-14122-00-00
13
. NUT, CABLE ADJUSTING
537-14161-00-00
14
O-RING
214-14147-00-00
15
. FLOAT
280-14185-00-00
16
PLATE
(537-14146-00-00)
17
VALVE, THROTTLE 1
(537-14112-20-00)
18
. NEEDLE
1J4-14116-19-00
20
. SEAT, SPRING
537-14136-00-00
21
BODY, FLOAT CHMBR 1
(537-14181-16-00)
22
. GASKET, FLOAT CHAMBER
537-14184-00-00
23
PIPE, AIR VENT
183-14197-01-00
26
. PIPE, OVERFLOW
310-14196-00-00
27
. TOP, MIXING CHAMBER
2K5-14158-00-00
29
. SPRING, THROTTLE VALVE
537-14131-00-00
30
. GUIDE, CABLE
2K5-14155-00-00
33
. LEVER, STARTER 1
537-14175-00-00
34
. BOLT, HOLDING
537-14162-00-00
35
. PLATE, STARTER LEVER
537-14178-00-00
36
AIR SCREW SET
10W-14104-00-00
39
. SPRING, PLUNGER
500-14135-00-00
40
. CAP, PLUNGER
802-14174-00-00
41
. PLUNGER, STARTER
174-14171-00-00
42
. COVER, PLUNGER CAP
802-14173-00-00
43
. GASKET
2K5-14198-00-00
