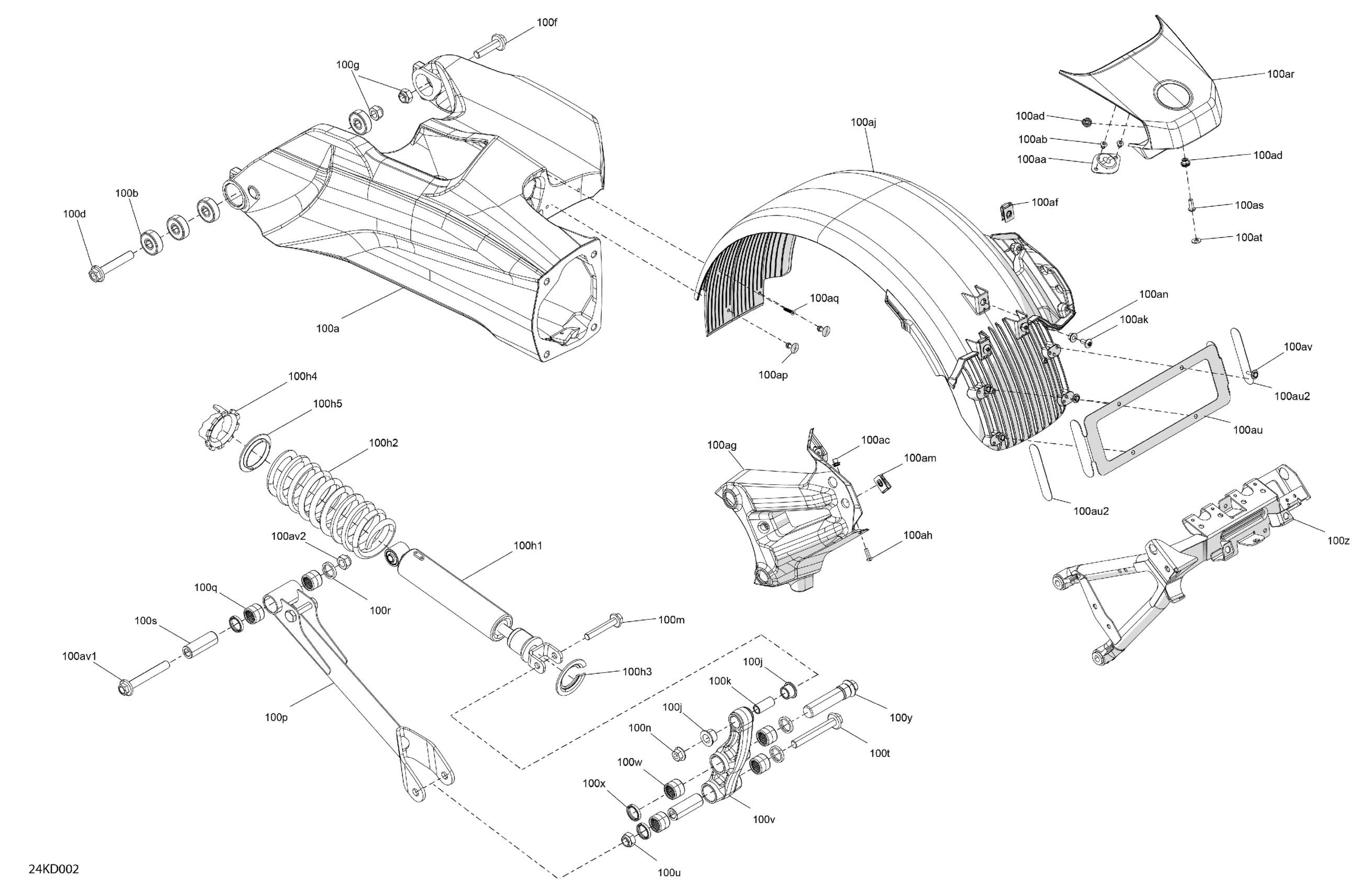

Can-Am RYKER 900 ACE - F2RB - STD - Deep Black, 2024 Suspension - Rear Diagram

#

Description
Price

100av1

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$6.77

100av2

Elastic Stop Nut M12

232521416

$1.69

100a

Swing Arm

706004488

$656.99

100b

Ball Bearing, ID 12, OD 37, L 12

706002649

$14.81

100d

Hex. Flange Screw M12 X 70

250000858

$3.80

100f

Hex. Flange Screw M12 X 45, Scotch Grip

207524556

$7.51

100g

Elastic Stop Nut M12

232521416

$1.69

100h1

Rear Shock Absorber

706002531

$137.49

100h2

Carbon Black, Compression Spring

706005270

$50.99

100h3

Spring Stopper

706203670

$2.69

100h4

Cam Adjustment

706003123

$8.19

100h5

Spring Guide

706004247

$9.19

100j

Urethane Bushing

503189117

$8.19

100k

Spacer

706002678

$3.99

100m

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$4.50

100n

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

100p

Suspension Arm Lever, Primary

706002533

$158.99

100q

Bearing, Needles

706002965

$12.71

100r

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

100s

Axle, Suspenion Arm

706002534

$20.99

100t

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$6.77

100u

Elastic Stop Nut M12

232521416

$1.69

100v

Suspension Arm Lever, Secondary

706202664

$158.99

100w

Bearing, Needles

706002965

$12.71

100x

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

100y

Pin Threaded M25 X 1.5 S.Grip, Lever

706002961

$36.99

100z

Rear Fender Support

705014612

$114.99

100aa

Grommet Ass'y

705005055

$13.49

100ab

Rivet 3/16"

293150102

$0.70

100ac

Insert M5 - 0.8

293450267

$4.59

100ad

Insert Half Hex Body M6 x 1.0

250100199

$3.19

100af

Panel Nut M6 X 1.0

250100208

$1.46

100ag

LH Fender Trim Support

705013621

$18.49

100ah

Torx Truss Screw M5 X 16, T25

250000578

$2.11

100aj

Deep Black, Rear Fender

705013618

$139.99

100ak

Torx Truss M6X14

250000789

$5.39

100am

Panel Nut M6 X 1.0

250100208

$1.46

100an

Hex. Flange Nut M6

233061414

$1.68

100ap

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

100aq

Screw 8-32

250001097

$2.89

100ar

Rear Fender Trim

706003151

$14.99

100as

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

100at

Flat Washer

224061121

$0.53

100au

License Plate Support Ass'y

706005434

$38.99

100au2

Amber Reflector

520002069

$4.99

100av

Screw M4 X 16

250000725

$3.49
