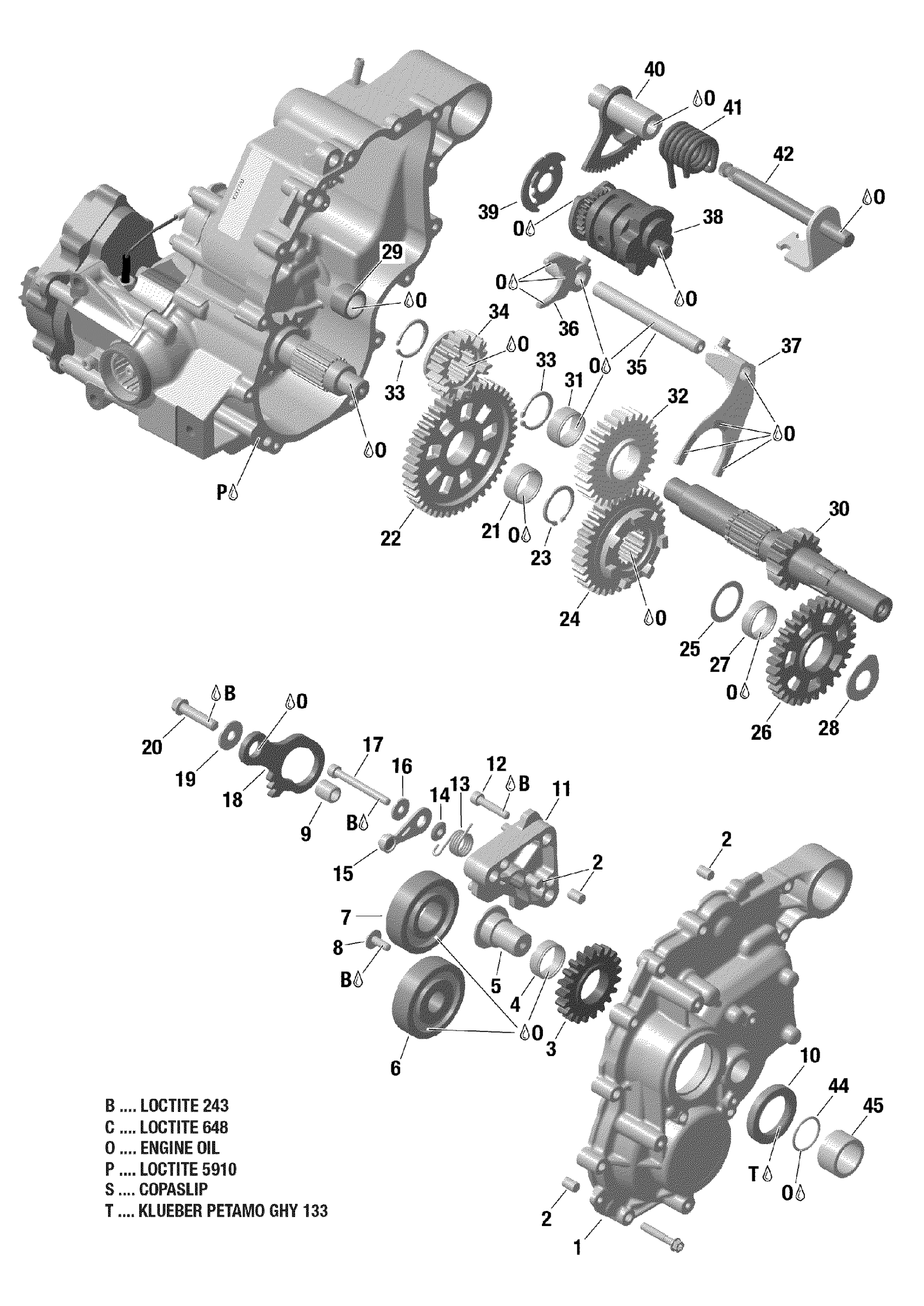

Can-Am OUTLANDER - 4X4 - DPS - 650 EFI - 2BJA - Orange Crush, 2018 ROTAX - Gear Box 2 - 420684828 Diagram

#

Description
Price

1>6

LH Gear Housing Ass'y | Includes 1a to 10

420212215

$535.35

2

Center Pin 8 X 12

420632010

$3.07

3

Intermedite Gear, 21 Teeth

420434582

$40.74

4

Needle Bearing | See Item 21a

420232654

$19.94

5

Intermedite Gear Shaft

420620681

$50.74

6

Ball Bearing

420632295

$45.12

7

Ball Bearing

420932822

$28.97

8

Torx Screw M6 X 16

420241529

$1.56

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Oil Seal

420950089

$18.43

11

Support

420611451

Unavailable

12

Socket Head Screw M6 X 30

205063044

$1.42

13

Index Spring

420239561

$11.98

14

Step Ring

420227717

$10.98

15

Index Lever

420248526

$18.43

16

Washer

420827300

$4.71

17

Allen Screw M6 X 55

420240332

$4.62

18

Kit Parking Lock Lever Assembly

703501128

$156.89

19

Plain Washer

420227937

$2.75

20

Torx Flange Screw M8 X 35

420641188

$6.11

21

Needle Bearing

420632070

$23.05

22

Pinion Gear, 46 Teeth

420435730

$102.28

23

Retaining Ring

420845772

$6.98

24

Pinion Gear, 35 Teeth

420434547

$95.35

25

Thrust Washer

420427011

$5.52

26

Pigion Gear, 31 Teeth

420434532

$64.58

27

Needle Bearing | See Item 21a

420232654

$19.94

28

Thrust Washer Set, CVT Side

420281302

$83.05

29

Needle Bushing

420832240

$19.94

30

Countershaft, 14 Teeth

420620674

$140.59

31

Needle Bearing

420632070

$23.05

32

Pinion Gear, 28 Teeth

420934102

$71.51

33

Retaining Ring

420845772

$6.98

34

Shift Gear, 20 Teeth

420435740

$65.35

35

Fork Spindle

420258389

$23.05

36

Shifting Fork

420657311

$85.49

37

Shifting Fork

420657321

$83.05

38

Kit Parking Lock Lever Assembly

703501128

$156.89

39

Isolating Washer

420626092

$6.45

40>42

Shift Shaft Ass'y

420620923

$91.51

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Torx Flange Screw M6 X 35

420440274

$0.83

44

O-Ring

420631612

$3.52

45

Distance Ring

420647267

$40.37
