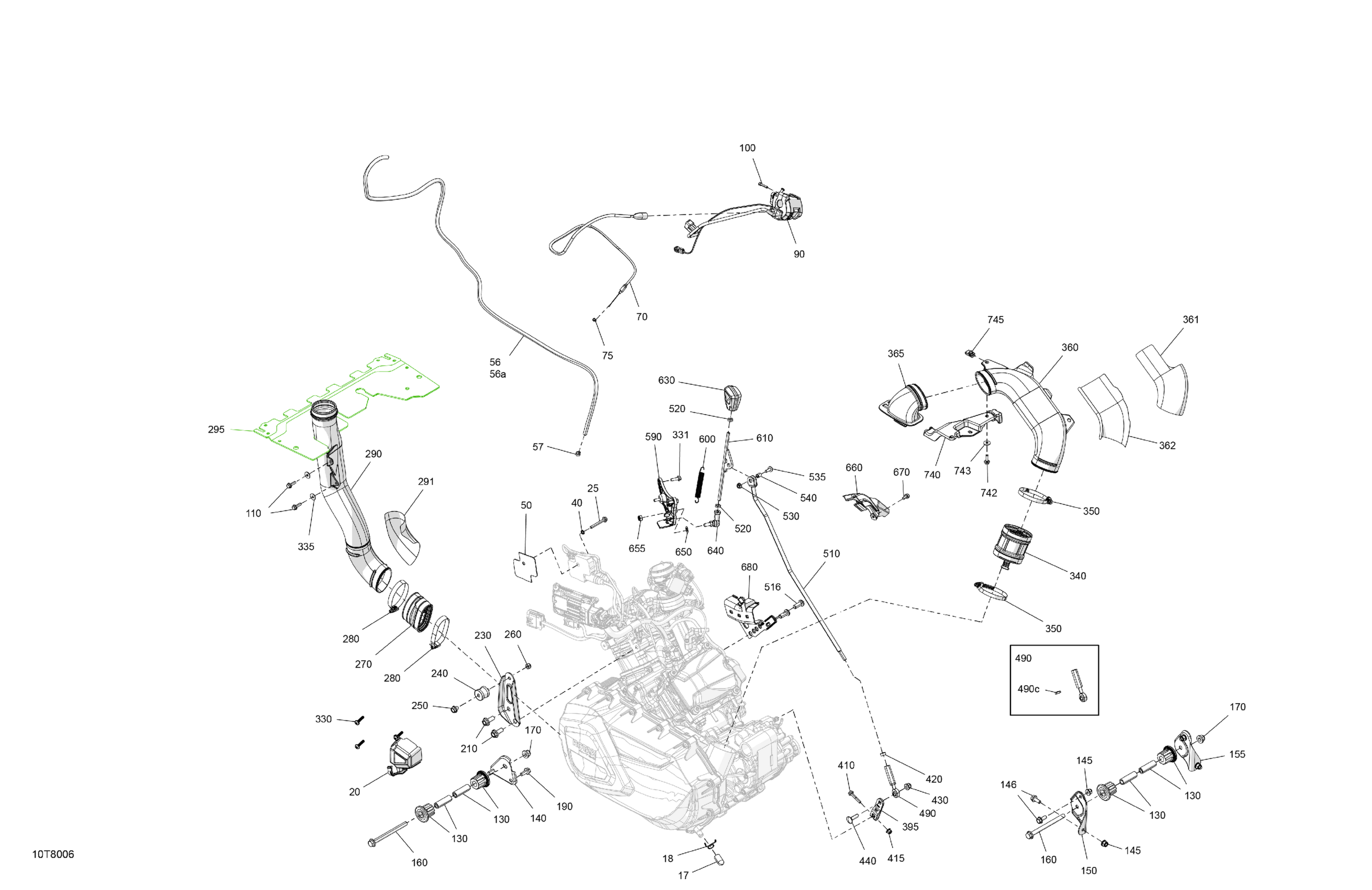

Can-Am OUTLANDER - 4X4 - North Edition - 650 EFI - 5PJA - Bright White, 2018 Engine - System Diagram

#

Description
Price

17

Plug

707001185

$1.15

18

Retainer Clip

707800506

$12.63

20

Cover

707000945

$6.67

25

Hex. Flange Screw M6 X 50

207665044

$4.12

40

External Serrated Lock Washer 6 mm

234461608

$1.15

50

Insulator Pad

710000073

$11.12

56

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

56a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

57

Clamp, Oetiker

293650195

$1.09

70

Throttle Cable

707000955

$13.24

75

Cable Guide

707000434

$11.60

90

Throttle Handle

707002141

$149.99

100

Socket Head Screw M5 X 25

205052588

$1.90

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

130

Vibration Damper

707001169

$42.99

140

Engine Support

707003319

$10.99

145

Hex. Elastic Flange Nut M8

233281416

$1.48

146

Hex. Flange Screw M8 X 20

207682046

$1.90

150

LH Rear Engine Bracket

707001191

$10.99

155

RH Rear Engine Bracket

707001192

$10.99

160

Hex. Flange Screw M10 X 125

230602546

$7.41

170

Hex. Flange Elastic Nut M10

233201436

$2.11

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

210

Hex. Flange Screw M10 X 25

207602544

$1.69

230

Upper Engine Bracket

707001256

$13.49

240

Rubber Isolator

707000949

$11.49

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

260

Hex. Elastic Stop Nut M8

232581414

$0.56

270

Flexibale Adaptor

707002585

$10.99

280

Norma Clamp

293650091

$11.12

290

CVT Air Inlet

707002067

$53.99

291

Heat Shield

707001654

$2.59

295

Upper Water Deflector

707001124

$22.49

330

Screw PT K60 X 30

250000949

$2.11

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

335

Flat Washer M6, Stainless

234062600

$0.77

340

CVT Air Outlet Adaptor

707001168

$15.99

350

Norma Gear Clamp

293650118

$13.16

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$10.49

362

Heat Shield

707001206

$10.49

365

CVT Cooling Duct Out

706600400

$54.99

395

Lever

707000911

$20.49

410

Hex. Flange Screw M6 X 35

207663544

$0.90

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Hex. Nut M8, LH Threads

250100144

$2.00

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Carriage Bolt M8 X 30

207783044

$2.11

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

490c

Hex. Jam Nut M8

232180600

$0.67

510

Shifter Rod

707002068

$33.99

516

Screw Socket M10 X 25 | Europe

205402556

$3.91

520

Hex. Jam Nut M8

232180600

$0.67

530

Hex. Flange Nut M6

233161414

$2.11

535

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

540

Bushing

293900019

$7.73

590

Lever Support

707003054

$6.67

600

Spring

707000577

$10.99

610

Shift Arm | Except Europe

707000840

$16.87

630

Lever Trim

707003211

$8.49

640

RH Ball Joint

707001959

$36.99

650

Washer

506151252

$3.17

655

Hex. Elastic Stop Nut M8

232581414

$0.56

660

Cover OPS

707000410

$13.24

670

Hex. Flange Screw M6 X 12

210261250

$1.90

680

Cable Support

707003053

$10.49

740

Air Outlet Support

707001262

$9.89

742

Hex. Flange Screw M6 X 20

207662044

$2.00

743

Flat Washer 6 mm

234062410

$0.77

745

Panel Nut M6 X 1.0

250100198

$2.11
