1970 Yamaha HT1 (HT1) Head Lamp & Speedometer Diagram

← All diagrams

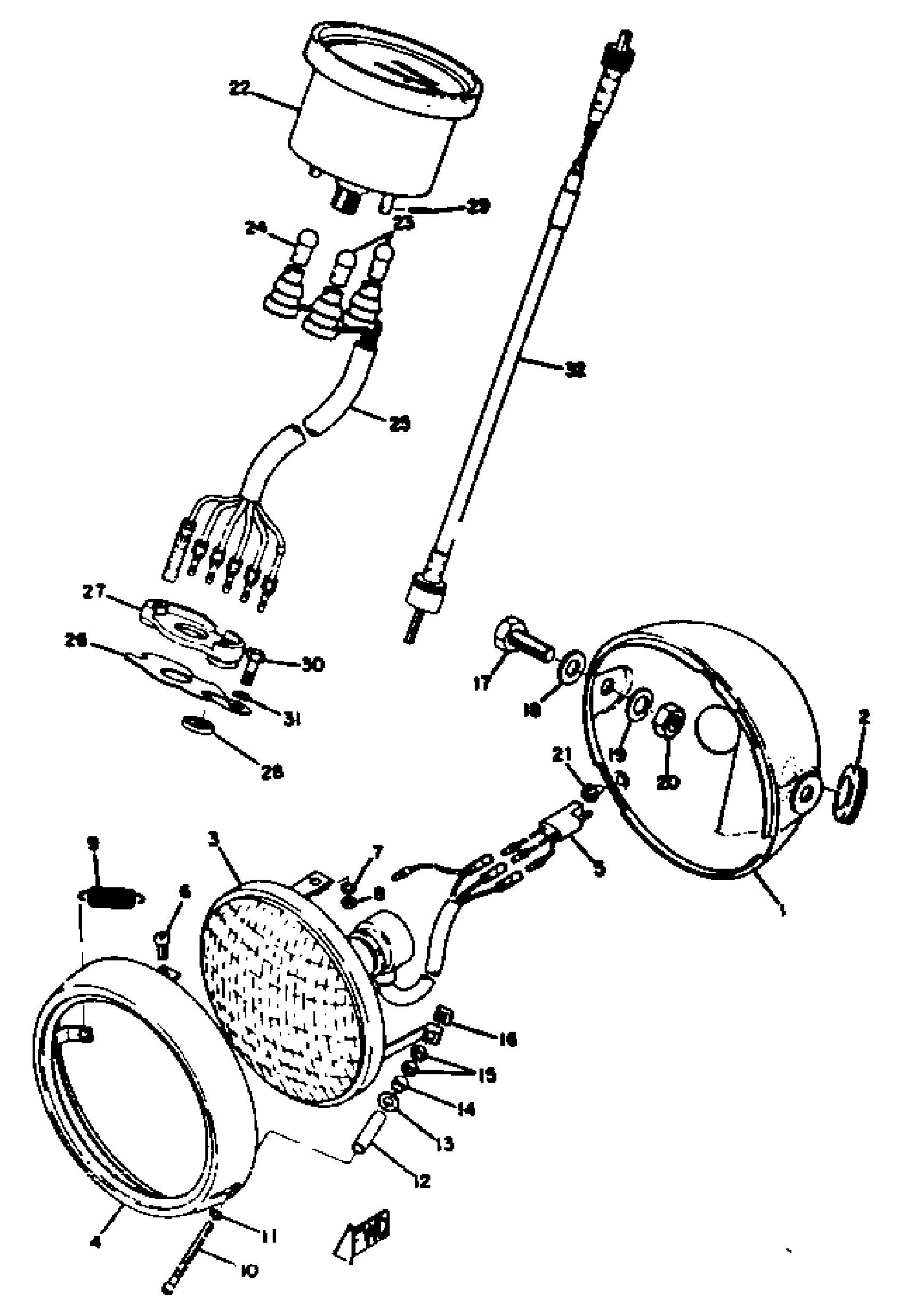

Find the part on the Head Lamp & Speedometer diagram for your 1970 Yamaha HT1 (HT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha HT1 (HT1) Head Lamp & Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(277-84130-60-34)

1
Out of stock

1

NO LONGER AVAILABLE

277-84130-60-52

1
Out of stock

2

GROMMET (L)

150-84153-00-00

1
Out of stock

3

. LENS ASY

277-84120-60-00

1
Out of stock

4

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

5

CORD, HEADLIGHT

(214-84159-61-00)

1
Out of stock

6

SCREW, PAN HEAD (E56)

98580-04010-00

1
Out of stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

8

NUT(6L4)

95380-04700-00

—
Out of stock

9

SPRING

(132-84335-60-00)

1
Out of stock

10

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

11

WASHER,SPECIAL

233-84127-60-00

1
Out of stock

12

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1
Out of stock

14

. SPACER

132-84328-60-00

1
Out of stock

15

NUT(6L4)

95380-04700-00

—
Out of stock

16

NUT, ADJUST

198-84334-60-00

—
Out of stock

17

BOLT (682)

97013-08025-00

—
Out of stock

18

WASHER, PLAIN

92990-08200-00

1
Out of stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

20

NUT(6L2)

95333-08600-00

—
Out of stock

21

SCREW, OVAL HEAD (1A0)

90152-05005-00

—
Out of stock

22

SPEEDOMETER ASSEMBLY

(277-83510-60-00)

1
Out of stock

22

SPEEDOMETER ASSEMBLY

(277-83510-61-00)

1
Out of stock

23

BULB,(6V3W)

122-83516-10-00

1
Out of stock

23

BULB,(6V3W)

122-83516-10-00

1
Out of stock

24

BULB (6V 1.7W)

388-83517-10-00

—
Out of stock

25

SOCKET CORD ASSEMBLY

(277-83520-60-00)

1
Out of stock

25

SOCKET CORD ASSEMBLY

(277-83520-61-00)

1
Out of stock

26

BRACKET, METER

(276-83519-00-33)

1
Out of stock

26

BRACKET, METER

(276-83519-01-33)

1
Out of stock

27

DAMPER

237-83523-00-00

—
Out of stock

28

WASHER 214835240000

90209-05029-00

—
Out of stock

29

CLIP (156-83525-00)

90468-10050-00

—
Out of stock

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

31

WASHER, SPRING

92995-06100-00

1
Out of stock

32

SPEEDOMETER CABLE ASSY

336-83550-02-00

1
Out of stock
