1970 Yamaha HT1 (HT1) Handle & Wire Diagram

← All diagrams

Find the part on the Handle & Wire diagram for your 1970 Yamaha HT1 (HT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

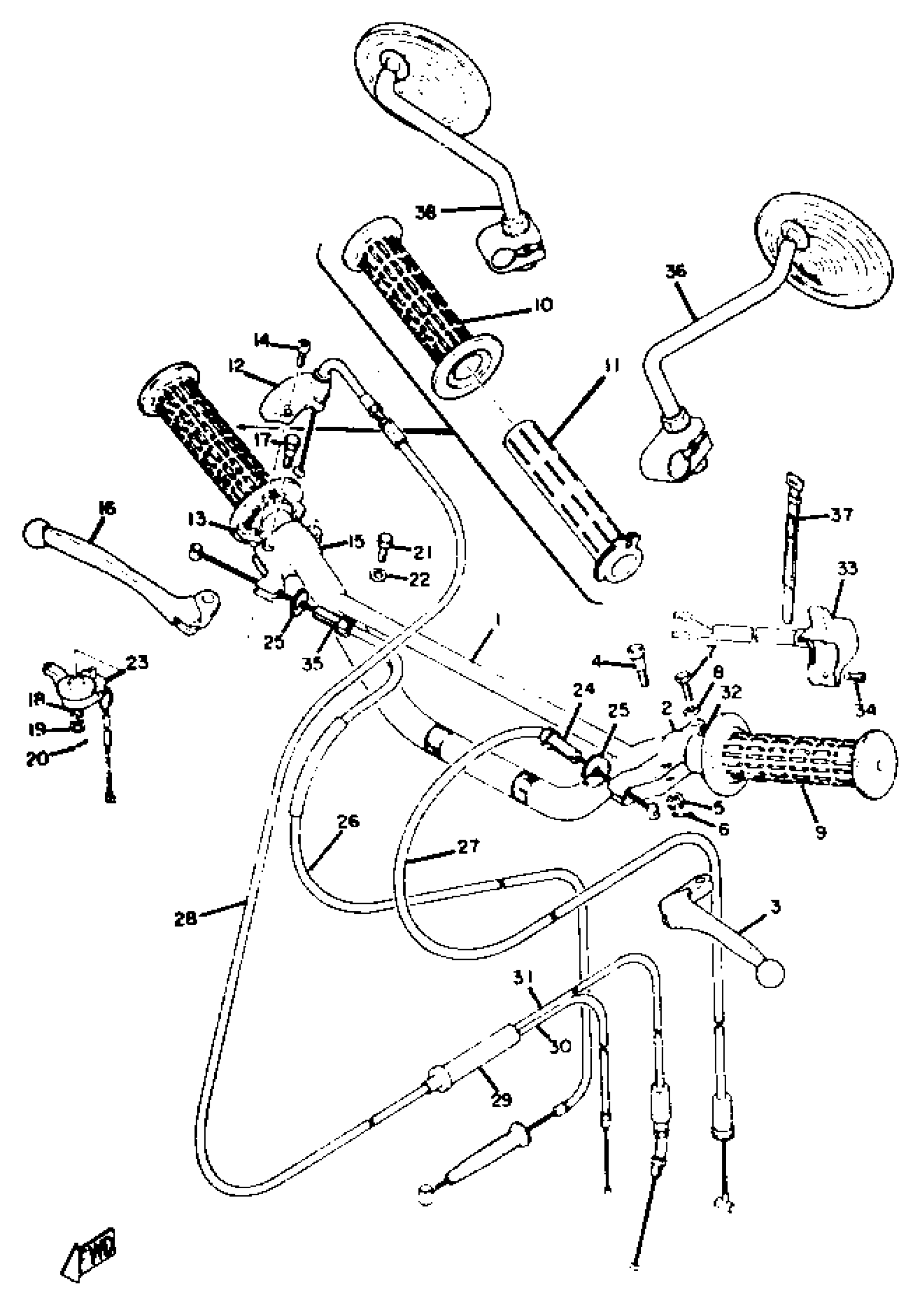

1970 Yamaha HT1 (HT1) Handle & Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY 1

214-82910-07-00

1
Out of stock

1

HANDLEBAR

438-26111-00-00

1
Out of stock

2

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

2

LEVER HOLDER ASSY 2

233-82920-32-00

1
Out of stock

3

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

4

. SCREW, LVR FITTING

214-83915-00-00

1
Out of stock

5

. NUT, SLOTTED

95301-06900-00

1
Out of stock

6

. PIN, COTTER

91401-12018-00

1
Out of stock

7

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

GRIP LH

214-26241-00-00

1
Out of stock

10

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

11

TUBE, GUIDE

214-26243-00-00

1

$39.75

In stock

12

CAP, GRIP UPPER

214-26281-01-00

1
Out of stock

13

CAP, GRIP LOWER

214-26282-01-00

1
Out of stock

14

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

15

HOLDER, LEVER (R.H)

233-82921-31-00

—

$58.60

In stock

16

LEVER(R.H)

233-83922-30-00

—

$19.29

In stock

17

. BOLT

90109-05197-00

1
Out of stock

18

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

19

NUT, SLTED

95307-05900-00

1
Out of stock

20

. PIN, COTTER

91401-12018-00

1
Out of stock

21

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

FRONT STOP SWITCH ASSY

232-83980-30-00

—

$68.85

In stock

24

BOLT

90123-08002-00

—

$8.93

In stock

25

NUT

90179-08030-00

—

$3.78

In stock

26

CABLE, BRAKE

276-26341-00-00

1
Out of stock

27

WIRE, CLUTCH

497-26335-00-00

—

$31.14

In stock

28

CABLE, THROTTLE 1

276-26311-00-00

1
Out of stock

29

CONNECTOR, CABLE

214-26261-01-00

—

$10.29

In stock

30

CABLE, THROTTLE 2

248-26312-00-00

1
Out of stock

30

CABLE, THROTTLE 2

276-26312-00-00

1
Out of stock

31

CABLE, PUMP

248-26321-00-00

1
Out of stock

32

HOLDER, HANDLE SWCH

214-83974-00-00

1
Out of stock

33

SWITCH, HANDLE 2

214-83975-09-00

1
Out of stock

34

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

35

BOLT

90123-08002-00

—

$8.93

In stock

36

BACK MIRROR ASSEMBLY L

(257-26290-10-00)

1
Out of stock

37

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

38

MIRROR ASSEMBLY

(257-26290-00-00)

1
Out of stock
