1970 Yamaha HS1 (HS1) Rear Wheel Diagram

← All diagrams

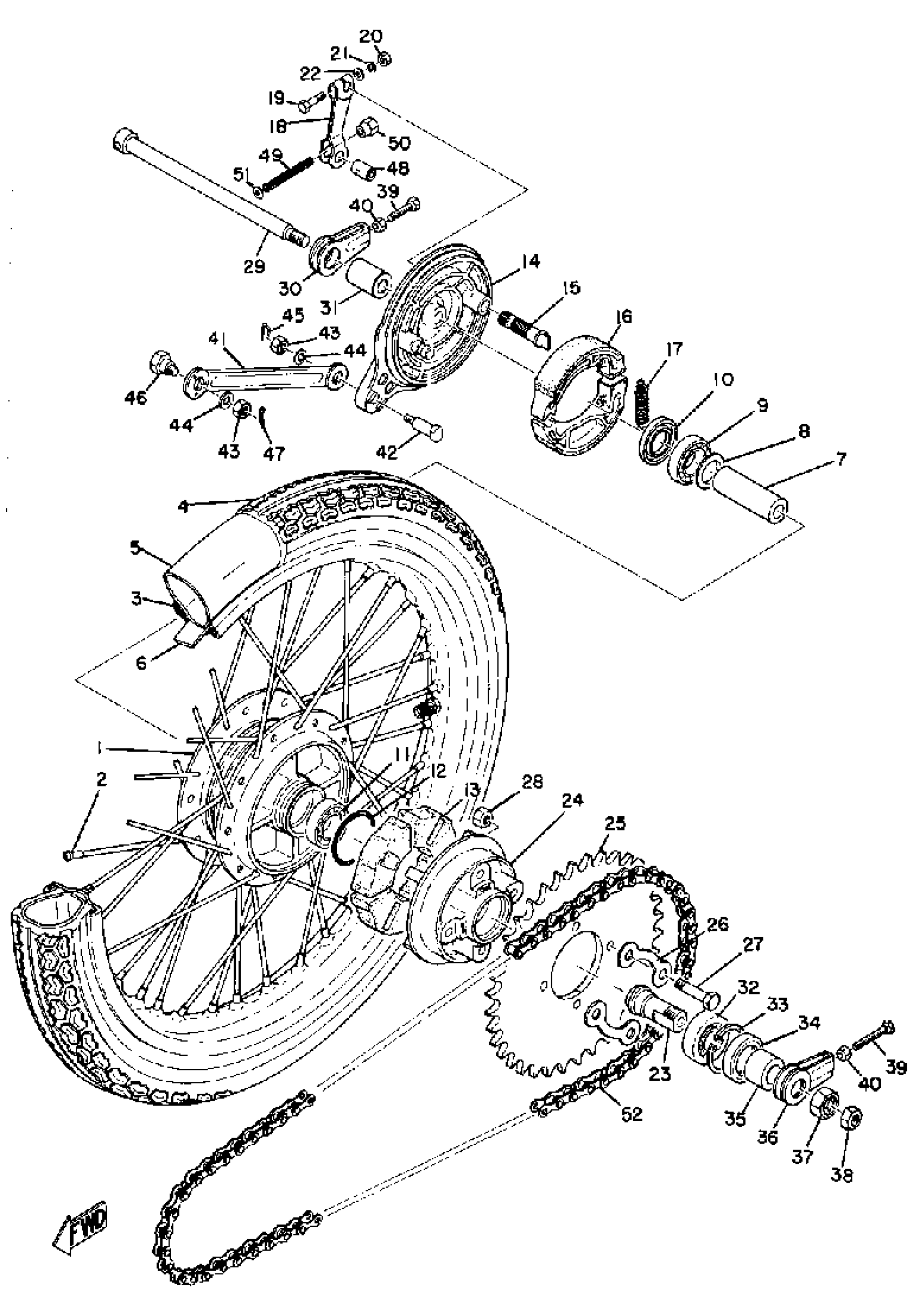

Find the part on the Rear Wheel diagram for your 1970 Yamaha HS1 (HS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha HS1 (HS1) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(132-25311-00-38)

1
Out of stock

1

JOINT, CHAIN (29A)

94680-52001-00

1

$2.77

In stock

2

SPOKE SET, REAR

(164-25304-00-00)

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

TIRE REAR (164)

(94125-18351-00)

1
Out of stock

5

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-12145-00

1

$17.22

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BRG.

93306-30101-00

1

$31.58

In stock

10

OIL SEAL (21X37X7-102)

93104-21016-00

1
Out of stock

11

BEARING

93306-30102-00

1
Out of stock

12

O-RING (102)

93210-41041-00

1

$5.86

In stock

13

DAMPER, CLUTCH

304-25364-01-00

1

$21.12

In stock

14

BRAKE SHOE PLT ASSEMBLY

(339-25320-10-00)

1
Out of stock

15

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

16

BRAKE SHOE KIT

4KN-W253E-11-00

—

$22.40

In stock

17

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

18

LEVER, CAM SHAFT

122-25355-00-00

—
Out of stock

19

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

SHAFT, SPROCKET

167-25387-00-00

—

$47.57

In stock

24

CLUTCH, HUB

296-25366-01-33

—
Out of stock

25

SPROCKET, DRIVN 40T

(122-25440-11-33)

1
Out of stock

26

WASHER

4AW-25412-00-00

—

$4.24

In stock

27

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

28

NUT(6L2)

95333-08600-00

—

$3.20

In stock

29

AXLE, WHEEL

(241-25381-01-00)

1
Out of stock

30

PULLER, CHAIN

241-25389-10-00

—

$32.18

In stock

31

COLLAR 195253830000

90387-12102-00

—
Out of stock

32

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

33

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

34

OIL SEAL (30X42X8-102)

93106-30004-00

—

$10.98

In stock

35

COLLAR 167253860000

90387-18144-00

—
Out of stock

36

PULLER, CHAIN(L.H)

241-25388-00-00

—

$30.49

In stock

37

NUT, HEXAGON

90170-18165-00

—

$7.82

In stock

38

—

$3.00

In stock

39

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

40

NUT(650)

95380-06700-00

—

$6.17

In stock

41

BAR, TENSION

27L-25371-00-00

—
Out of stock

42

BOLT 1022537300

90109-08183-00

—

$6.18

In stock

43

. NUT

95380-08700-00

1

$3.07

In stock

44

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

45

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

46

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

47

PIN, COTTER

91490-20025-00

—

$1.31

In stock

48

PIN 1562723700

90249-12008-00

—

$4.70

In stock

49

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

50

NUT (25K)

90179-06411-00

—

$5.10

In stock

51

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

52

420-106L

94580-52106-00

1
Out of stock
