1970 Yamaha HS1 (HS1) Front Wheel Diagram

← All diagrams

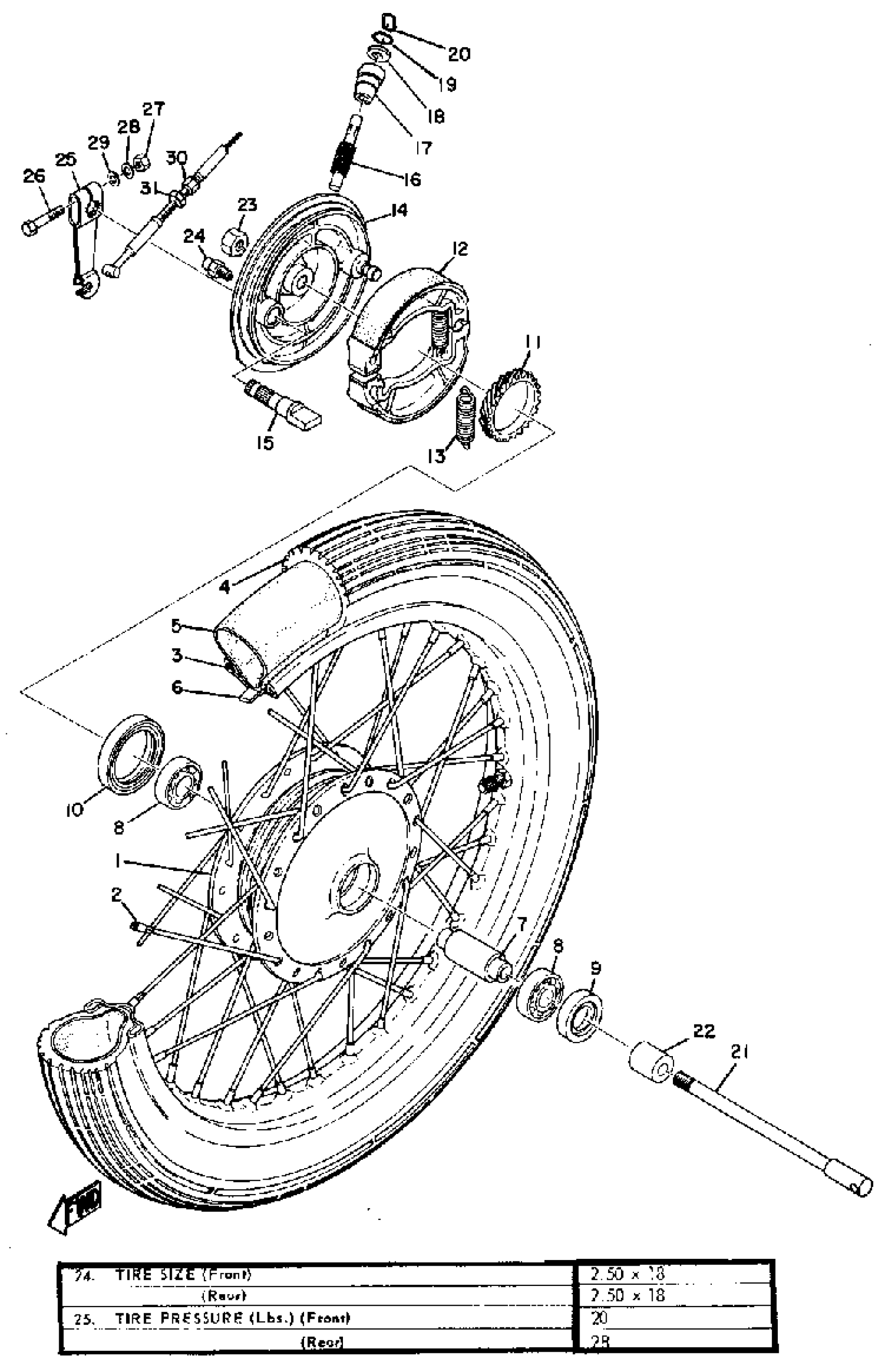

Find the part on the Front Wheel diagram for your 1970 Yamaha HS1 (HS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha HS1 (HS1) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(102-25111-01-38)

1
Out of stock

2

SPOKE SET, FRONT

(164-25104-00-00)

1
Out of stock

3

RIM 1.40X18

(94414-18006-00)

1
Out of stock

4

250X18 YOKO Y506

(94125-18311-00)

1
Out of stock

5

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER, BEARING

(102-25117-00-00)

1
Out of stock

8

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

9

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

10

OIL SEAL, OS-TYPE

93107-42001-00

1
Out of stock

11

GEAR, DRIVE

(164-25135-00-00)

1
Out of stock

12

BRAKE SHOE KIT

4KN-W253E-11-00

1

$22.40

In stock

13

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

14

PLATE, BRAKE SHOE

122-25121-02-38

1
Out of stock

15

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

16

GEAR, METER

(164-25138-00-00)

1
Out of stock

17

BUSHING

109-25136-00-00

—

$8.78

In stock

18

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

19

O-RING (26H)

93210-14579-00

—

$5.69

In stock

20

RING, STOP

102-25137-00-00

—
Out of stock

21

AXLE, WHEEL

99999-02188-00

1
Out of stock

22

COLLAR

90387-10079-00

1
Out of stock

23

NUT(3BM)

95314-10600-00

—

$1.74

In stock

24

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

25

LEVER, CAMSHAFT 1

109-25155-00-00

1
Out of stock

26

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

30

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

31

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock
