1970 Yamaha HS1 (HS1) Head Lamp, Speedometer & Tachometer Diagram

← All diagrams

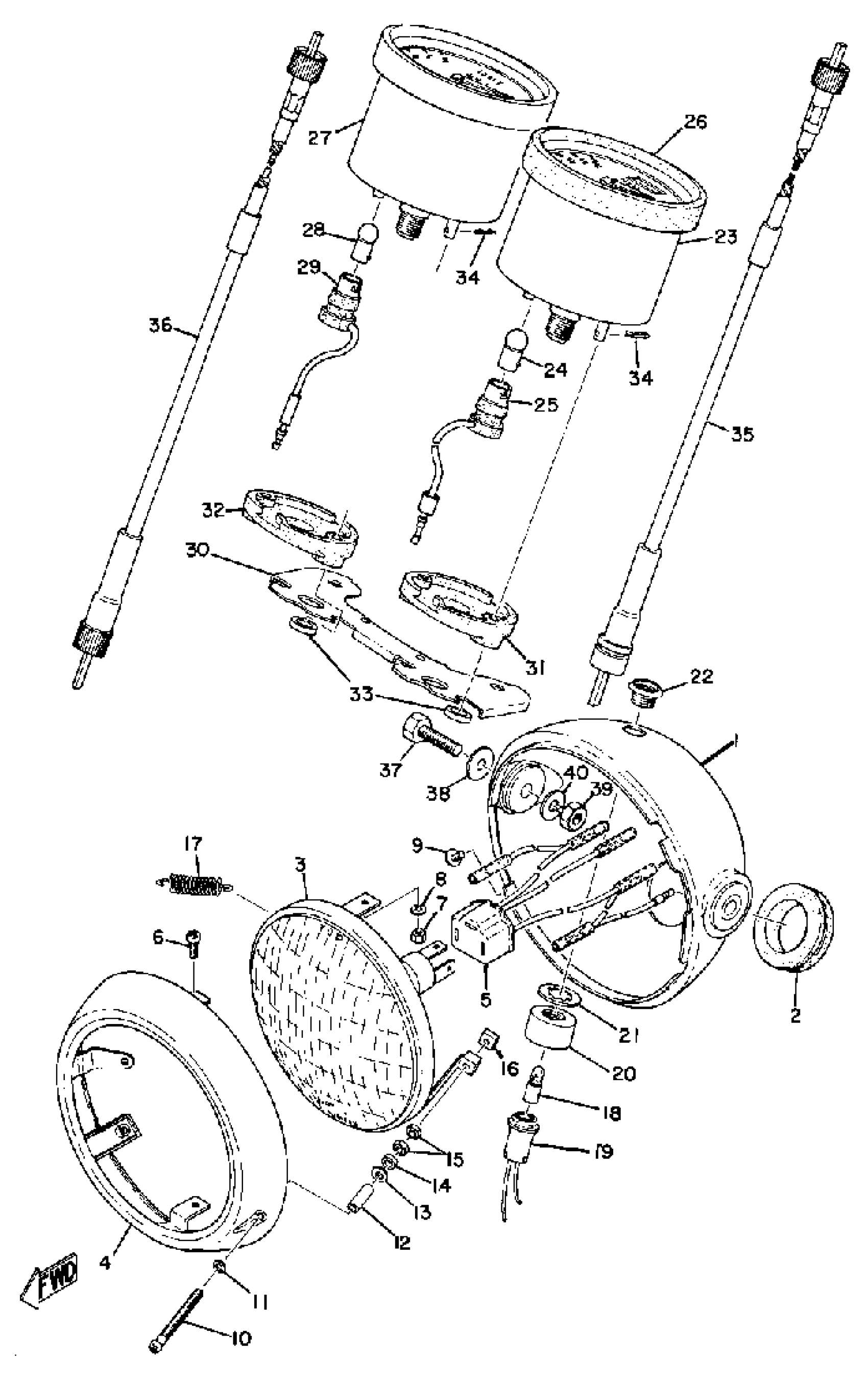

Find the part on the Head Lamp, Speedometer & Tachometer diagram for your 1970 Yamaha HS1 (HS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha HS1 (HS1) Head Lamp, Speedometer & Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(261-84330-60-26)

1
Out of stock

1

BODY ASSEMBLY

(261-84330-60-65)

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

2

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

3

LENS ASSEMBLY

261-84320-61-00

1
Out of stock

4

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

5

SOCKET, CORD

261-84312-61-00

1
Out of stock

6

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

7

NUT(6L4)

95380-04700-00

—

$5.62

In stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

9

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

10

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

11

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

12

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

14

. SPACER

132-84328-60-00

1
Out of stock

15

NUT(6L4)

95380-04700-00

—

$5.62

In stock

16

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

17

SPRING

(132-84335-60-00)

1
Out of stock

18

BULB

256-84347-00-00

1
Out of stock

19

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

20

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

21

WASHER, IN.TOOTH

(92901-12300-00)

1
Out of stock

22

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

23

SPEEDOMETER ASSEMBLY

(287-83510-40-00)

1
Out of stock

24

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

25

SOCKET CORD ASSEMBLY

(287-83520-40-00)

1
Out of stock

26

. DAMPER

336-83513-00-00

1
Out of stock

27

TACHOMETER ASSEMBLY

(287-83540-00-00)

1
Out of stock

28

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

29

SOCKET, METER

(287-83536-00-00)

1
Out of stock

30

BRACKET, METER

(252-83519-00-00)

1
Out of stock

31

DAMPER

214-83523-00-00

1
Out of stock

32

DAMPER

237-83523-00-00

—

$8.70

In stock

33

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

34

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

35

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock

36

TACHOMETER CABLE

447-83560-01-00

1
Out of stock

37

BOLT (682)

97013-08025-00

—

$6.80

In stock

38

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

39

NUT(6L2)

95333-08600-00

—

$3.20

In stock

40

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
