1970 Yamaha HS1 (HS1) Handle & Wire Diagram

← All diagrams

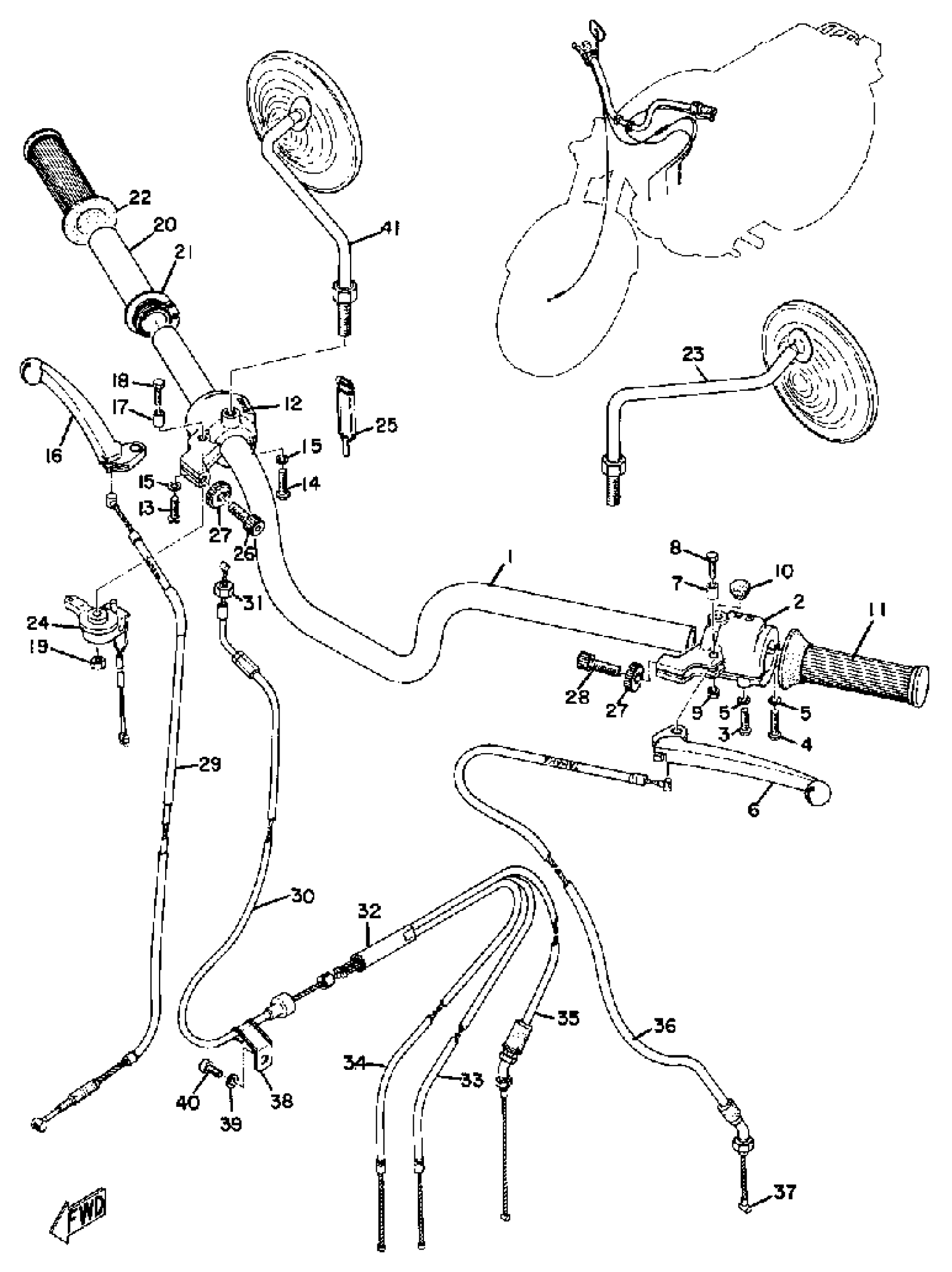

Find the part on the Handle & Wire diagram for your 1970 Yamaha HS1 (HS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha HS1 (HS1) Handle & Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(183-26111-10-00)

1
Out of stock

1

HANDLEBAR

(212-26111-00-00)

1
Out of stock

2

LEVER HOLDER ASSEMBLY 1

(218-82910-00-94)

1
Out of stock

3

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

4

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

LEVER L

150-83912-00-38

1
Out of stock

7

COLLAR, LEVER 1

(168-83913-00-00)

1
Out of stock

8

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

9

NUT(650)

95380-06700-00

1

$6.17

In stock

10

PLUG (17J)

90338-07124-00

1

$8.55

In stock

11

GRIP LH

341-26241-00-00

1
Out of stock

12

LEVER HOLDER ASSEMBLY 2

(218-82920-30-94)

1
Out of stock

13

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

14

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

LEVER R

(218-83922-30-38)

1
Out of stock

17

COLLAR, LEVER 1

(168-83913-00-00)

1
Out of stock

18

SCREW, LVR FITTING

(218-83915-30-00)

1
Out of stock

19

NUT(650)

95380-06700-00

1

$6.17

In stock

20

TUBE, GUIDE

1V1-26243-00-00

—

$14.08

In stock

21

RING, LEAF

150-26249-00-00

1
Out of stock

22

GRIP RH

(137-26242-60-00)

1
Out of stock

23

3MIRROR ASSEMBLY LH

266-26290-10-00

1
Out of stock

24

FRONT STOP SWITCH ASSY

232-83980-30-00

—

$68.85

In stock

25

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

26

BOLT

90123-08002-00

—

$8.93

In stock

27

NUT

90179-08030-00

—

$3.78

In stock

28

BOLT

90123-08002-00

—

$8.93

In stock

29

CABLE, BRAKE

(183-26341-00-00)

1
Out of stock

29

CABLE, BRAKE

(183-26341-10-00)

1
Out of stock

30

CABLE, THROTTLE 1

(183-26311-10-00)

1
Out of stock

30

CABLE, THROTTLE 1

(183-26311-10-00)

1
Out of stock

30

CABLE, THROTTLE 1

(241-26311-10-00)

1
Out of stock

31

NUT, HEXAGON

90170-10038-00

—
Out of stock

32

CYLINDER, WIRE

156-26261-01-00

1
Out of stock

33

CABLE, THROTTLE 3

(241-26313-00-00)

1
Out of stock

34

CABLE, THROTTLE 3

(241-26313-00-00)

1
Out of stock

35

CABLE, PUMP

(183-26321-00-00)

1
Out of stock

36

CABLE, CLUTCH

(241-26335-11-00)

1
Out of stock

36

CABLE, CLUTCH

(241-26335-11-00)

1
Out of stock

37

END, WIRE

164-26363-00-00

—
Out of stock

38

CLAMP

90465-06013-00

1
Out of stock

39

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

40

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

41

MIRROR ASSEMBLY RH

266-26290-00-00

1
Out of stock
