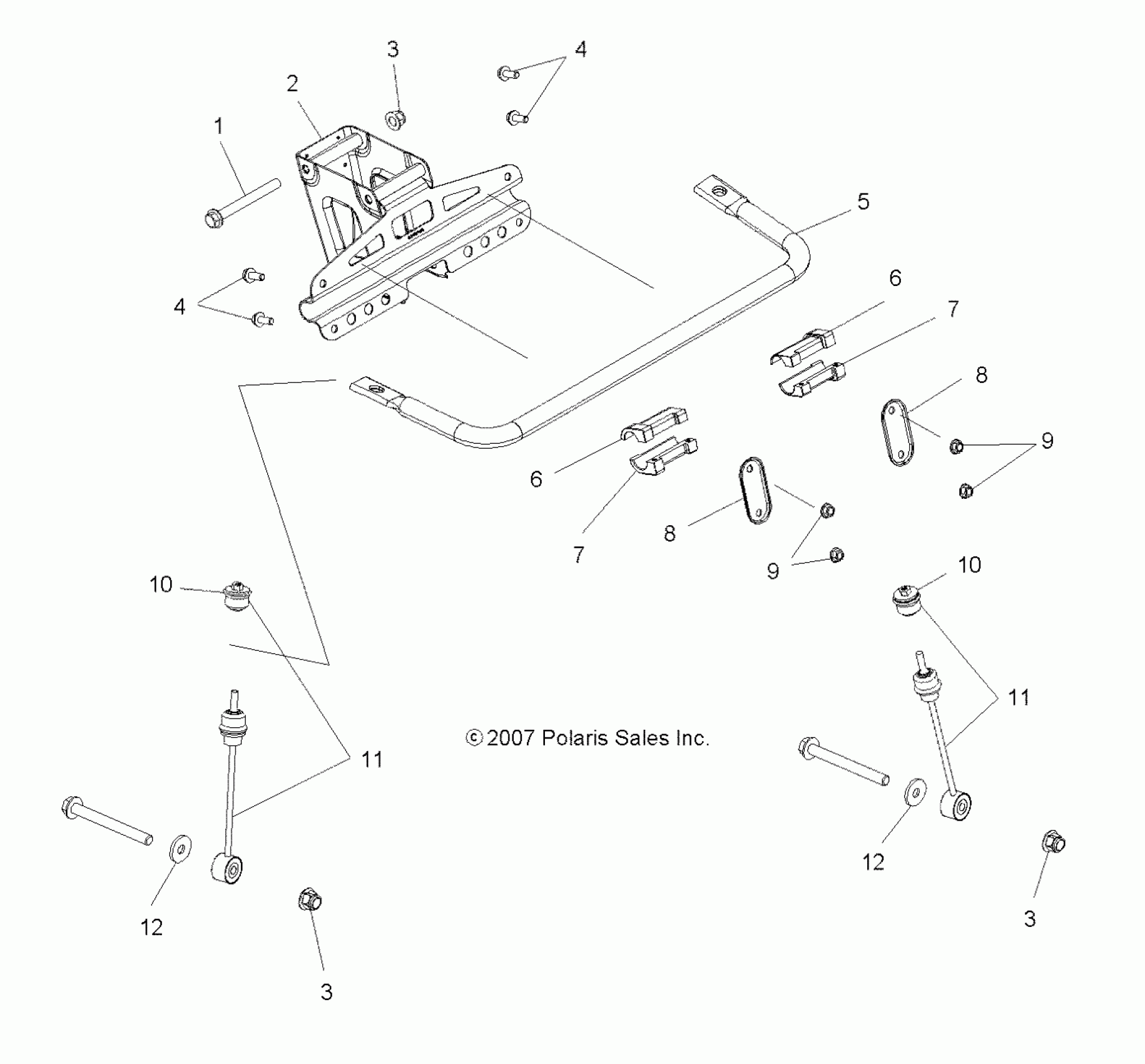

Polaris HAWKEYE 2X4 - A11LB27AA SUSPENSION, TORSION BAR - A11LB27AA (49ATVTORSION09HAWK) Diagram

#

Description
Price

1

Screw, Flange

7518526

$3.19

2

Mount, Stabilizer, Black

1015187-067

Unavailable

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

4

BOLT, FLANGE

7518702

$3.99

4

BOLT, FLANGE

7518702

$3.99

5

Bar, Stabilizer, Black

5335197-067

Unavailable

6

Bushing, Stabilizer

5436343

$12.79

6

Bushing, Stabilizer

5436343

$12.79

7

Bushing, Torsion Bar

5436344

$12.79

7

Bushing, Torsion Bar

5436344

$12.79

8

Plate, Retainer

5249464

$17.79

8

Plate, Retainer

5249464

$17.79

9

Nut, Flange

7547317

Unavailable

9

Nut, Flange

7547317

Unavailable

10

Bushing

5413295

Unavailable

10

Bushing

5413295

Unavailable

11

Linkage, Torsion Bar

5135941

$65.63

11

Linkage, Torsion Bar

5135941

$65.63

12

WASHER, FLAT

7555852

$2.39

12

WASHER, FLAT

7555852

$2.39
